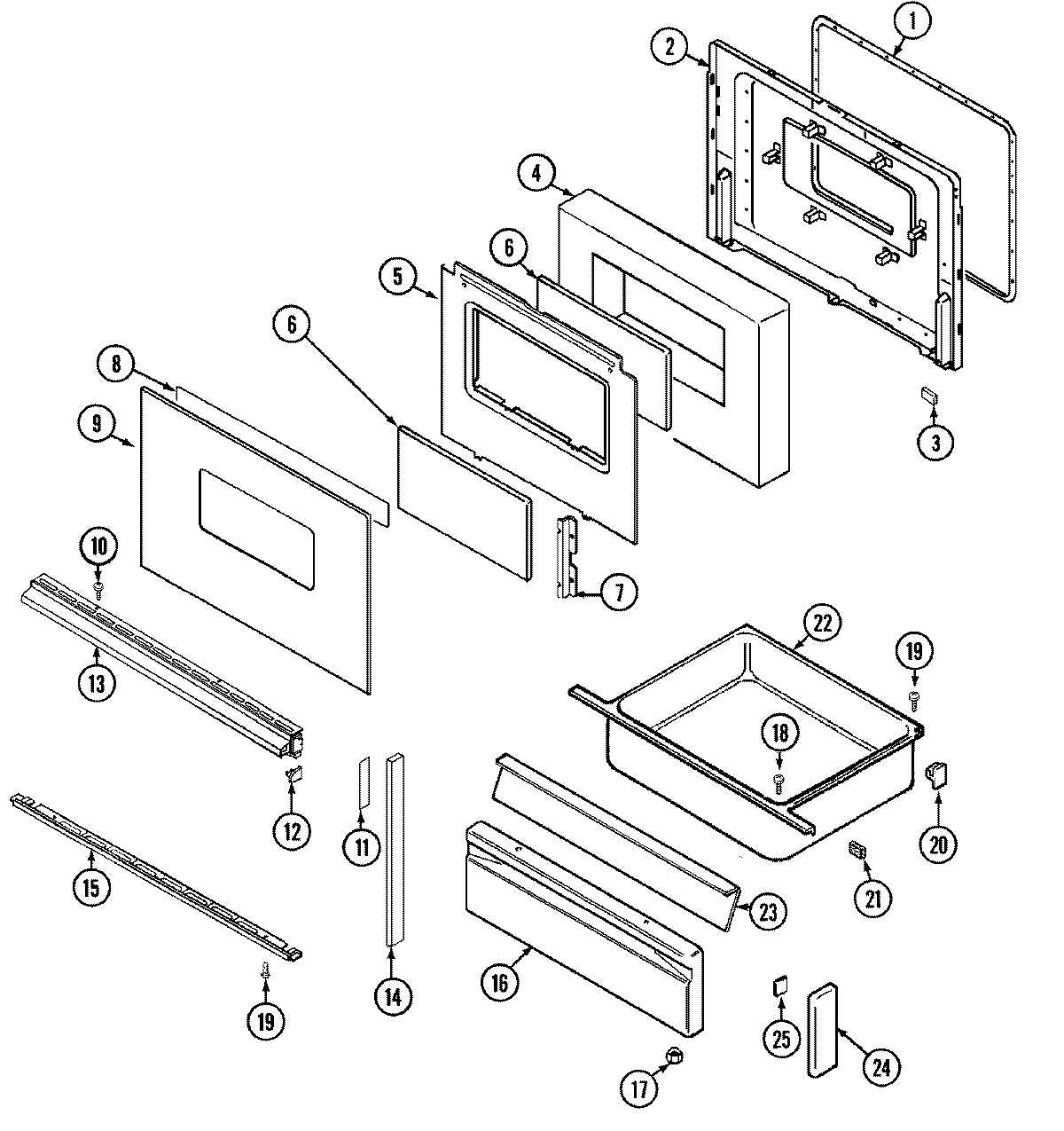

X3488VVVLT 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 7902P328-60
9	MAY 74003395
10	WP98008544 Whirlpool Screw Assembly
11	MAY 8270P093-60
12	MAY 74002738
12	MAY 74002739
13	MAY 74003396
13	MAY 7701P145-60
13	MAY 7701P105-60
14	MAY 74003458
14	MAY 74002342
15	MAY 74003397
15	MAY 7744P103-60
16	MAY 2416F038-62
17	WPW10131078 Whirlpool Nut Assembly
18	WP7101P072-60 Whirlpool Screw
20	WP8004P026-60 Whirlpool Support
21	MAY 7208P011-60
22	MAY 3405F018-80
23	LINING, DRAWER PANEL
23	SCREW
24	MAY 74002804
25	TAPE
