X3488XVALT 03 – DOOR/DRAWER
Written by
in

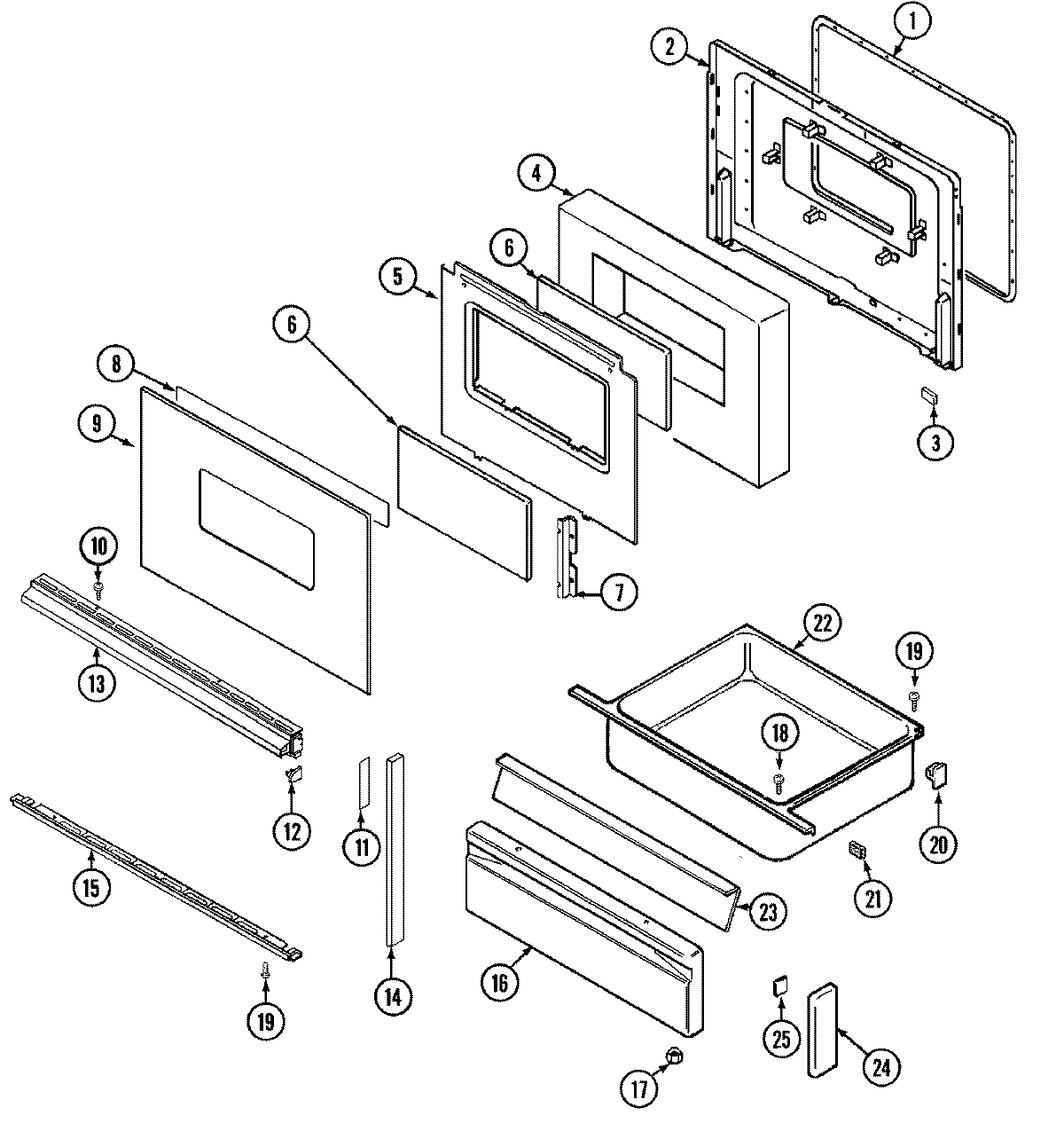

X3488XVALT 03 – DOOR/DRAWER
Products
Position
Product
1
GASKT-DOOR OVEN
2
MAY 2402W209-19
2
MAY 74003244
3
MAY 8010P085-60
4
MAY 74001842
5
MAY 74001843
6
MAY 74001841
7
MAY 74001844
8
TAPE, FOIL (3“ WIDE)
9
MAY 7902P321-60
10
WP98008545 Whirlpool Screw
11
MAY 8270P093-60
12
MAY 74002539
12
MAY 74002540
13
MAY 74003429
13
MAY 7701P103-60
13
MAY 7701P144-60
14
MAY 74002084
14
MAY 74003430
15
MAY 7744P105-60
15
MAY 74003432
16
MAY 2416F038-65
17
WPW10131078 Whirlpool Nut Assembly
18
WP7101P072-60 Whirlpool Screw
20
WP8004P026-60 Whirlpool Support
21
MAY 7208P011-60
22
MAY 3405F018-80
23
LINING, DRAWER PANEL
23
SCREW
24
MAY 74002805
25
TAPE
←
