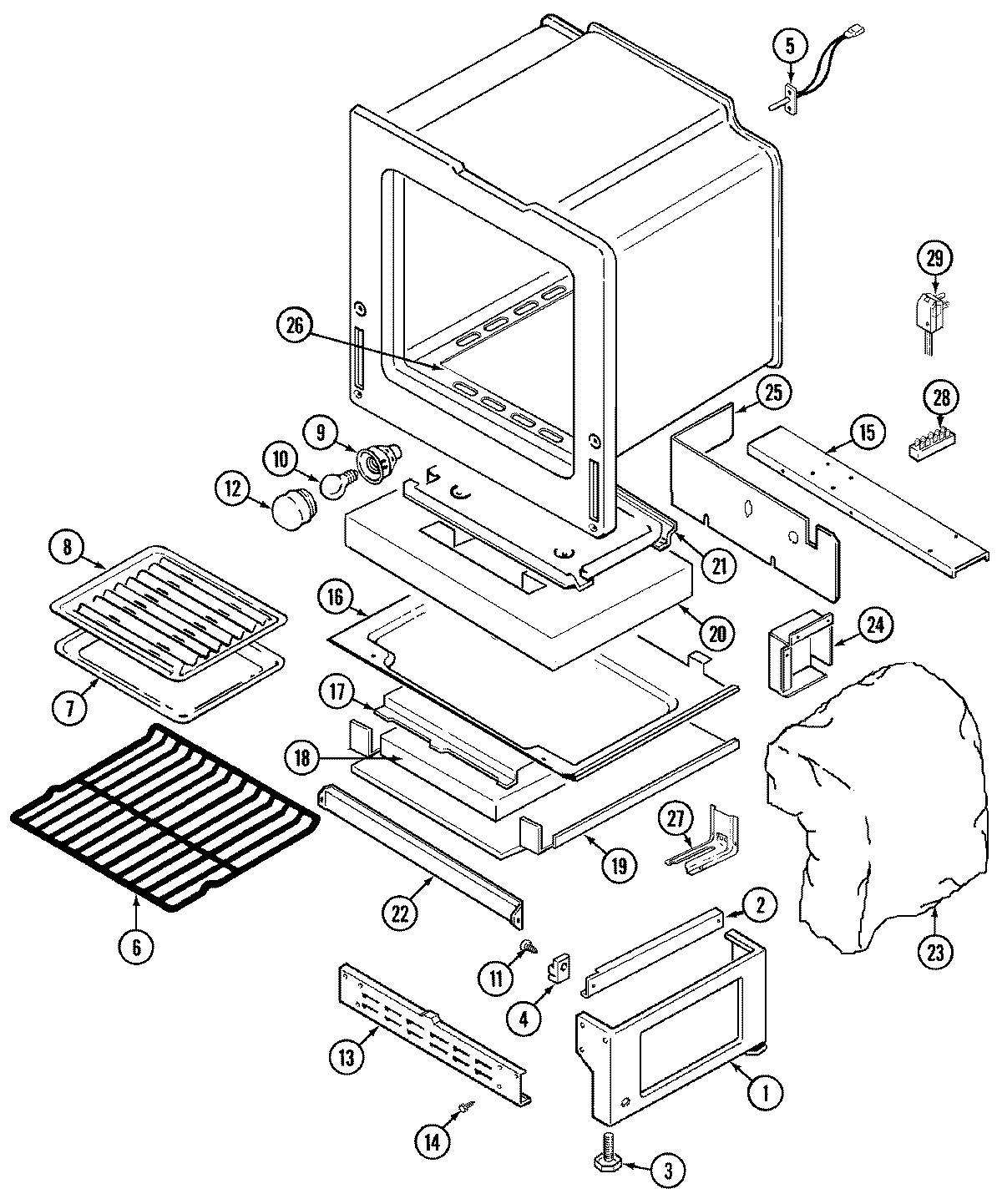

X3488XVALT 05 – OVEN/BASE

Products

Position	Product
1	MAY 74003003
1	MAY 74001439
2	MAY 3406F028-51
2	RUNNER, DRAWER
3	MAY 74001311
3	W11665456 Whirlpool Range Level Foot
4	MAY 74003566
4	WP488130 Whirlpool Air Conditioner Nut
4	MAY 74002312
5	MAY 7430P009-60
6	WPW10282492 Whirlpool Oven Rack
7	MAY Y3401F02019
8	MAY Y3413F01619
9	WP7407P182-60 Whirlpool Lamp
9	MAY 74003125
10	RANGE ONLY 40W 120V APPL BULB
11	MAY 74001449
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	WP9781049 Whirlpool Light Lens
13	MAY 4020F001-67
15	MAY 74002593
15	MAY 74001280
16	MAY 3804F112-51
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 4804F014-60
21	MAY 74001651
22	WP74003976 Whirlpool Screw
22	BAFFLE, OVEN FRONT
23	MAY 74003037
23	MAY 4804F036-60
23	MAY 74001800
24	MAY 3807F473-51
25	MAY 4005F429-51
25	SCREW
26	BAFFLE, OVEN BOTTOM
26	MAY 5504M004-19
27	MAY 7101P344-60
27	MAY 74002311
28	MAY 7401P037-60
29	MAY 7402P043-60
