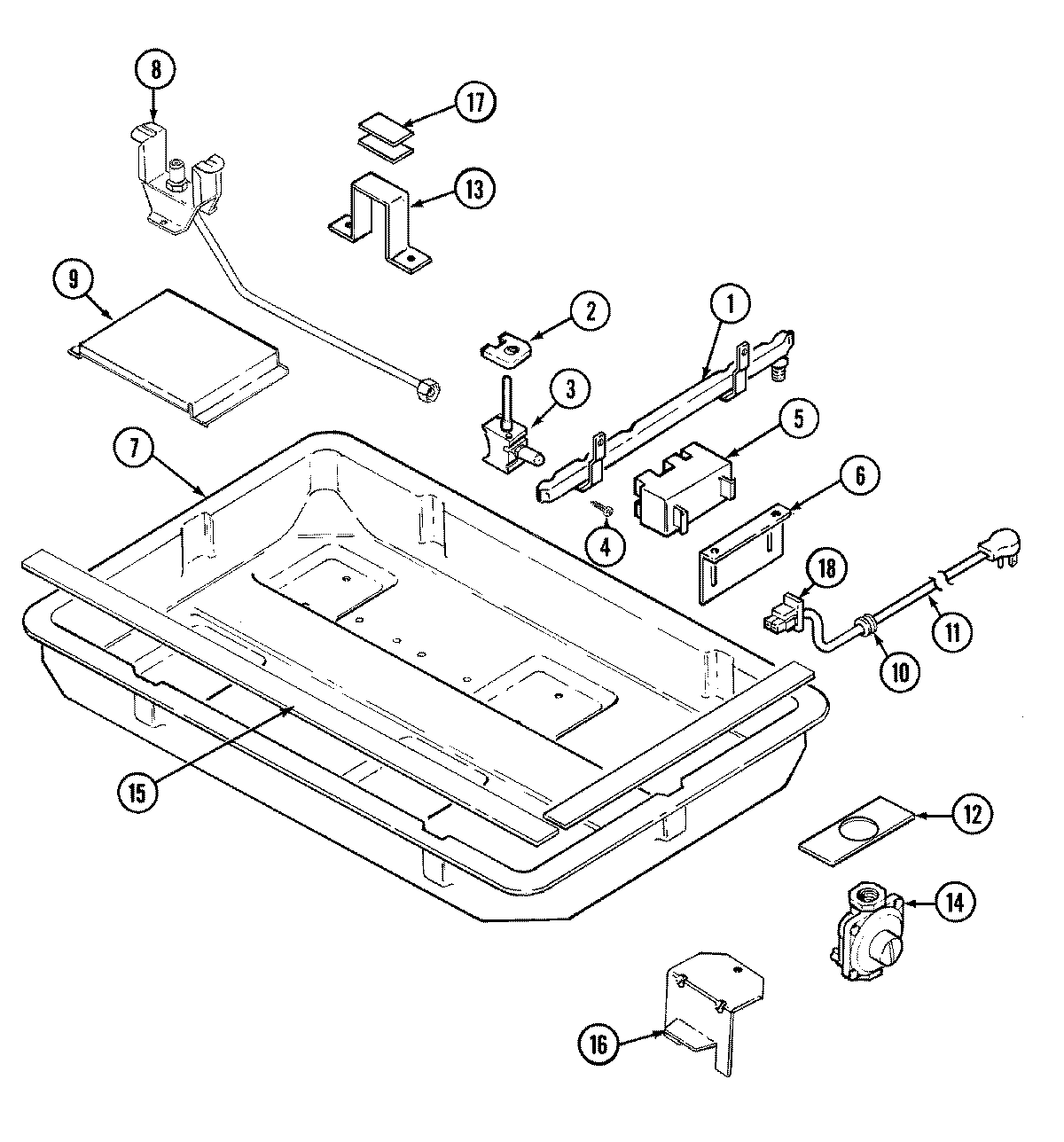

X8241RV 01 – GAS CONTROL/BODY

Products

Position	Product
NI	MAY 5125A234-60
1	MAY 74001348
2	WP7403P367-60 Whirlpool Switch
3	MAY 74001383
4	MAY 7101P044-60
5	MAY 7431P027-60
5	MAY 4005F427-51
6	MAY 3801F304-45
6	MAY 7101P290-60
7	MAY 74001208
8	MAY 74001369
8	MAY 74001370
8	MAY 74001371
8	MAY 74001372
9	MAY 3801F192-45
9	SCREW (10ABX1.0-ZN)
10	BUSHING, SNAP
11	MAY 7402P014-60
12	MAY 7208P019-60
14	W11170853 Whirlpool Regulator Assembly
15	MAY 8270P100-60
16	MAY 3801F298-45
17	MAY 12400021
18	MAY 7401P018-60
18	MAY 7401P017-60
