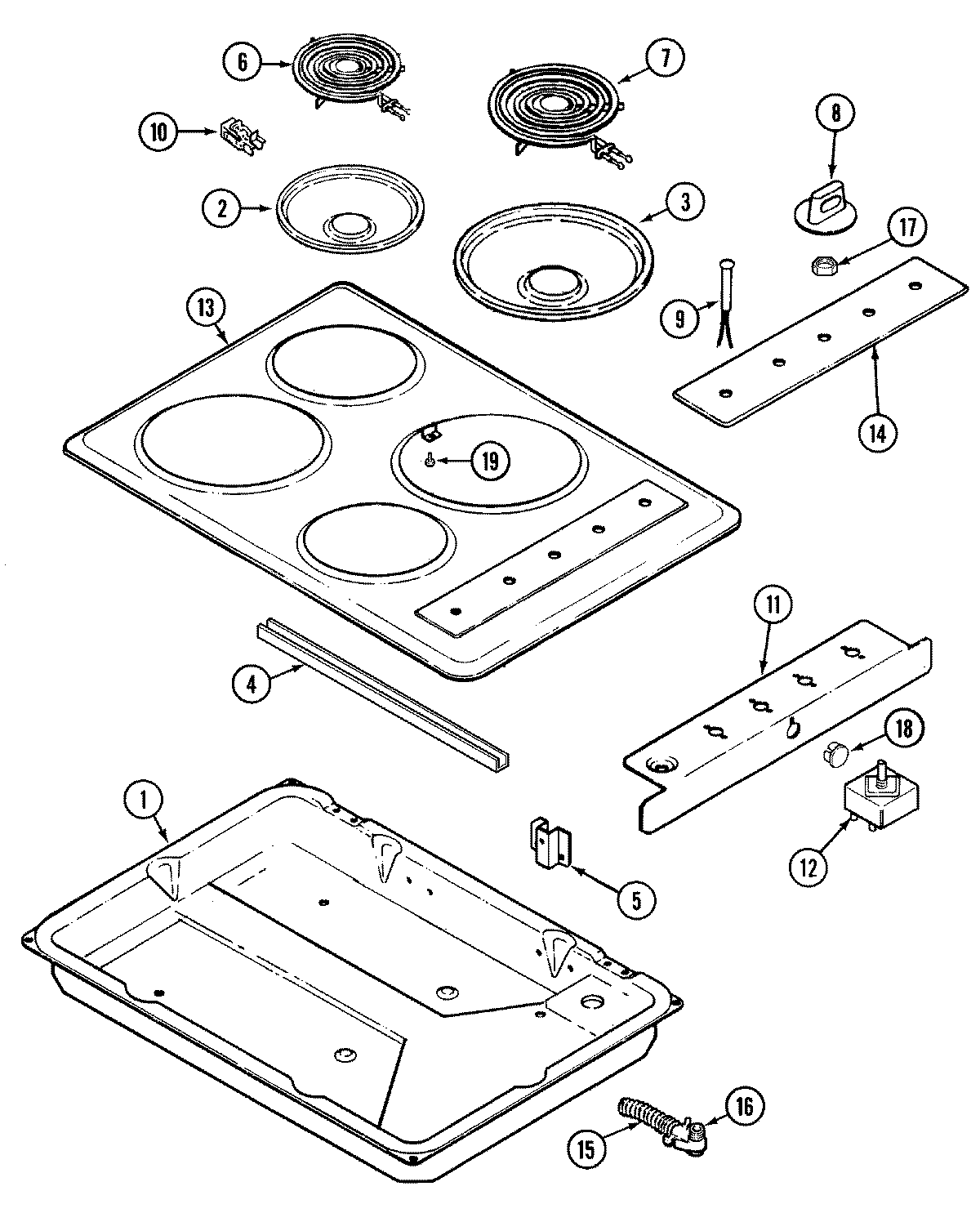

X8610RT 01 – TOP ASSEMBLY (RT)

Products

Position	Product
NI	MAY 74001593
NI	MAY 8112P086-60
1	BOTTOM, BURNER BOX
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	DRIP BOWL 8" W/HOLE CHROME
4	MAY 3802F070-80
5	BRACKET, MAIN TOP SUPPORT
5	MAY 7101P059-60
6	MAY Y04000032
7	MAY Y04000031
8	WP7737P026-60 Whirlpool Knob Switch
9	MAY 74001480
10	MAY 1430306K
11	MAY 3604F133-80
12	W10900107 Whirlpool Oven Surface Element Switch
13	MAY 74005102
14	MAY 74002810
15	MAY 3414F035-44
15	MAY 74001216
16	MAY 7417P004-60
16	MAY 3801F072-45
16	MAY 8018P001-60
17	MAY 7103P021-60
18	GROMMET
19	SCREW
