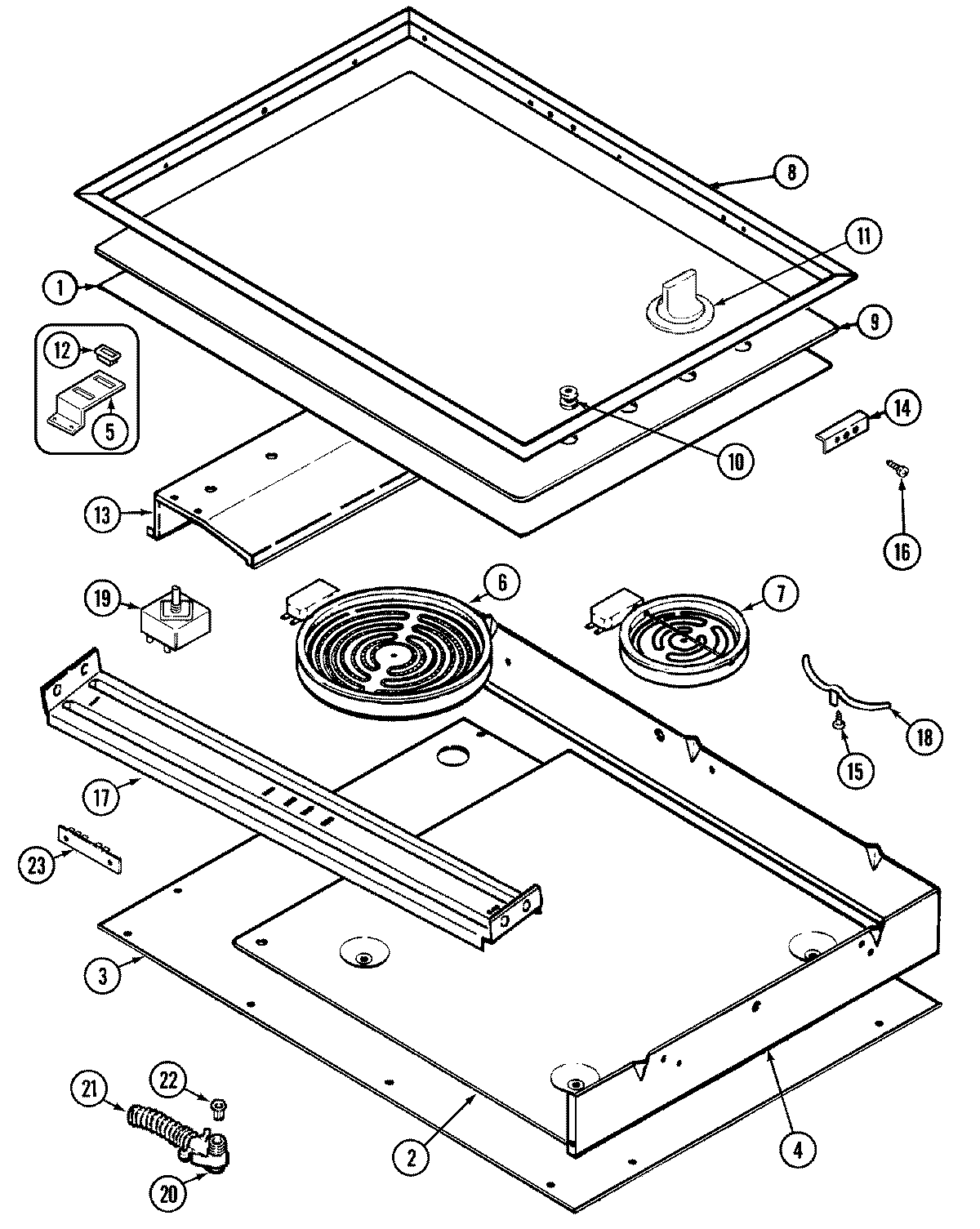

X8670RB 01 – TOP ASSEMBLY

Products

Position	Product
NI	WA906B Whirlpool Cooktop Glass Scraper
NI	MAY 8112P102-60
NI	MAY 8308P002-60
1	MAY 74001490
2	MAY 3601F173-51
3	MAY 7101P059-60
3	MAY 74001491
4	MAY 74001430
5	MAY 3801F313-45
6	MAY 12500040
6	W10823707 Whirlpool Range Radiant Surface Element 8"
7	MAY 12500041
7	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
8	MAY 7746P023-60
9	MAY 74001497
9	MAY 74002202
10	MAY 8008P033-60
11	WP7737P026-60 Whirlpool Knob Switch
12	MAY 7407P098-60
13	MAY 7118P004-60
13	MAY 7103P071-60
13	MAY 3605F175-45
14	MAY 74002256
15	SCREW
16	MAY 7101P058-60
17	MAY 74001513
18	MAY 8004P015-60
19	MAY 7403P267-60
19	MAY 7403P266-60
19	SCREW
19	SEAL, GASKET INF. SW.
20	MAY 7417P004-60
21	MAY 3801F072-45
21	MAY 7434P004-60
22	MAY 8008P017-60
23	MAY 7401P015-60
23	MAY 7719P068-60
