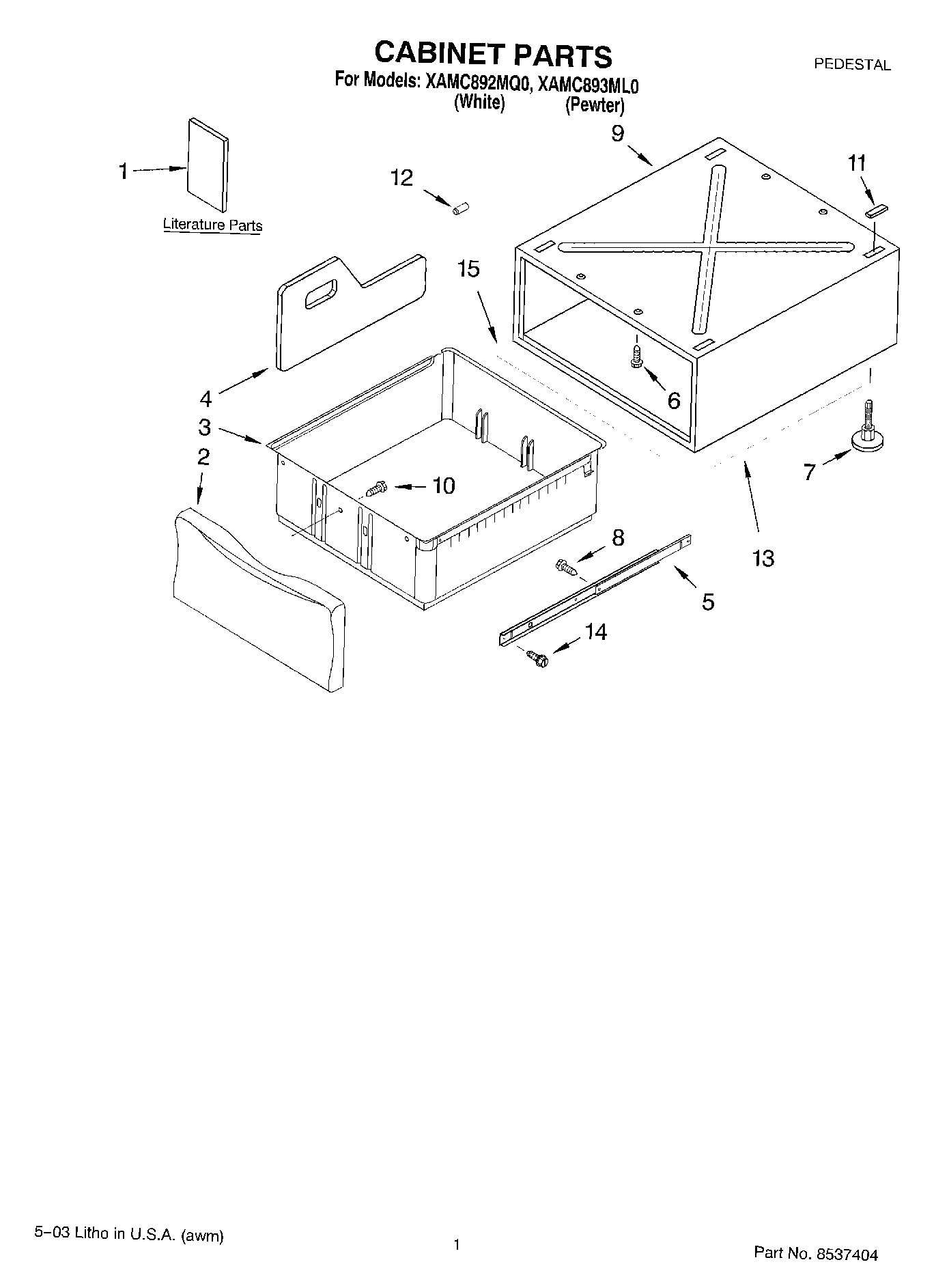

XAMC892MQ0 01 – CABINET PARTS

XAMC892MQ0 01 – CABINET PARTS

Written by

in

XAMC892MQ0 01 – CABINET PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
2Drawer Front Assembly (White)
2Drawer Front Assembly (Pewter)
3Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
4Divider, Drawer (Set Of 2) (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
5WP8578394 Whirlpool Slide Assembly
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
8WP3388228 Whirlpool Screw
9Cabinet (Not Serviced)
10WP1163283 Whirlpool Air Conditioner Screw
11Pad (4)
12W10491983 Whirlpool Tine Tip
13Edge Guard, Bottom (2)
143400618 Whirlpool Screw
15Edge Guard, Top
15PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
15WP4396174 Whirlpool Touch-Up Paint
15350930 Whirlpool White Spray Paint
1572017 Whirlpool Appliance Touch-Up Paint White
15350938 Whirlpool Spray Gun
15Optional Parts Not Included
