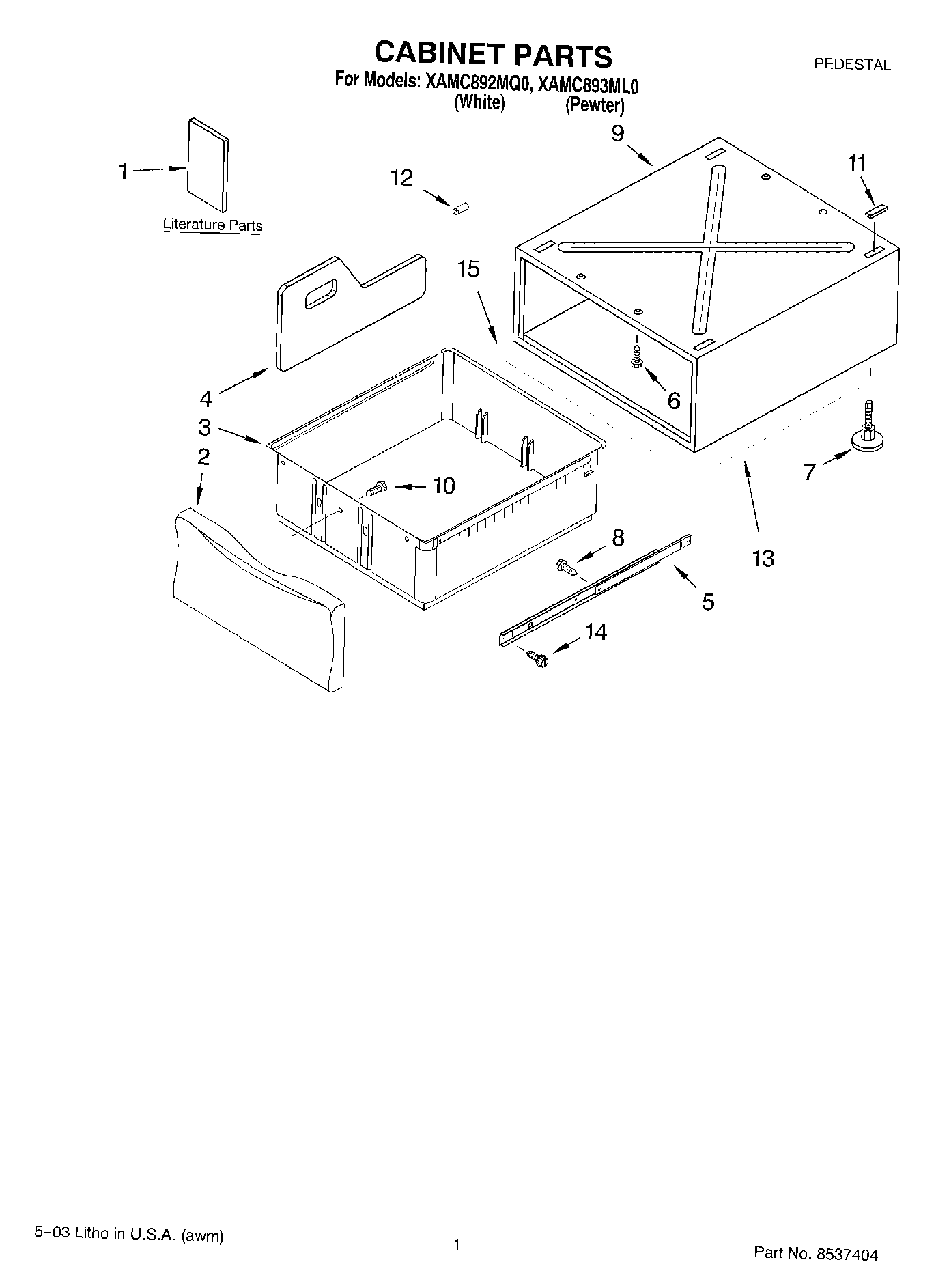

XAMC893ML0 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Installation Instructions)
2	Drawer Front Assembly (White)
2	Drawer Front Assembly (Pewter)
3	Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
4	Divider, Drawer (Set Of 2) (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP3388228 Whirlpool Screw
9	Cabinet (Not Serviced)
10	WP1163283 Whirlpool Air Conditioner Screw
11	Pad (4)
12	W10491983 Whirlpool Tine Tip
13	Edge Guard, Bottom (2)
14	3400618 Whirlpool Screw
15	Edge Guard, Top
15	PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
15	WP4396174 Whirlpool Touch-Up Paint
15	350930 Whirlpool White Spray Paint
15	72017 Whirlpool Appliance Touch-Up Paint White
15	350938 Whirlpool Spray Gun
15	Optional Parts Not Included
