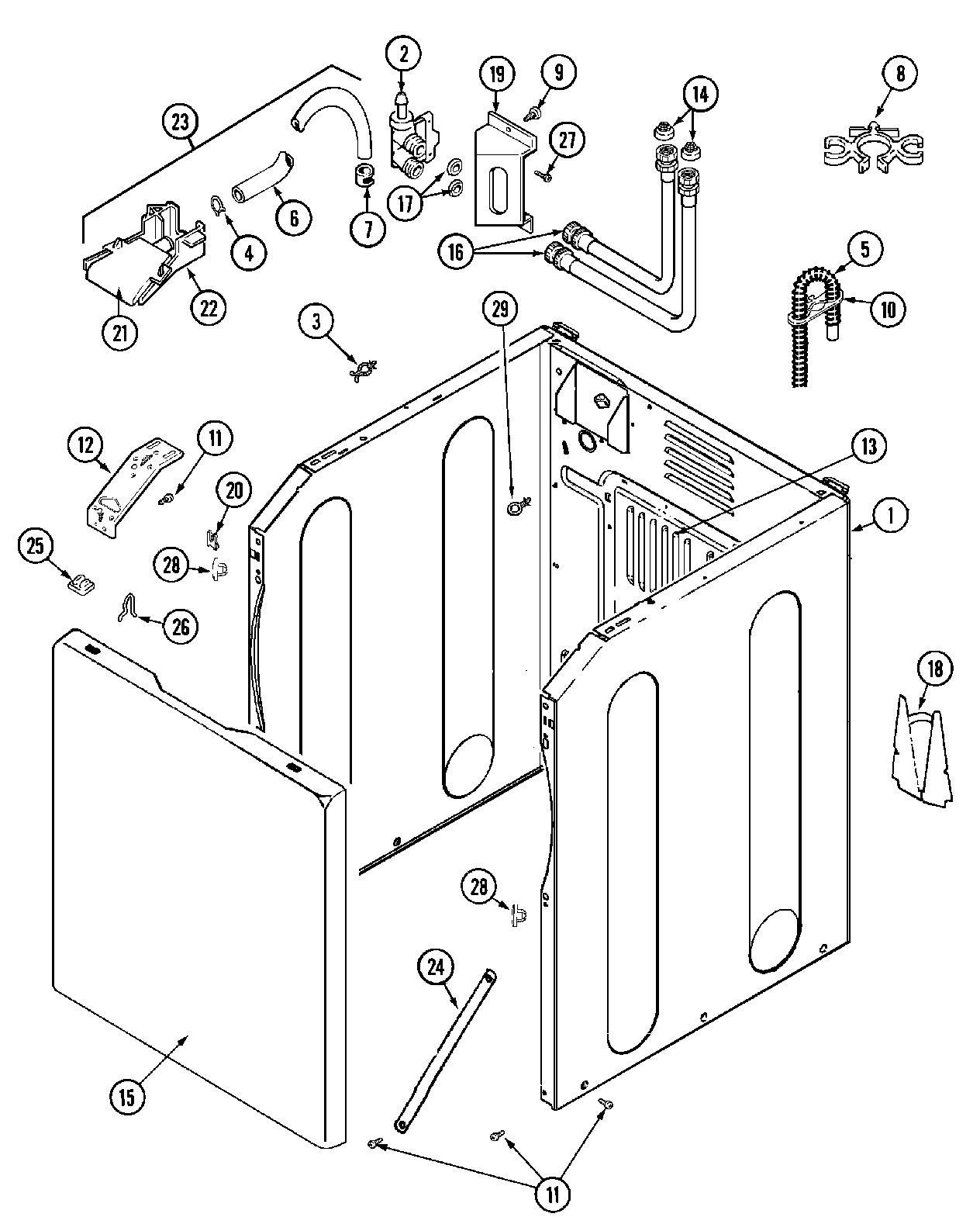

XAV13PRBWW 03 – CABINET

Products

Position	Product
002	MAY 22002707
003	MAY 315471
004	CLAMP, SPRING—-S
005	WP22003410 Whirlpool Drain Hose
005	76660 Whirlpool Syphon Break with Clamps
005	WP285655 Whirlpool Hose Clamp
006	MAY 22002761
007	WP596669 Whirlpool Hose Clamp
008	WP22002765 Whirlpool Hose Clip
009	SCREW, WATER VALVE BRACKET
010	MAY 22002701
011	W11573574 Whirlpool Screw
012	MAY 22002839
012	(RT)
013	MAY 22002092
014	MAY 200961
015	PANEL, FRONT (BISQ)
016	(COLD)
016	MAY 22002763
018	MAY 22002704
019	MAY 22002762
020	FASTENER, FRONT PANEL
021	MAY 22002759
022	MAY 22002760
023	MAY 22002722
024	MAY 22002767
025	MAY 22002013
026	WP25-7220 Whirlpool Cabinet Clip
027	SCREW, WATER VALVE
028	WP22002960 Whirlpool Washer Inlet Strainer
028	MAY 33002388
028	MAY Y22002702
028	CABLE TIE (HDWR.PKG.)
028	MAY Y013783
028	DOWEL PIN FOR HANDLE
029	MAY 22003086
