XB258DM3WW CONTROL PANEL

XB258DM3WW CONTROL PANEL

Written by

in

XB258DM3WW CONTROL PANEL

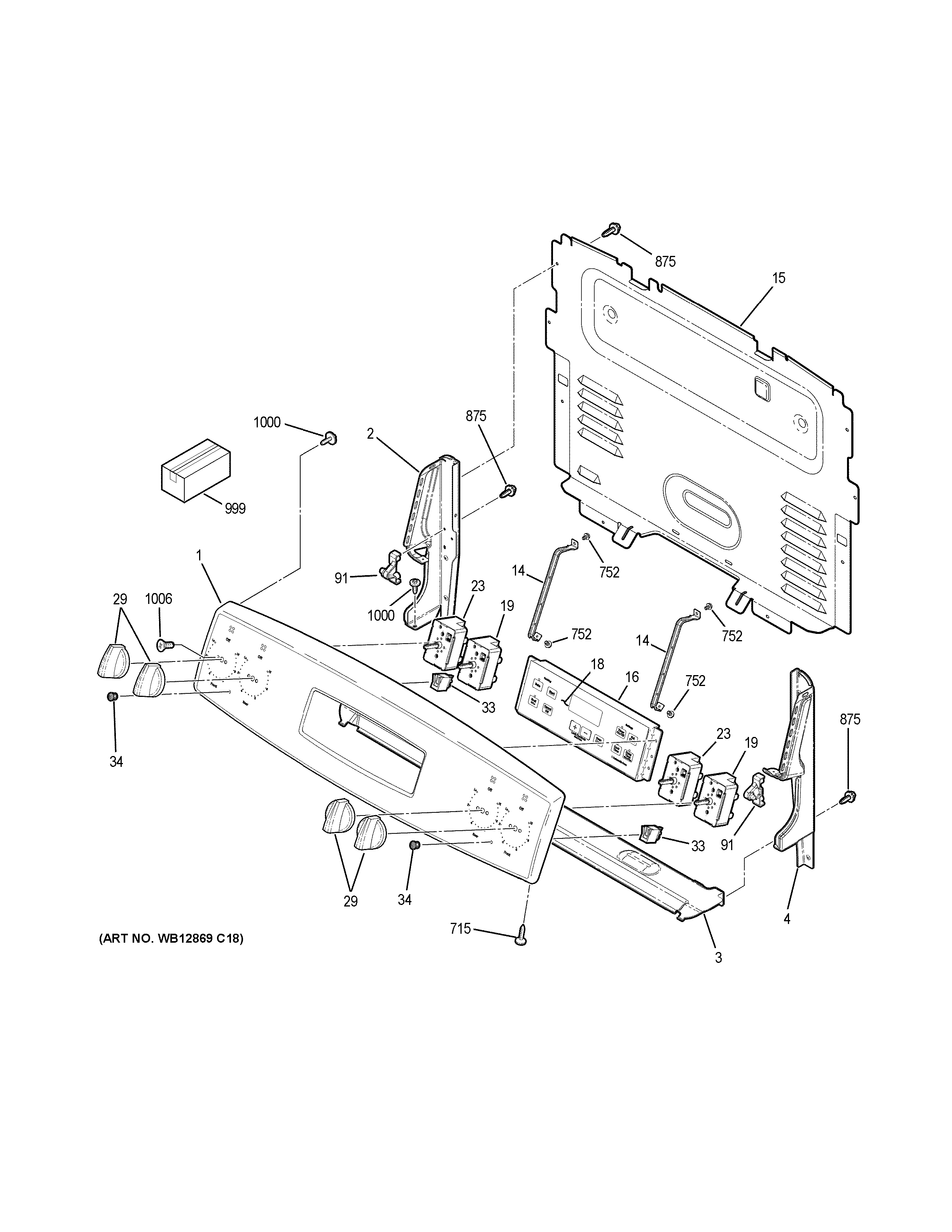

Products

PositionProduct
1LABEL WIRE DIAGRAM
1WB07X24025 GE Oven Trim & Bracket Assembly (White)
2WB07X27822 GE Oven End Plate Left (White)
3WB02X28994 GE Heat Shield
4WB07X27819 GE Oven End Plate RT (White)
14WB34X20080 GE Control Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16CONTROL OVEN TO9 (ELEC)
18WB27T11512 GE Oven Faceplate Graphics
19WB24T10025 SWITCH INFIN(2500W)
23WB24T10022 GE Oven Infinite Switch
29WB03T10344 GE Oven Infinite Knob
33WB25K10010 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
91WB10T10116 GE Range Top Hinge Pin
715WB1K58 GE Screw 8-18
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
999PM INSTRUCTIONS INSTALL
999PM MANUAL MINI & WD ASM
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM QUICK OWNERS MANUAL
1000WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
