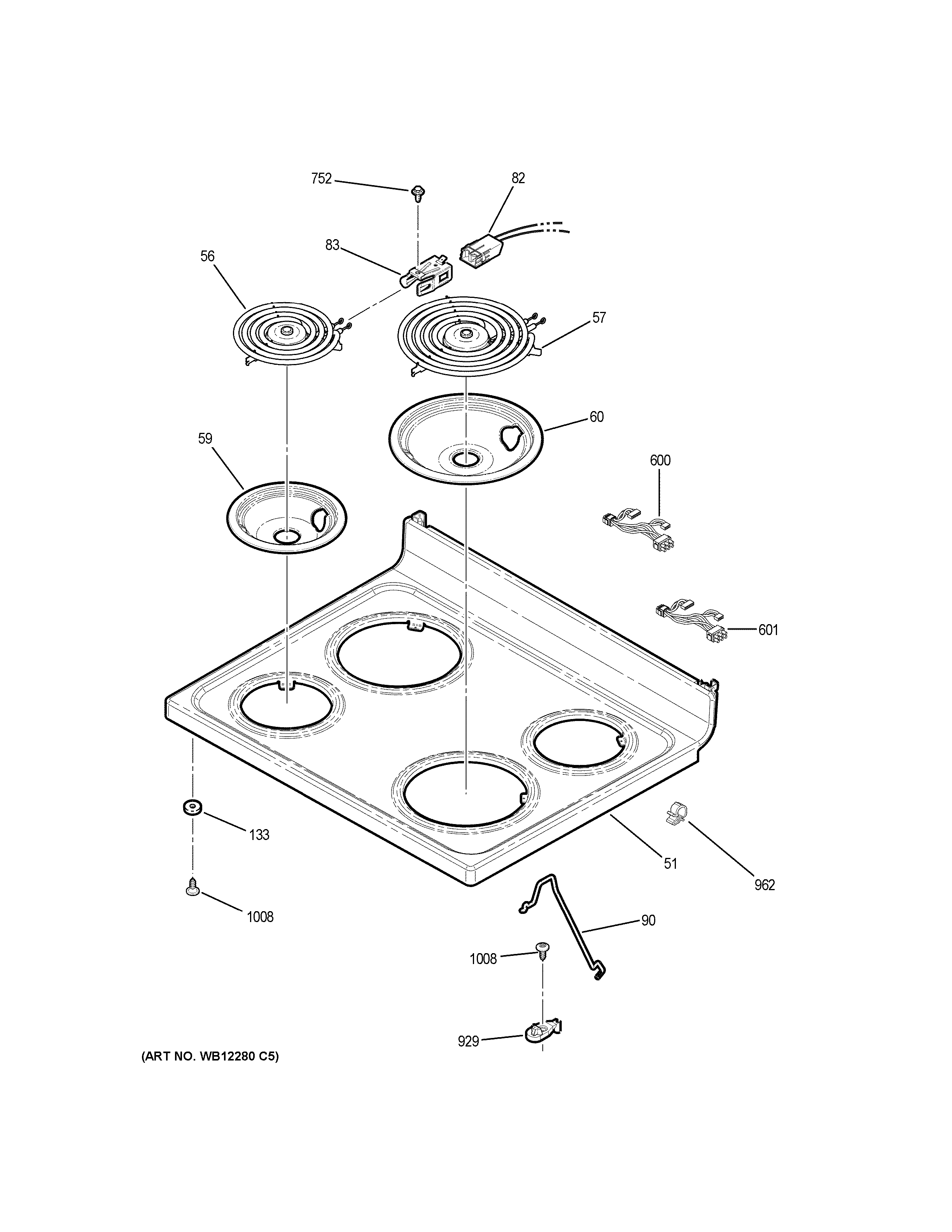

XB258DM3WW COOKTOP

Products

Position	Product
51	WB62T10614 GE Range Top Mechanical Assembly White
56	WB31X46067 GE 6" Surface Burner
57	WB31X46066 GE Surface Burner 8"
59	WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60	WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
82	WB18X30954 GE Oven Receptacle Clip
83	WB02K10381 GE Oven Receptacle Clip
90	WB02T10025 GE Oven Support Bracket
133	WB02X29562 GE Range Top Bumper
600	WB18X30783 GE Maintop Wire Harness
601	MAINTOP HARNESS WIRE RT
752	WB1K5200 GE Oven Screw 340531
929	WB02T10026 GE Oven Strike Maintop
962	CLIP WIRE
1008	WB1X5904 GE Oven Screw 8-18 BA
