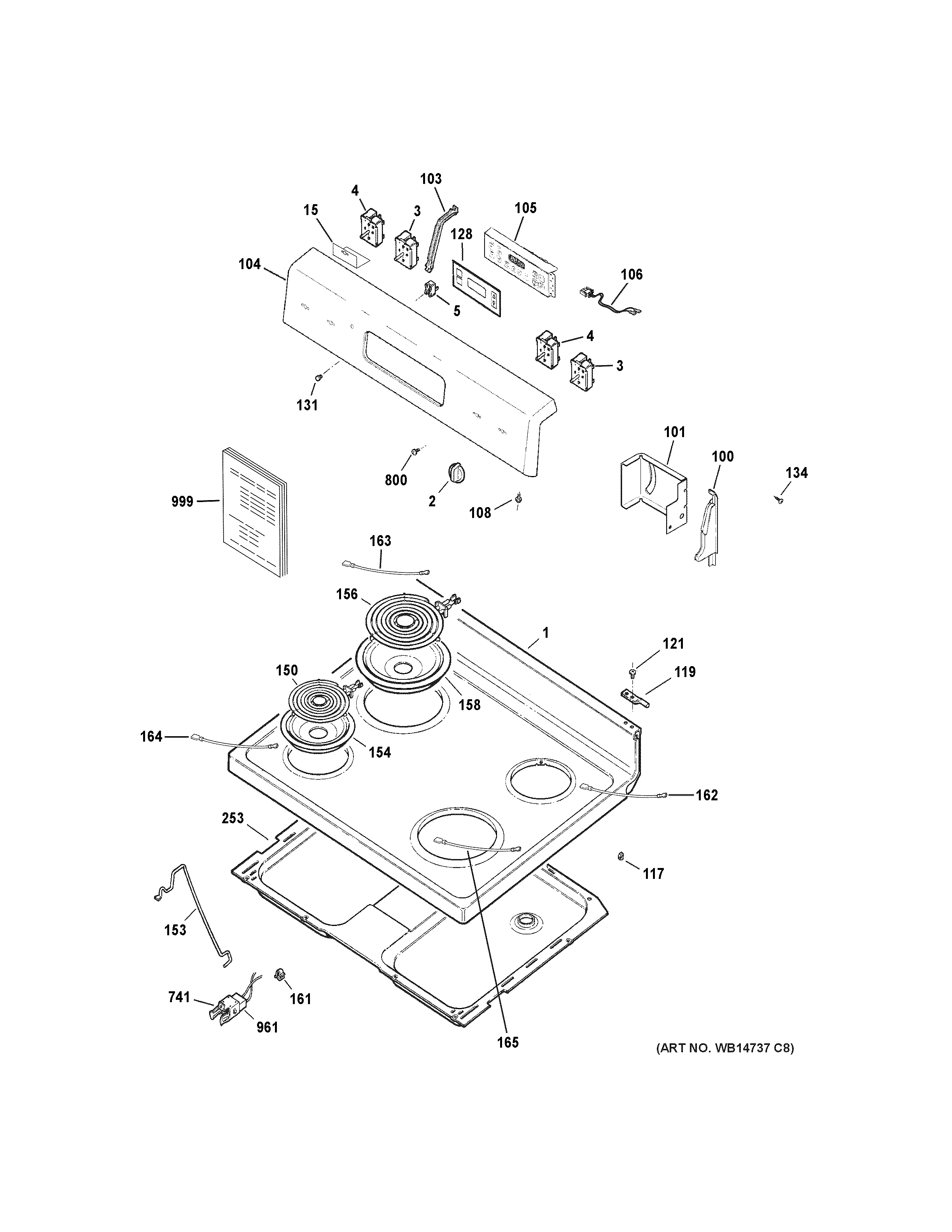

XBS360DM3BB CONTROL PANEL & COOKTOP

XBS360DM3BB CONTROL PANEL & COOKTOP

Written by

in

XBS360DM3BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X21354 GE Range Top
2WB03K10301 GE Oven Knob
3WB24T10025 SWITCH INFIN(2500W)
4WB24T10022 GE Oven Infinite Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
15COVER THERMOSTAT
100WB07K10194 GE Oven End Support Gloss Black
100WB07K10193 GE Oven End Support Gloss Black
101WB37X20193 GE Cooktop Bracket
101WB37X20196 GE Cooktop Bracket
103GEN WB02K10076
104BLACK BACKGUARD
105CONTROL OVEN TO9 (ELEC)
106WB18X31489 GE Control Harness
108WB1X536 GE Oven Screw
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128WB07X31451 GE Black Overlay T09
131WB25T10041 GE Oven Lens
134GEN WB01X5716
150WB31X46067 GE 6" Surface Burner
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
156WB31X46066 GE Surface Burner 8"
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
162WB18X27485 GE Surface Unit Harness
163WB18X27486 GE Surface Unit Harness
164WB18X27487 GE Oven Surface Unit Harness
165WB18X27488 GE Oven Surface Unit Harness
253WB64K10009 GE Oven Cooktop Box
741WB02K10133 GE Oven Receptacle Clip
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999WB49X21392 GE Oven Hinge Service Kit
999PM INSTALL INSTRUCTIONS
999PM QUICK OWNERS MANUAL
