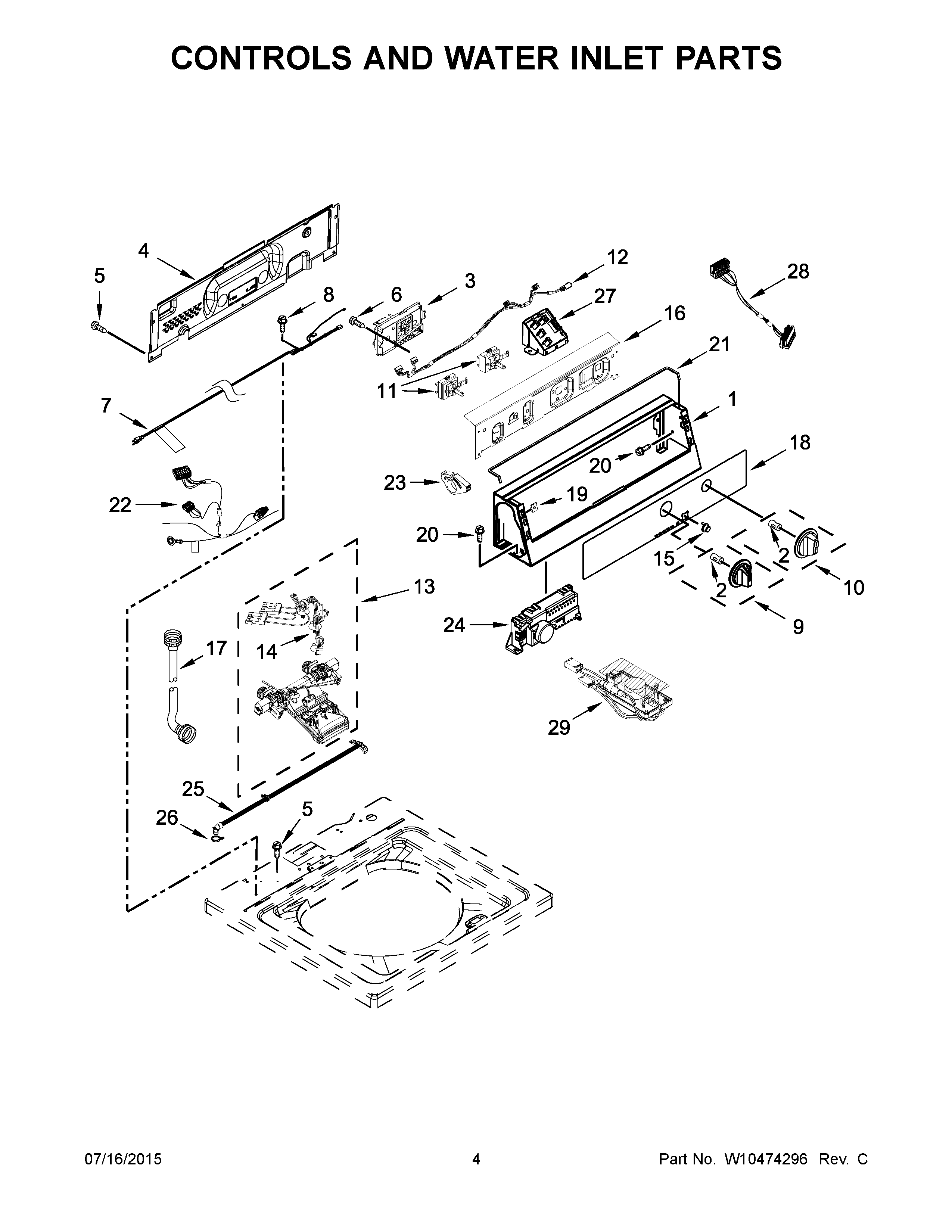

XCAE2763BQ0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	WPW10476820 Whirlpool Adapter
NI	10A CORD LOCK
NI	WPW10476822 Whirlpool Adapter
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPL W10476818
1	W10461094 Whirlpool Control Panel
2	Clip, Knob
3	W10884153 Whirlpool Electronic Control Board
4	WPW10461159 Whirlpool Rear Panel
5	WP489069 Whirlpool Compactor Screw
6	WP90767 Whirlpool Screw
7	W10520399 Whirlpool Power Cord
8	W10846509 Whirlpool Screw
9	W10461101 Whirlpool Control Knob
10	W10461100 Whirlpool Knob
11	WPW10285512 Whirlpool Cycle Switch
12	W10291184 Whirlpool Wire Harness
14	W10520396 Whirlpool Wire Harness
15	WPW10461117 Whirlpool Push Button
16	W10461067 Whirlpool Bracket
17A	WPW10489648 Whirlpool Fill Hose
17	WPW10489643 Whirlpool Fill Hose
18	FASCIA
19	WPW10131123 Whirlpool Nut
20	WP3390631 Whirlpool Screw
21	WPW10157932 Whirlpool Seal Foam
22	W10567152 Whirlpool Harness Wire
23	WPW10663966 Whirlpool Washer Water Level Switch
25	WPW10461189 Whirlpool Hose
26	WP596669 Whirlpool Hose Clamp
27	INTERFACE
28	W11296297 Whirlpool Wire Harness
29	W10540620 Whirlpool Filter
