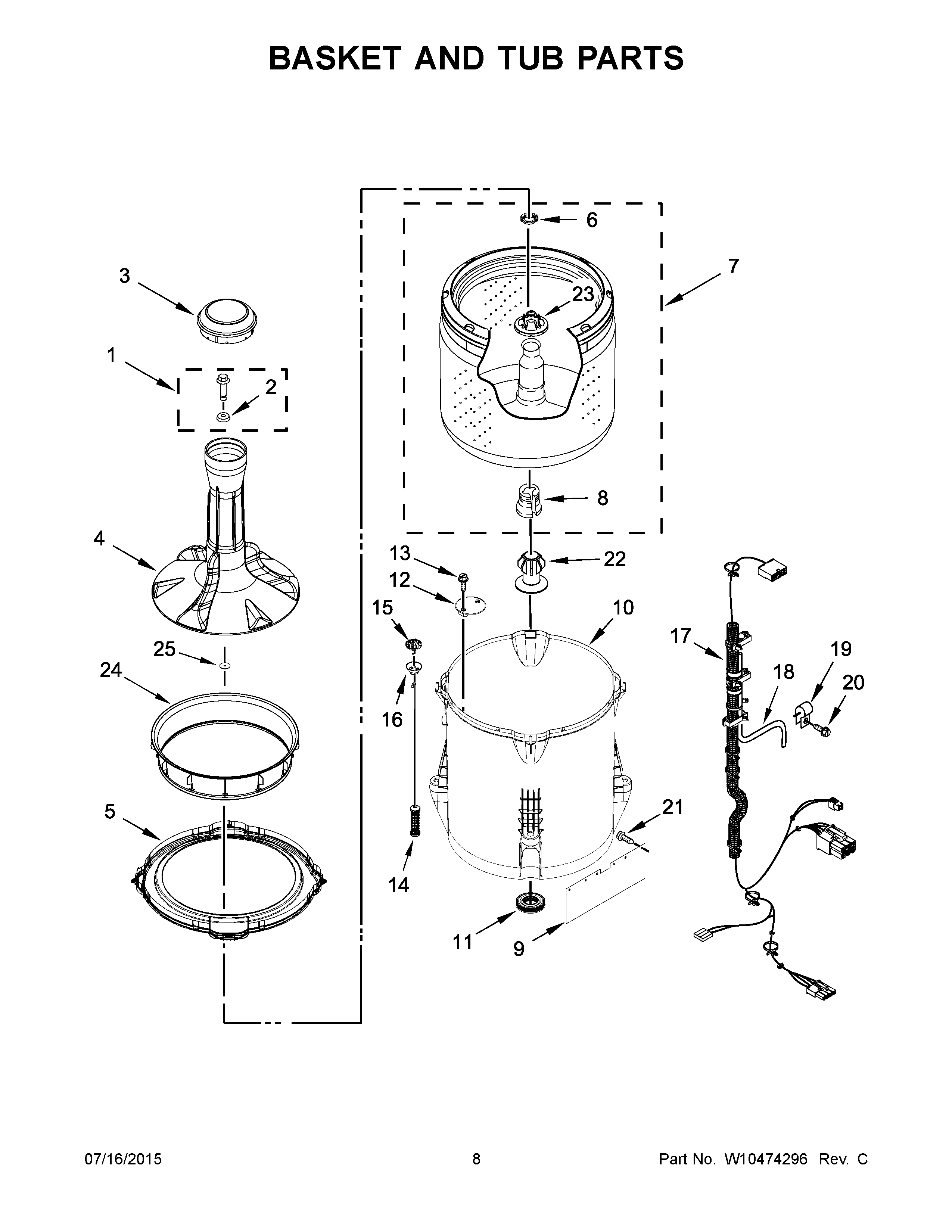

XCAE2763BQ0 05 – BASKET AND TUB PARTS

Products

Position	Product
1	W10772621 Whirlpool Washplate Screw
2	WP3949550 Whirlpool Gasket Assembly
3	CAP, AGITATOR
4	W10772620 Whirlpool Washplate
5	WPW10461196 Whirlpool Tub Ring
6	WP21366 Whirlpool Spanner Nut
7	W10738339 Whirlpool Basket Assembly
8	W11084139 Whirlpool Brush Block
9	W10339098 Whirlpool Shield
10	W10371566 Whirlpool Outer Tub
11	W10579816 Whirlpool Tub Seal
12	WPW10215093 Whirlpool Filter
13	WP8533928 Whirlpool Refrigerator Screw
15	W10780046 Whirlpool Suspension Rod Kit
16	W10440729 Whirlpool Suspension
17	HARNESS, LOWER (INCLUDES PRESSURE HOSE & CABLE TIE)
18	WP353244 Whirlpool Hose
19	W10005430 Whirlpool Clamp
20	WPW10109200 Whirlpool Screw
21	W10429200 Whirlpool Retainer
22	W11084129 Whirlpool Spacer
23	W10461124 Whirlpool Ring
24	W11222084 Whirlpool Adapter
25	W10832827 Whirlpool Washer
