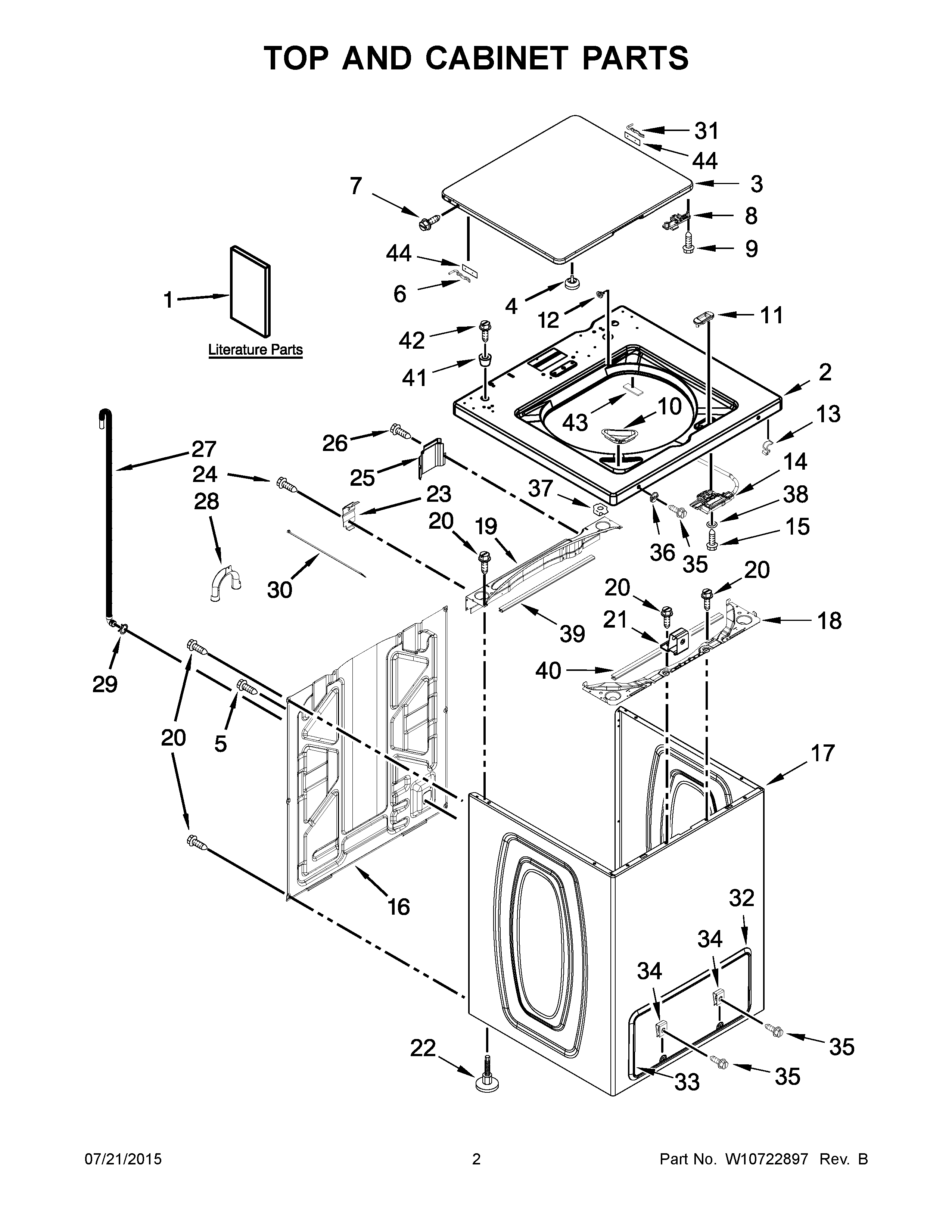

XCAE2763CQ0 02 – TOP AND CABINET PARTS

XCAE2763CQ0 02 – TOP AND CABINET PARTS

Written by

in

XCAE2763CQ0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1AWIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1COWNERS MANUAL CARD READER
1BTECH SHEET
2W10461168 Whirlpool Top
3W10839384 Whirlpool Lid
4W11252488 Whirlpool Bumper
5WP9740848 Whirlpool Dishwasher Screw
6WP91770 Whirlpool Hinge
7SCREW
8WPW10240513 Whirlpool Strike
9WPW10273971 Whirlpool Screw
10W10515627 Whirlpool Dispenser
11WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12WP21258 Whirlpool Washer Lid Hinge Bearing
13WP90016 Whirlpool Clip
14LATCH, LID LOCK ASSEMBLY
15W11679611 Whirlpool Commercial Part Screw
16W11486091 Whirlpool Rear Panel
17CABINET (WHITE)
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20WP489069 Whirlpool Compactor Screw
21W10461182 Whirlpool Lock
22W10739673 Whirlpool Leveling Feet
23W10461176 Whirlpool Hinge
24WP489128 Whirlpool Refrigerator Screw
25W10461180 Whirlpool Cover Assembly
26W10846509 Whirlpool Screw
27W11244231 Whirlpool Hose
28WPW10280024 Whirlpool Retainer
29WP356138 Whirlpool Hose Clamp
30WPW10339879 Whirlpool Wire Tie
31WP54583 Whirlpool Hinge
32W10464749 Whirlpool Frame
33DOOR, FRONT ACCESS
34WP3400915 Whirlpool Nut
35W11170603 Whirlpool Screw
36W10461181 Whirlpool Bushing
37WP90406 Whirlpool Nut
38W10318627 Whirlpool O-Ring
39W10521454 Whirlpool Dishwasher Protector
40W10521453 Whirlpool Dishwasher Protector
41WPL 356674
423353994 Whirlpool Screw Assembly
43W11312189 Whirlpool Pad Assembly
44WP21097 Whirlpool Pad
