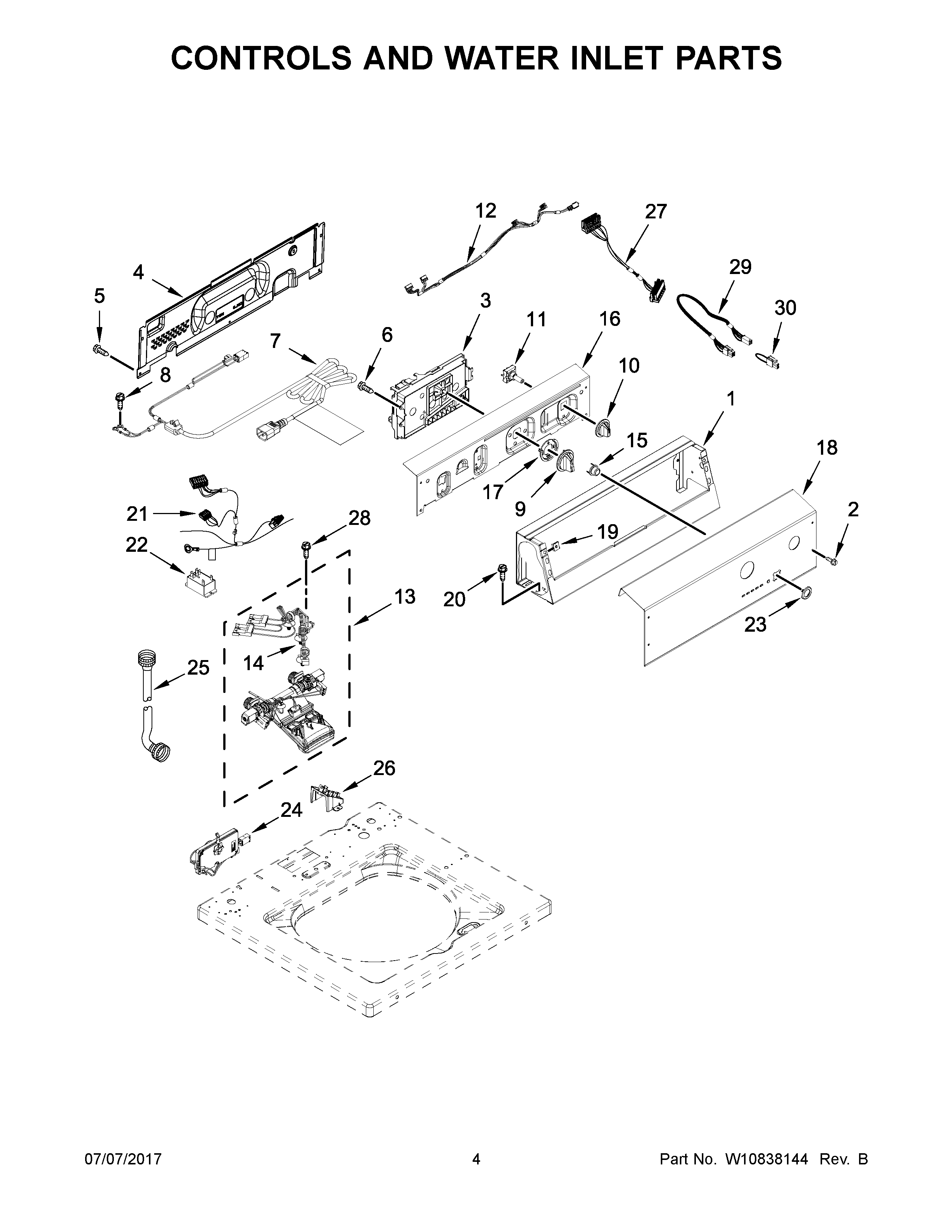

XCAE2765FQ0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NI10A CORD LOCK
NIWPL W10476818
NICABINET (NOT A SERVICEABLE PART)
NIWPW10476820 Whirlpool Adapter
NIWPW10476822 Whirlpool Adapter
1W10461094 Whirlpool Control Panel
2WPW10131119 Whirlpool Screw
3W11712988 Whirlpool Electronic Control
4WPW10461159 Whirlpool Rear Panel
5W11685943 Whirlpool Screw
6WP90767 Whirlpool Screw
7CORD, POWER
8W10846509 Whirlpool Screw
9W10461101 Whirlpool Control Knob
10W10461100 Whirlpool Knob
11WPW10285518 Whirlpool Cycle Switch
12W10291184 Whirlpool Wire Harness
13W11104125 Whirlpool Valve
14HARNESS, VALVE
15WPW10461117 Whirlpool Push Button
16W10461067 Whirlpool Bracket
17W10828902 Whirlpool Insert
18FASCIA
19WPW10131123 Whirlpool Nut
20WP3390631 Whirlpool Screw
21HARNESS, LED
22W11500166 Whirlpool Relay
23W10510149 Whirlpool Bezel
24W10920036 Whirlpool Filter
25AWPW10489648 Whirlpool Fill Hose
25WPW10489643 Whirlpool Fill Hose
26INTERFACE
27W11296297 Whirlpool Wire Harness
28WPW10213953 Whirlpool Screw
29W10539192 Whirlpool Wire Harness
30W11243585 Whirlpool Wire Harness
