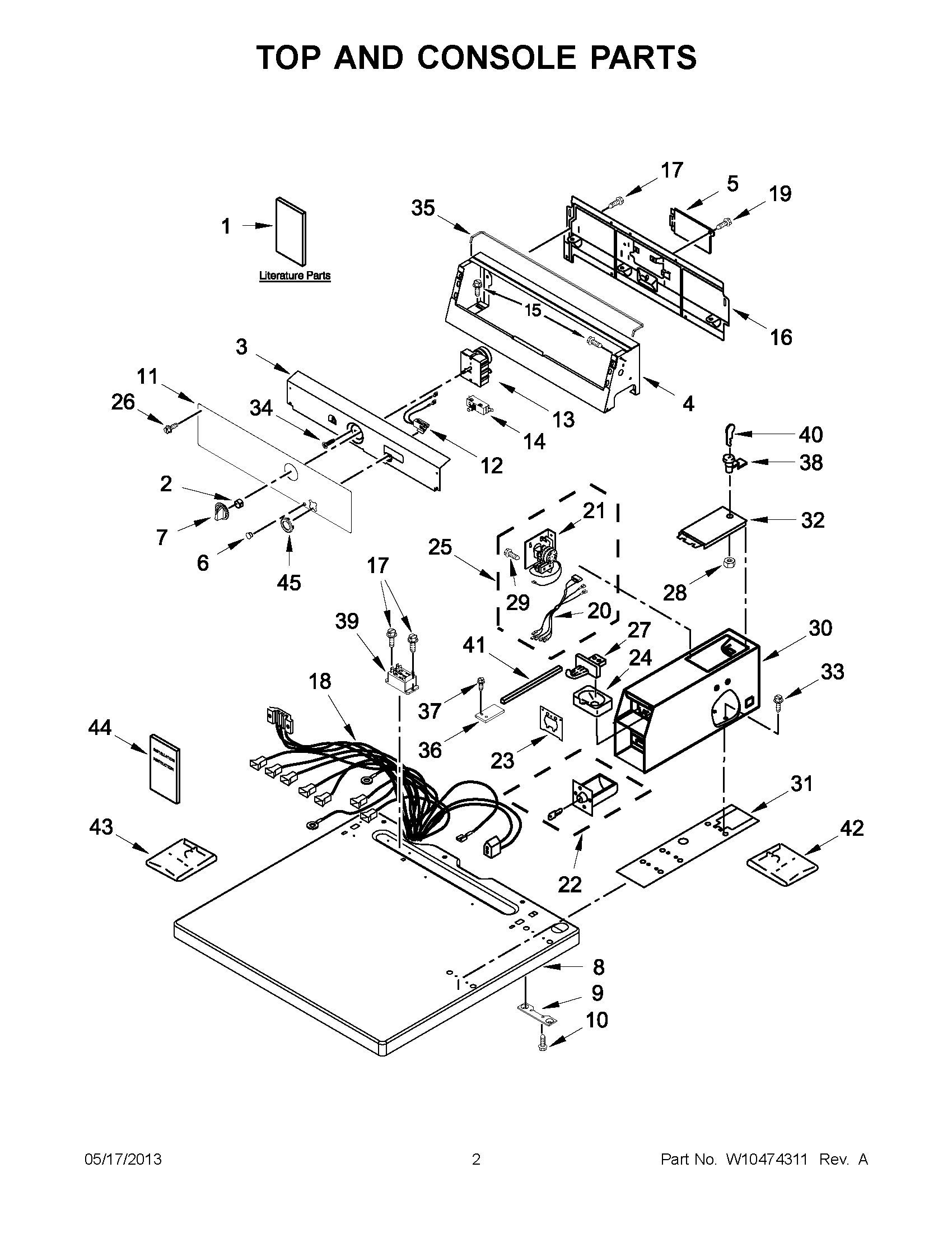

XCEM2763BQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	WIRING DIAGRAM
1	INSTALLATION INSTRUCTIONS
2	Clip, Knob
3	W10461070 Whirlpool Bracket
4	W10461094 Whirlpool Control Panel
5	WPW10119283 Whirlpool Terminal Cover
6	WPW10133502 Whirlpool Lens
7	W10492415 Whirlpool Knob
8	WPW10136707 Whirlpool Top Assembly
9	3347825 Whirlpool Plate
10	W10841059 Whirlpool Screw
11	FASCIA
12	W10139459 Whirlpool Light Assembly
13	W10327100 Whirlpool Cycle Switch
14	W11097274 Whirlpool Push-To-Start Switch
15	WP90767 Whirlpool Screw
16	PANEL, REAR (UPPER)
17	WP488729 Whirlpool Refrigerator Door Screw
18	HARNESS, MAIN
19	303776 Whirlpool Dishwasher Screw
20	HARNESS, TIMER
21	TIMER
22	W11190039 Whirlpool Coin Box Assembly
23	279950 Whirlpool Funnel
24	WP385421 Whirlpool Coin Operated Laundry Funnel
25	TIMER & HARNESS ASSEMBLY
26	WPW10131119 Whirlpool Screw
27	W11126319 Whirlpool Washer Dryer Coin Chute
27	Inserts (Not Shown
27	WPL 8316265
28	WP90406 Whirlpool Nut
29	339805 Whirlpool Screw
30	WPW10461200 Whirlpool Case
31	WP3954812 Whirlpool Cushion
32	W11283272 Whirlpool Washer Dryer Meter Case Access Door
33	W11715721 Whirlpool Screw Assembly
34	SCREW
35	WPW10157932 Whirlpool Seal Foam
36	WPW10153513 Whirlpool Extension
37	WP3400029 Whirlpool Dishwasher Nut
38	W11315637 Whirlpool Lock Assembly
39	WP1188043 Whirlpool Relay
41	WP8576635 Whirlpool Bolt
42	WPL 8316524
43	WP3406965 Whirlpool Coin Chute
44	WPL 8316532
45	W10510149 Whirlpool Bezel
