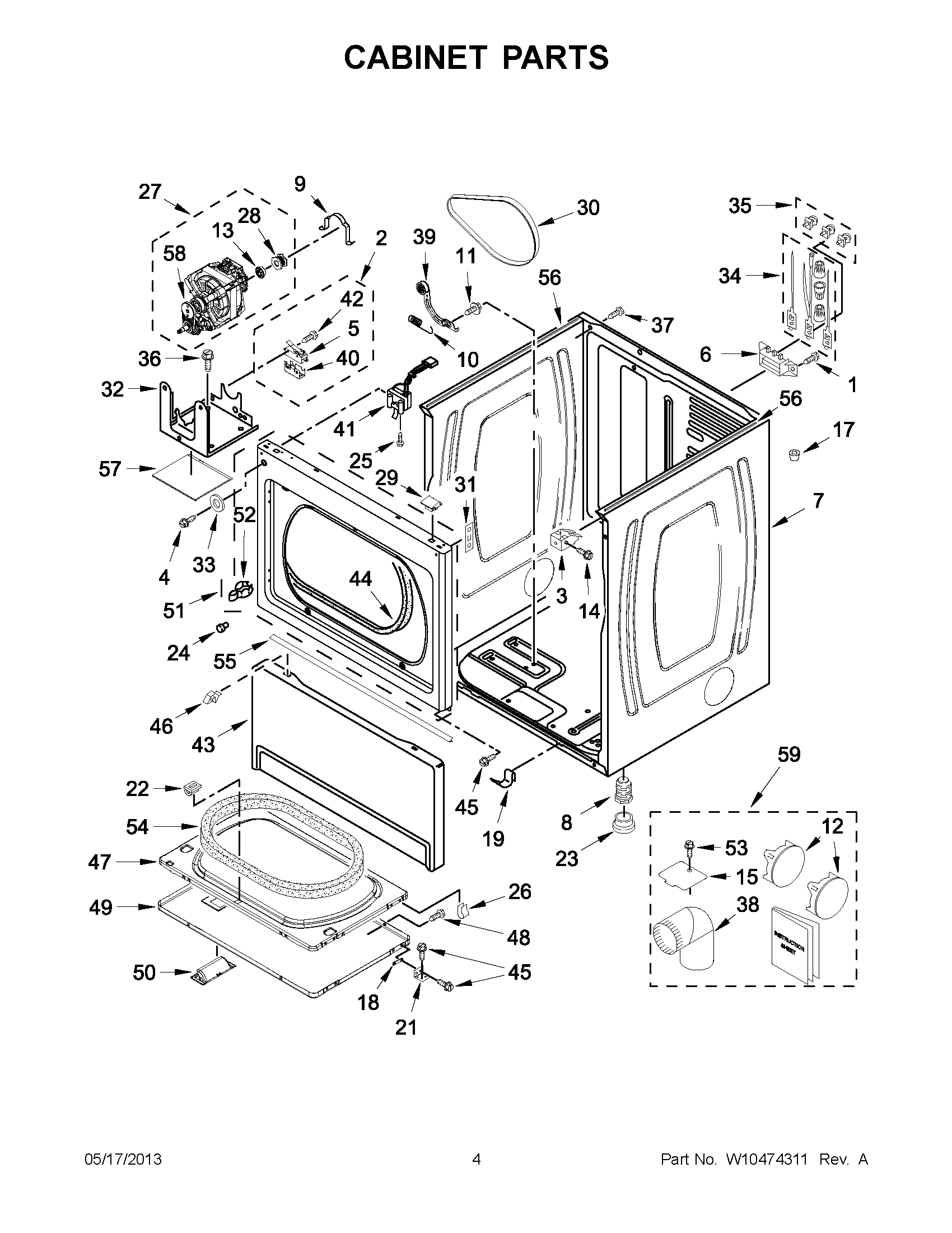

XCEM2763BQ0 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WP308685 Whirlpool Microwave Screw
2	W11236387 Whirlpool Switch
3	3391846 Whirlpool Clip
4	WP488729 Whirlpool Refrigerator Door Screw
5	W10410873 Whirlpool Plug Switch
6	WP3397659 Whirlpool Terminal Block
7	W11417441 Whirlpool Cabinet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	WP3393657 Whirlpool Belt Retainer
14	681615 Whirlpool Screw
15	WPW10354249 Whirlpool Cover
17	WPL 356674
18	W10191265 Whirlpool Plug
19	WPW10291934 Whirlpool Clip
21	WPW10279703 Whirlpool Hinge Assembly
22	279570 Whirlpool Dryer Door Latch Kit
23	WP3391943 Whirlpool Foot Boot
24	693152 Whirlpool Bumper
25	WP3395530 Whirlpool Screw
26	WPW10131123 Whirlpool Nut
27	W10416574 Whirlpool Motor Drive
28	W10167237 Whirlpool Motor Pulley
29	WP345670 Whirlpool Lock
30	WPW10131172 Whirlpool Belt
31	WP3390902 Whirlpool Clip
32	W11676491 Whirlpool Base
33	Washer, No. 10
34	279318 Whirlpool Terminal
35	279393 Whirlpool Terminal Block Screw and Nut Kit
36	SCREW
37	W10850756 Whirlpool Screw
38	WPW10416072 Whirlpool Elbow
39	WPW10344192 Whirlpool Idler Pulley
40	8564011 Whirlpool Bracket
41	SWITCH-DOOR DRYER
42	3400934 Whirlpool Screw
43	WP3406797 Whirlpool Toe Panel
44	WP3387242 Whirlpool Seal
45	WP488627 Whirlpool Refrigerator Screw
46	WP3388229 Whirlpool Dryer Spring Clip
47	280083 Whirlpool Rear Door
48	WPW10139210 Whirlpool Screw
49	W11663440 Whirlpool Door
50	3389522 Whirlpool Handle
51	W10242810 Whirlpool Panel
53	WP693995 Whirlpool Screw
54	WP3390735 Whirlpool Door Seal
55	SEAL, DEFLECTOR
56	Seal, Foam
57	W11113654 Whirlpool Pad
58	WP3405160 Whirlpool Belt Assembly
59	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
