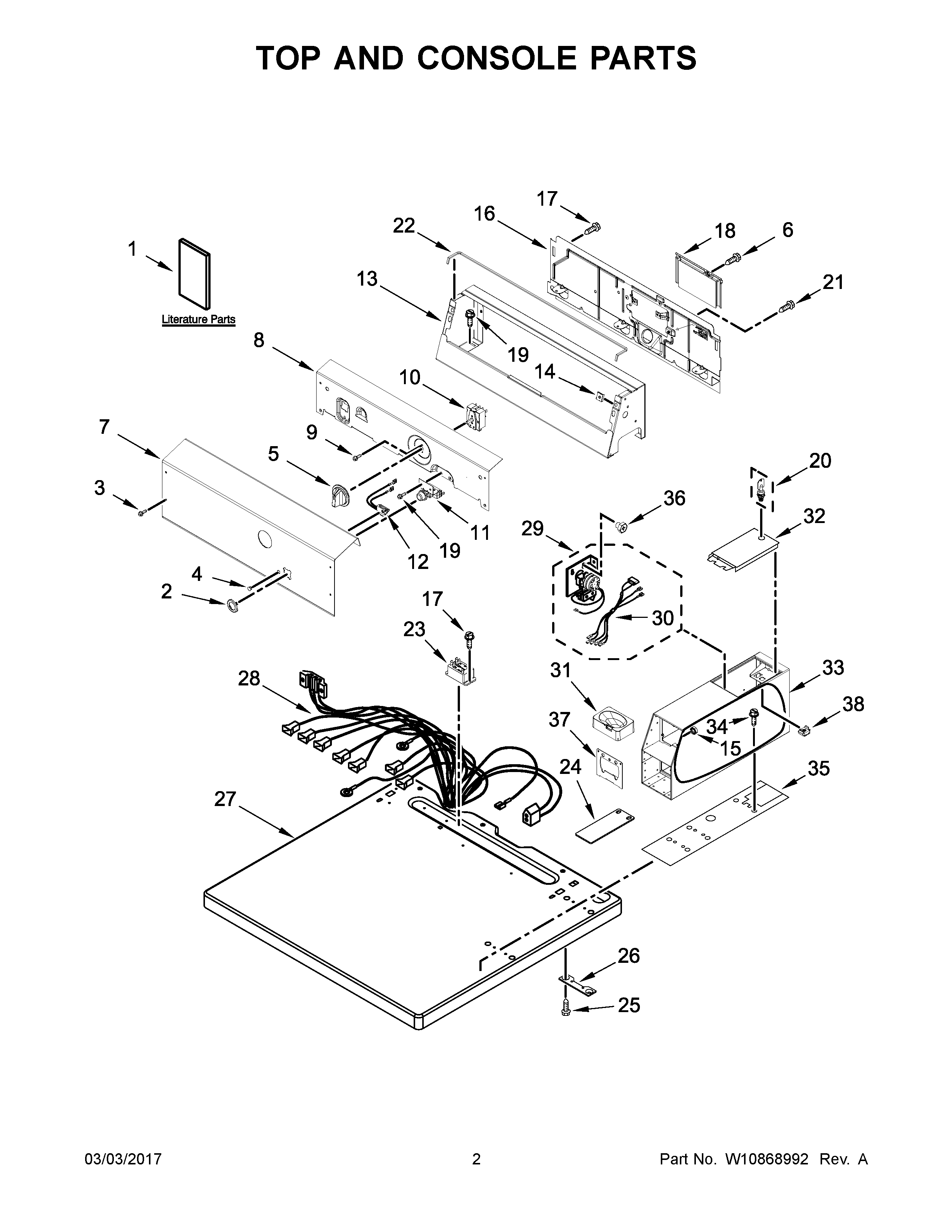

XCEM2765FQ0 02 – TOP AND CONSOLE PARTS
Written by
in
XCEM2765FQ0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1B
INSTALLATION INSTRUCTIONS, CARD READER
1C
WIRING DIAGRAM
1
INSTALLATION INSTRUCTIONS
1A
USE AND CARE GUIDE
2
W10510149 Whirlpool Bezel
3
WPW10131119 Whirlpool Screw
4
WPW10133502 Whirlpool Lens
5
W10492415 Whirlpool Knob
7
FASCIA
8
W10461070 Whirlpool Bracket
9
SCREW
10
W10327100 Whirlpool Cycle Switch
11
W11097274 Whirlpool Push-To-Start Switch
12
W10139459 Whirlpool Light Assembly
13
W10461094 Whirlpool Control Panel
14
WPW10131123 Whirlpool Nut
15
WP3400029 Whirlpool Dishwasher Nut
16
W11089934 Whirlpool Rear Panel
17
WP488729 Whirlpool Refrigerator Door Screw
18
COVER, TERMINAL BLOCK
19
WP90767 Whirlpool Screw
20
W11315637 Whirlpool Lock Assembly
21
W10850756 Whirlpool Screw
22
FOAM-SEAL
23
WP1188043 Whirlpool Relay
24
WPW10153513 Whirlpool Extension
25
W10841059 Whirlpool Screw
26
3347825 Whirlpool Plate
27
WPW10136707 Whirlpool Top Assembly
28
HARNESS, MAIN
29
TIMER & HARNESS ASSEMBLY
30
HARNESS, TIMER
31
WP385421 Whirlpool Coin Operated Laundry Funnel
32
W11283272 Whirlpool Washer Dryer Meter Case Access Door
33
WPW10461200 Whirlpool Case
34
W11715721 Whirlpool Screw Assembly
35
WP3954812 Whirlpool Cushion
36
339805 Whirlpool Screw
37
279950 Whirlpool Funnel
38
WP90406 Whirlpool Nut
←
