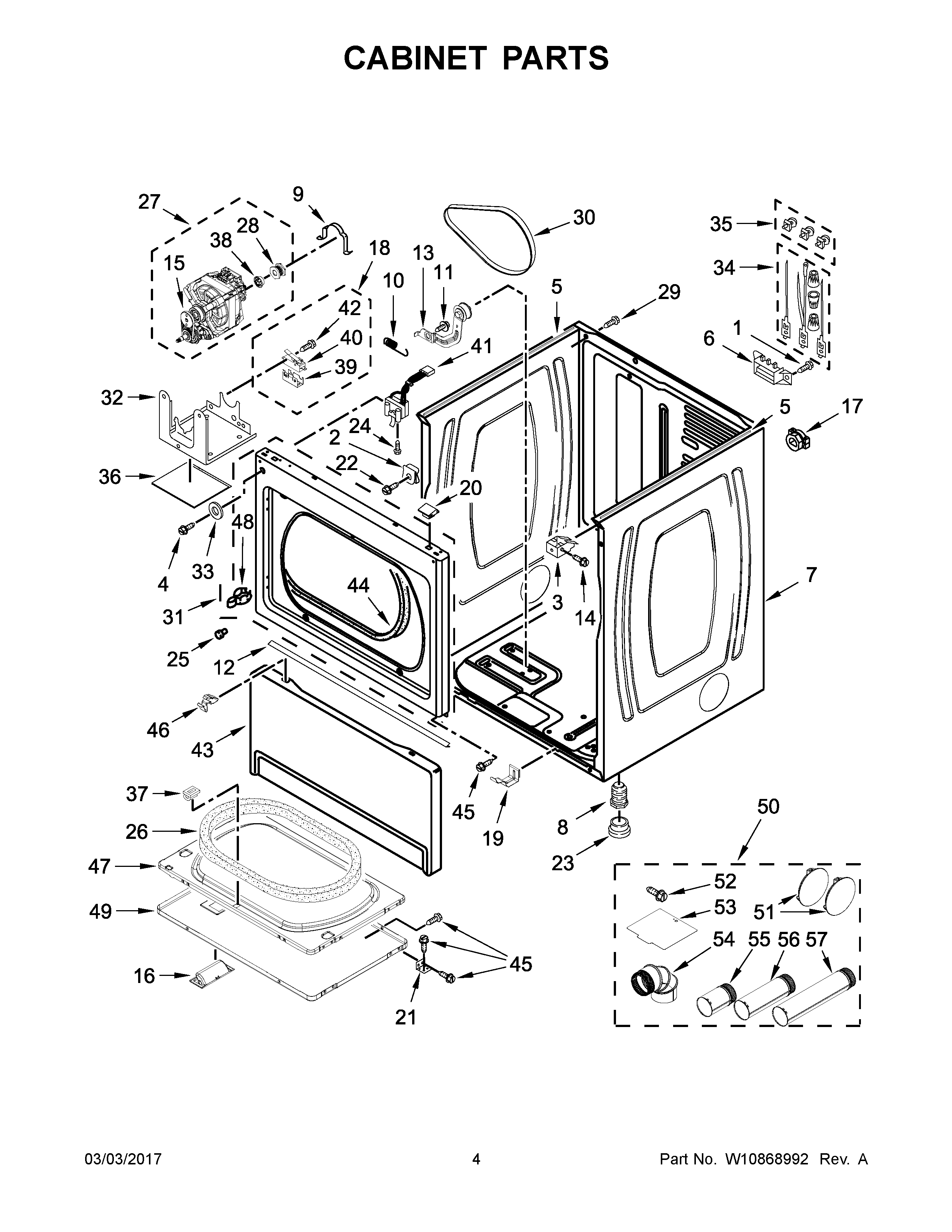

XCEM2765FQ0 03 – CABINET PARTS

XCEM2765FQ0 03 – CABINET PARTS

Written by

in

XCEM2765FQ0 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WP308685 Whirlpool Microwave Screw
2WPW10131123 Whirlpool Nut
33391846 Whirlpool Clip
4WP3400077 Whirlpool Screw
5Seal, Foam
6WP3397659 Whirlpool Terminal Block
7W11417441 Whirlpool Cabinet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12SEAL, DEFLECTOR
13WPW10344192 Whirlpool Idler Pulley
14681615 Whirlpool Screw
15WP3405160 Whirlpool Belt Assembly
16W11209427 Whirlpool Handle
17W11704629 Whirlpool Clamp
18W11236387 Whirlpool Switch
19WPW10291934 Whirlpool Clip
20WP345670 Whirlpool Lock
21WPW10279703 Whirlpool Hinge Assembly
23WP3391943 Whirlpool Foot Boot
24WP3395530 Whirlpool Screw
25693152 Whirlpool Bumper
26WP3390735 Whirlpool Door Seal
27W11215537 Whirlpool Drive Motor
28W10167237 Whirlpool Motor Pulley
29SCREW
30WPW10131172 Whirlpool Belt
31W10234293 Whirlpool Panel Assembly
32W11676491 Whirlpool Base
33Washer, No. 10
34279318 Whirlpool Terminal
35279393 Whirlpool Terminal Block Screw and Nut Kit
36W11113654 Whirlpool Pad
37279570 Whirlpool Dryer Door Latch Kit
38WP3393657 Whirlpool Belt Retainer
398564011 Whirlpool Bracket
40W10410873 Whirlpool Plug Switch
41SWITCH-DOOR DRYER
423400934 Whirlpool Screw
43WP3406797 Whirlpool Toe Panel
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47280083 Whirlpool Rear Door
49W11663440 Whirlpool Door
50W10470674 Whirlpool Dryer Side Vent Exhaust Kit
52WP488729 Whirlpool Refrigerator Door Screw
53WPW10354249 Whirlpool Cover
54WPW10416072 Whirlpool Elbow
55WPW10331278 Whirlpool Exhaust Pipe
56WP8563747 Whirlpool Exhaust Pipe
57WP8563749 Whirlpool Exhaust Pipe
