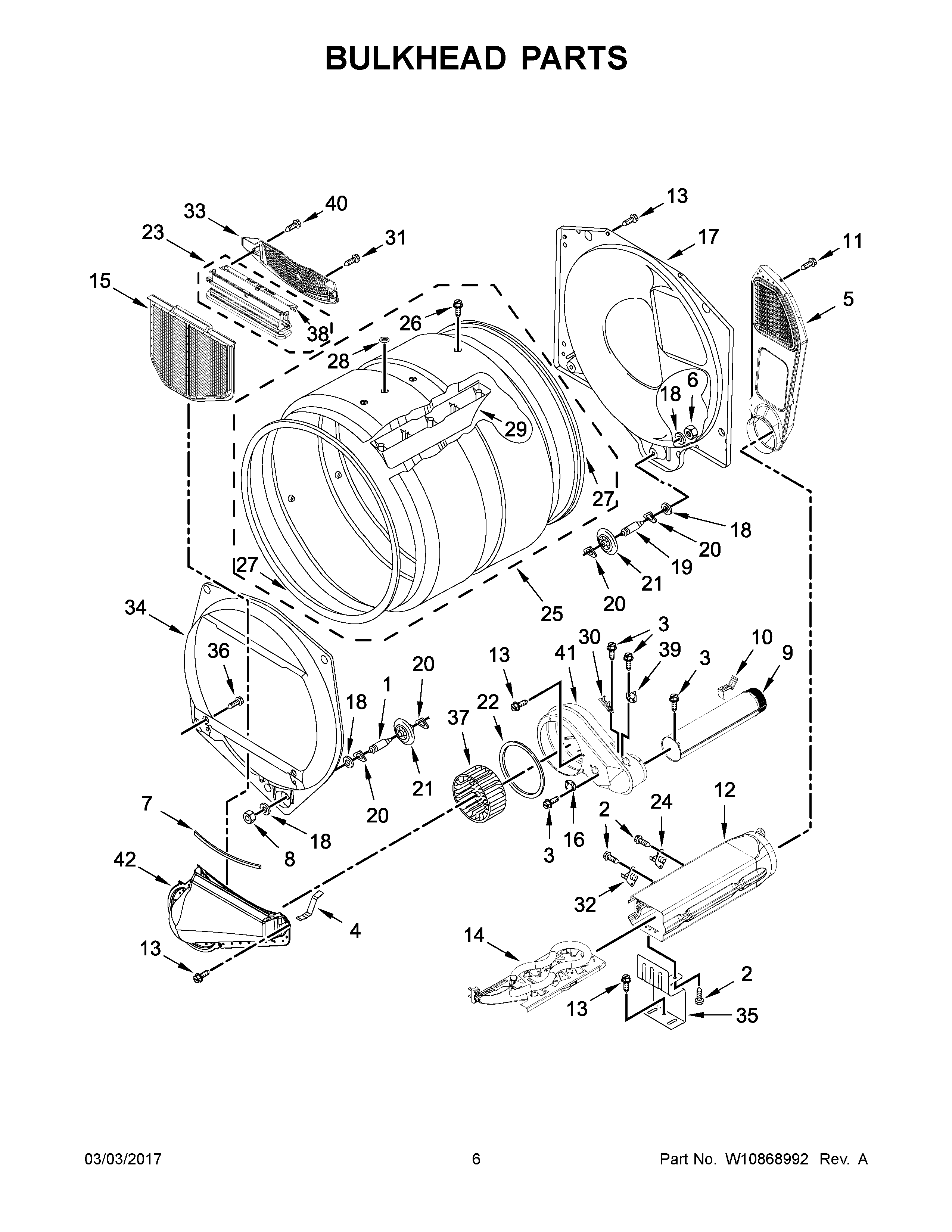

XCEM2765FQ0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
3	WP90767 Whirlpool Screw
4	WP8066208 Whirlpool Clip
5	WP3387911 Whirlpool Air Duct
6	WPW10080190 Whirlpool Nut
7	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	PIPE, EXHAUST
10	W11684573 Whirlpool Clip Assembly
11	WP693995 Whirlpool Screw
12	W10802681 Whirlpool Box Assembly
13	WP488729 Whirlpool Refrigerator Door Screw
14	ELEMENT
15	W10120998 Whirlpool Dryer Lint Screen Filter
16	WPW10206200 Whirlpool Thermostat
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP697770 Whirlpool Blower Cover Plate Seal
23	W11129408 Whirlpool Out Housing
24	W10154212 Whirlpool Thermal Cutoff
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	W10665050 Whirlpool Plug
29	WPW10113136 Whirlpool Drum Baffle
30	WPW10167627 Whirlpool Thermal Cutoff
32	WPW10168175 Whirlpool Thermostat
33	W11086603 Whirlpool Dryer Link Screen Air Grille
34	WP697557 Whirlpool Bulkhead Assembly
35	8066099 Whirlpool Bracket
36	WP308685 Whirlpool Microwave Screw
37	WHEEL
38	W11222846 Whirlpool Door
39	WPW10194158 Whirlpool Thermostat
40	WP3387230 Whirlpool Screw
41	HOUSING, BLOWER
42	WPW10128606 Whirlpool Lint Duct
