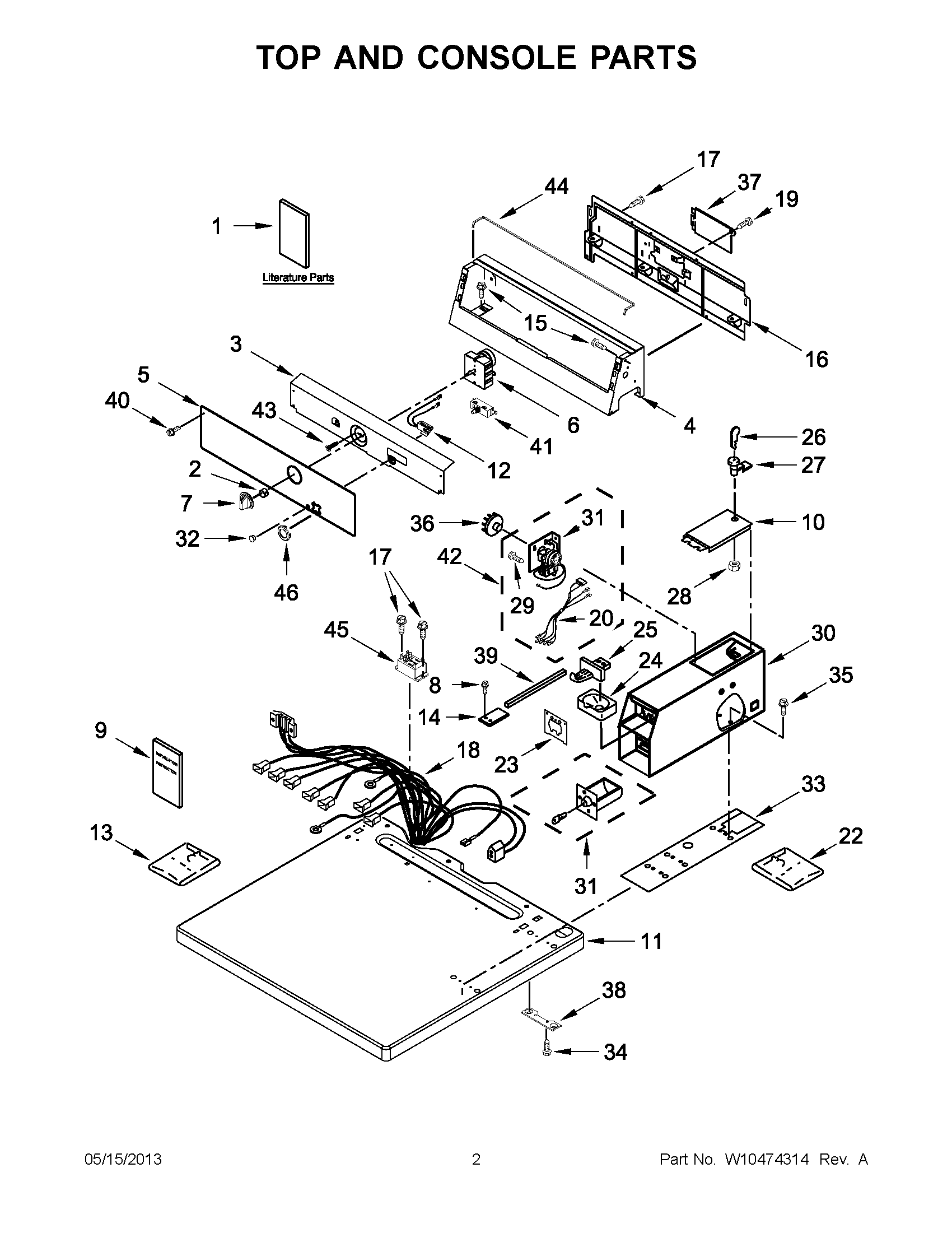

XCGM2763BQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	WIRING DIAGRAM
2	Clip, Knob
3	W10461070 Whirlpool Bracket
4	W10461094 Whirlpool Control Panel
5	FASCIA
6	W10327100 Whirlpool Cycle Switch
7	W10492415 Whirlpool Knob
8	WP3400029 Whirlpool Dishwasher Nut
9	WPL 8316532
10	W11283272 Whirlpool Washer Dryer Meter Case Access Door
11	WPW10136707 Whirlpool Top Assembly
12	W10139459 Whirlpool Light Assembly
13	WPL 8316524
14	WPW10153513 Whirlpool Extension
15	WP90767 Whirlpool Screw
16	PANEL, REAR (UPPER)
17	WP488729 Whirlpool Refrigerator Door Screw
18	HARNESS, MAIN
19	303776 Whirlpool Dishwasher Screw
20	HARNESS, TIMER
21	TIMER
22	WP3406965 Whirlpool Coin Chute
23	279950 Whirlpool Funnel
24	WP385421 Whirlpool Coin Operated Laundry Funnel
25	W11126319 Whirlpool Washer Dryer Coin Chute
25	WPL 8316265
25	Inserts (Not Shown
26	KEY
27	W11315637 Whirlpool Lock Assembly
28	WP90406 Whirlpool Nut
29	339805 Whirlpool Screw
30	WPW10461200 Whirlpool Case
31	W11190039 Whirlpool Coin Box Assembly
32	WPW10133502 Whirlpool Lens
33	WP3954812 Whirlpool Cushion
34	W10841059 Whirlpool Screw
35	W11715721 Whirlpool Screw Assembly
36	WP3387974 Whirlpool Cam
36	WP343777 Whirlpool Cam
37	WPW10119283 Whirlpool Terminal Cover
38	3347825 Whirlpool Plate
39	WP8576635 Whirlpool Bolt
40	WPW10131119 Whirlpool Screw
41	W11097274 Whirlpool Push-To-Start Switch
42	TIMER & HARNESS ASSEMBLY
43	SCREW
44	WPW10157932 Whirlpool Seal Foam
45	WP1188043 Whirlpool Relay
46	W10510149 Whirlpool Bezel
