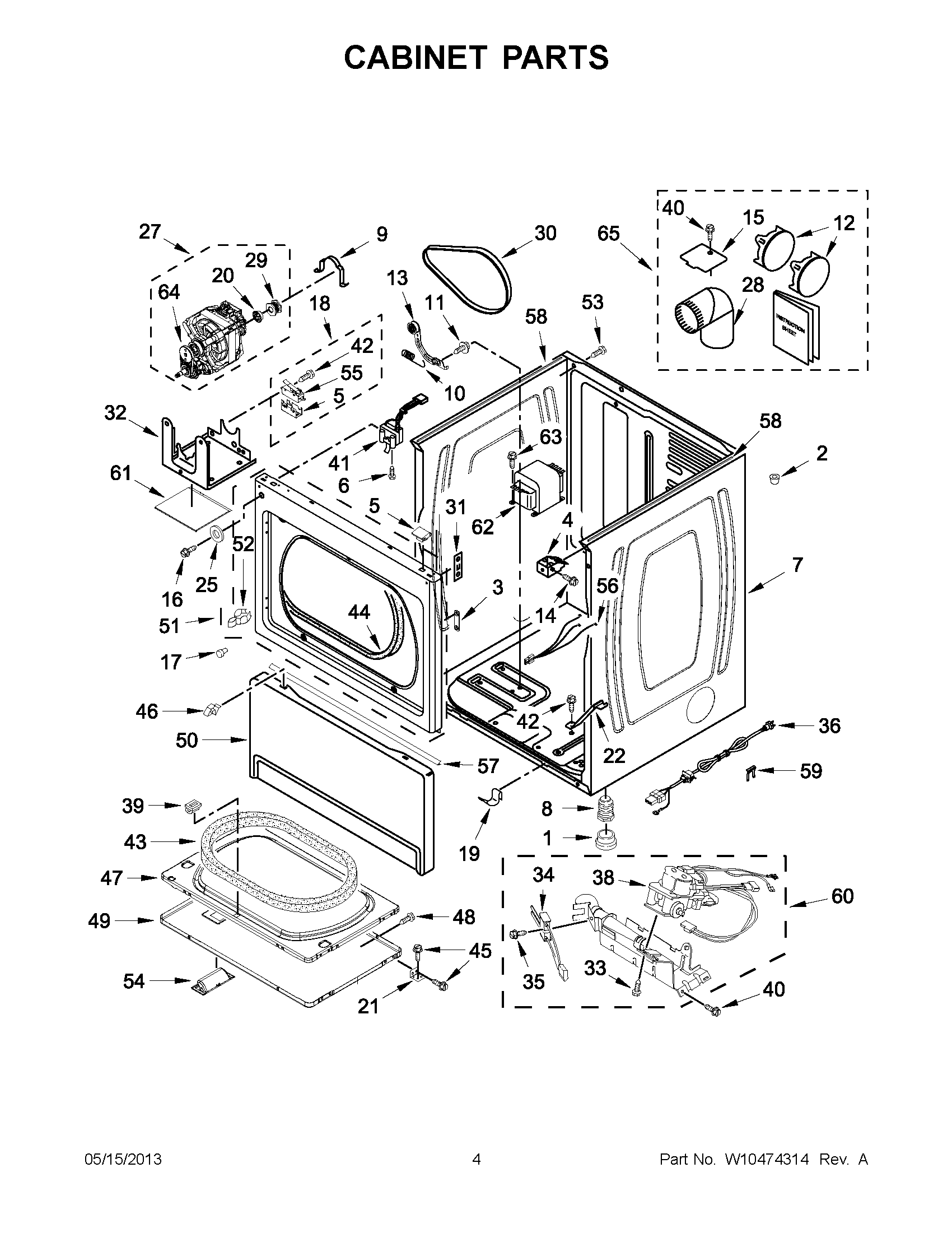

XCGM2763BQ0 02 – CABINET PARTS

XCGM2763BQ0 02 – CABINET PARTS

Written by

in

XCGM2763BQ0 02 – CABINET PARTS

Products

Position	Product
NI	WPW10476820 Whirlpool Adapter
NI	CABINET (NOT A SERVICEABLE PART)
NI	10A CORD LOCK
NI	49621 Whirlpool Leveling Feet
NI	WPW10476822 Whirlpool Adapter
1	WP3391943 Whirlpool Foot Boot
2	WPL 356674
3	W10191265 Whirlpool Plug
4	3391846 Whirlpool Clip
5	8564011 Whirlpool Bracket
6	WP3395530 Whirlpool Screw
7	W11417441 Whirlpool Cabinet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	WPW10344192 Whirlpool Idler Pulley
14	681615 Whirlpool Screw
15	WPW10354249 Whirlpool Cover
16	WP3400077 Whirlpool Screw
17	693152 Whirlpool Bumper
18	W11236387 Whirlpool Switch
19	WPW10291934 Whirlpool Clip
20	WP3393657 Whirlpool Belt Retainer
21	WPW10279703 Whirlpool Hinge Assembly
22	W10181903 Whirlpool Bracket
24	WP345670 Whirlpool Lock
25	WASHER
27	W10416574 Whirlpool Motor Drive
28	WPW10416072 Whirlpool Elbow
29	W10167237 Whirlpool Motor Pulley
30	WPW10131172 Whirlpool Belt
31	WP3390902 Whirlpool Clip
32	W11676491 Whirlpool Base
33	WP693995 Whirlpool Screw
34	279311 Whirlpool Dryer Flat Igniter with Bracket
35	WPW10366705 Whirlpool Screw
36	WPW10476824 Whirlpool Power Cord
38	WP8281918 Whirlpool Gas Valve
39	279570 Whirlpool Dryer Door Latch Kit
40	WP488729 Whirlpool Refrigerator Door Screw
41	SWITCH-DOOR DRYER
42	3400934 Whirlpool Screw
43	WP3390735 Whirlpool Door Seal
44	WP3387242 Whirlpool Seal
45	WP488627 Whirlpool Refrigerator Screw
46	WP3388229 Whirlpool Dryer Spring Clip
47	280083 Whirlpool Rear Door
48	W11693756 Whirlpool Screw Assembly
49	W11663440 Whirlpool Door
50	WP3406797 Whirlpool Toe Panel
51	W10242810 Whirlpool Panel
53	W10850756 Whirlpool Screw
54	3389522 Whirlpool Handle
55	W10410873 Whirlpool Plug Switch
56	WPL W10250903
57	SEAL, DEFLECTOR
58	Seal, Foam
59	W11712577 Whirlpool Clip
60	W10096909 Whirlpool Gas Burner
61	W11113654 Whirlpool Pad
62	W10851673 Whirlpool Transformer
63	W11676450 Whirlpool Screw
64	WP3405160 Whirlpool Belt Assembly
65	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
