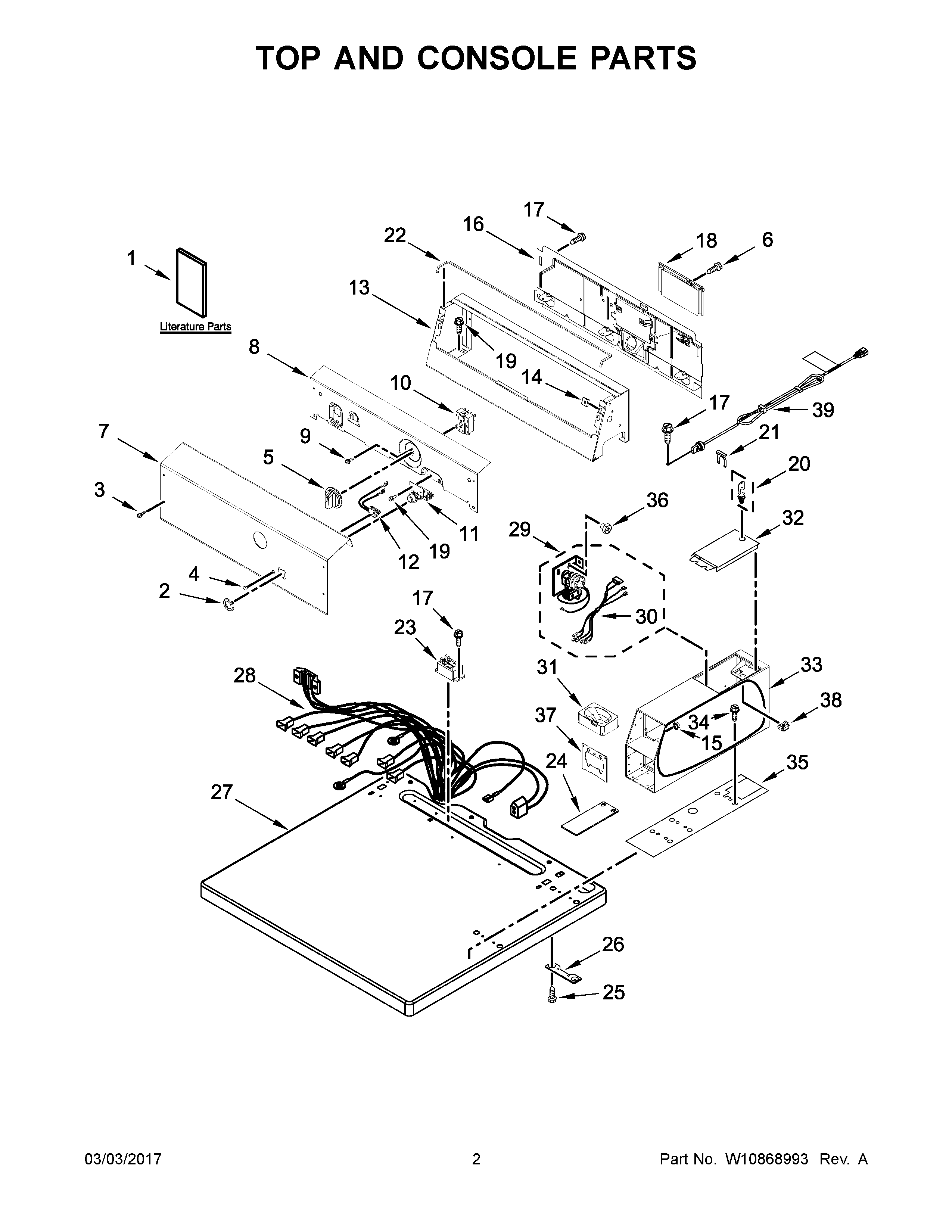

XCGM2765FQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
NI	10A CORD LOCK
NI	WPW10476822 Whirlpool Adapter
NI	WPW10476820 Whirlpool Adapter
NI	WPL W10476818
1	INSTALLATION INSTRUCTIONS
1A	USE AND CARE GUIDE
1B	INSTALLATION INSTRUCTIONS, CARD READER
1C	WIRING DIAGRAM
2	W10510149 Whirlpool Bezel
3	WPW10131119 Whirlpool Screw
4	WPW10133502 Whirlpool Lens
5	W10492415 Whirlpool Knob
7	FASCIA
8	W10461070 Whirlpool Bracket
9	SCREW
10	W10327100 Whirlpool Cycle Switch
11	W11097274 Whirlpool Push-To-Start Switch
12	W10139459 Whirlpool Light Assembly
13	W10461094 Whirlpool Control Panel
14	WPW10131123 Whirlpool Nut
15	WP3400029 Whirlpool Dishwasher Nut
16	W11089934 Whirlpool Rear Panel
17	WP488729 Whirlpool Refrigerator Door Screw
18	COVER, TERMINAL BLOCK
19	WP90767 Whirlpool Screw
20	W11315637 Whirlpool Lock Assembly
21	W11712577 Whirlpool Clip
22	FOAM-SEAL
23	WP1188043 Whirlpool Relay
24	WPW10153513 Whirlpool Extension
25	W10841059 Whirlpool Screw
26	3347825 Whirlpool Plate
27	WPW10136707 Whirlpool Top Assembly
28	HARNESS, MAIN
29	TIMER & HARNESS ASSEMBLY
30	HARNESS, TIMER
31	WP385421 Whirlpool Coin Operated Laundry Funnel
32	W11283272 Whirlpool Washer Dryer Meter Case Access Door
33	WPW10461200 Whirlpool Case
34	W11715721 Whirlpool Screw Assembly
35	WP3954812 Whirlpool Cushion
36	339805 Whirlpool Screw
37	279950 Whirlpool Funnel
38	WP90406 Whirlpool Nut
39	WPW10476824 Whirlpool Power Cord
