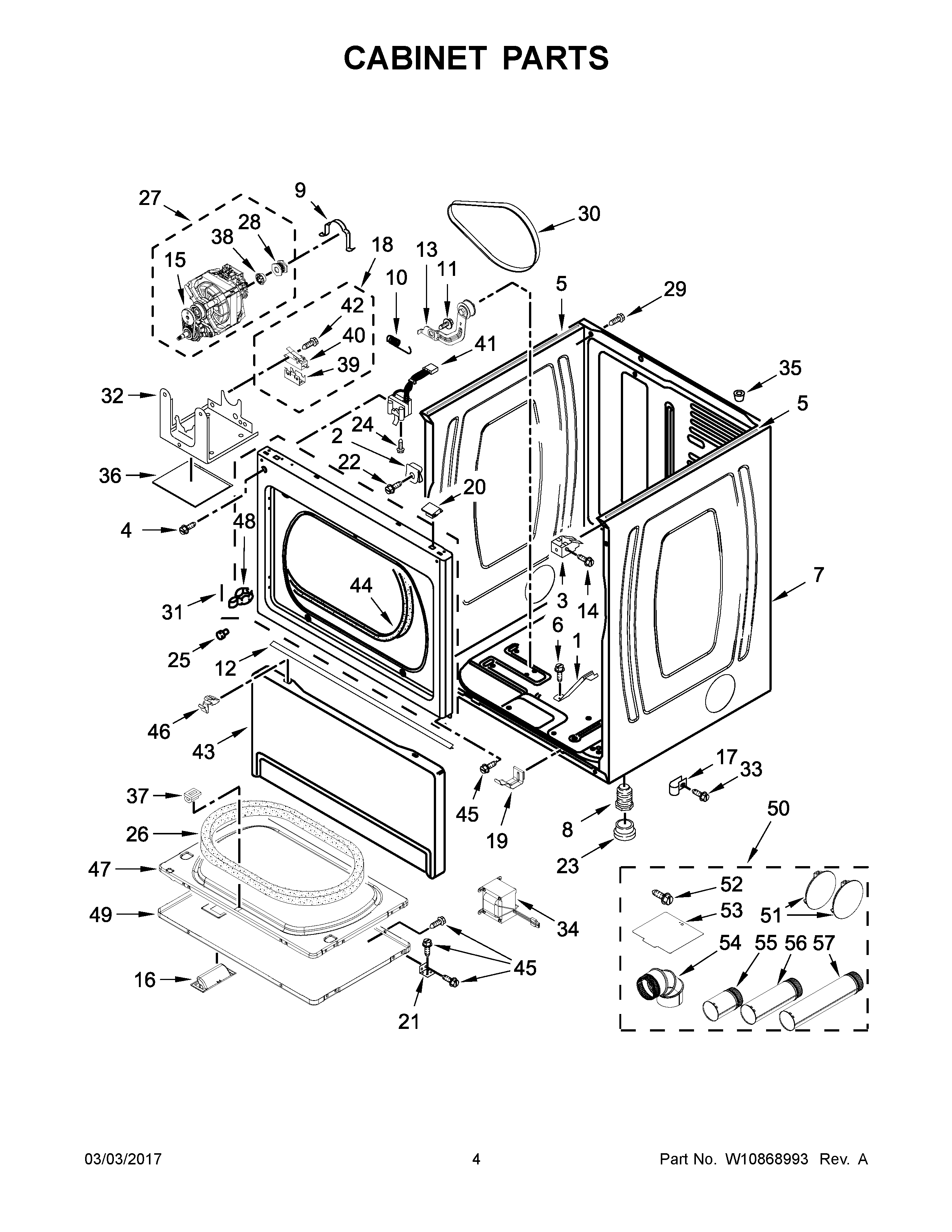

XCGM2765FQ0 03 – CABINET PARTS

XCGM2765FQ0 03 – CABINET PARTS

Written by

in

XCGM2765FQ0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10181903 Whirlpool Bracket
2	WPW10131123 Whirlpool Nut
3	3391846 Whirlpool Clip
4	WP3400077 Whirlpool Screw
5	Seal, Foam
6	WP693995 Whirlpool Screw
7	W11417441 Whirlpool Cabinet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	SEAL, DEFLECTOR
13	WPW10344192 Whirlpool Idler Pulley
14	681615 Whirlpool Screw
15	WP3405160 Whirlpool Belt Assembly
16	W11209427 Whirlpool Handle
17	3387561 Whirlpool Clamp
18	W11236387 Whirlpool Switch
19	WPW10291934 Whirlpool Clip
20	WP345670 Whirlpool Lock
21	WPW10279703 Whirlpool Hinge Assembly
23	WP3391943 Whirlpool Foot Boot
24	WP3395530 Whirlpool Screw
25	693152 Whirlpool Bumper
26	WP3390735 Whirlpool Door Seal
27	W11215537 Whirlpool Drive Motor
28	W10167237 Whirlpool Motor Pulley
29	SCREW
30	WPW10131172 Whirlpool Belt
31	W10234293 Whirlpool Panel Assembly
32	W11676491 Whirlpool Base
33	WP488729 Whirlpool Refrigerator Door Screw
34	W10851673 Whirlpool Transformer
35	WPL 356674
36	W11113654 Whirlpool Pad
37	279570 Whirlpool Dryer Door Latch Kit
38	WP3393657 Whirlpool Belt Retainer
39	8564011 Whirlpool Bracket
40	W10410873 Whirlpool Plug Switch
41	SWITCH-DOOR DRYER
42	3400934 Whirlpool Screw
43	WP3406797 Whirlpool Toe Panel
44	WP3387242 Whirlpool Seal
45	WP488627 Whirlpool Refrigerator Screw
46	WP3388229 Whirlpool Dryer Spring Clip
47	280083 Whirlpool Rear Door
49	W11663440 Whirlpool Door
50	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
53	WPW10354249 Whirlpool Cover
54	WPW10416072 Whirlpool Elbow
55	WPW10331278 Whirlpool Exhaust Pipe
56	WP8563747 Whirlpool Exhaust Pipe
57	WP8563749 Whirlpool Exhaust Pipe
