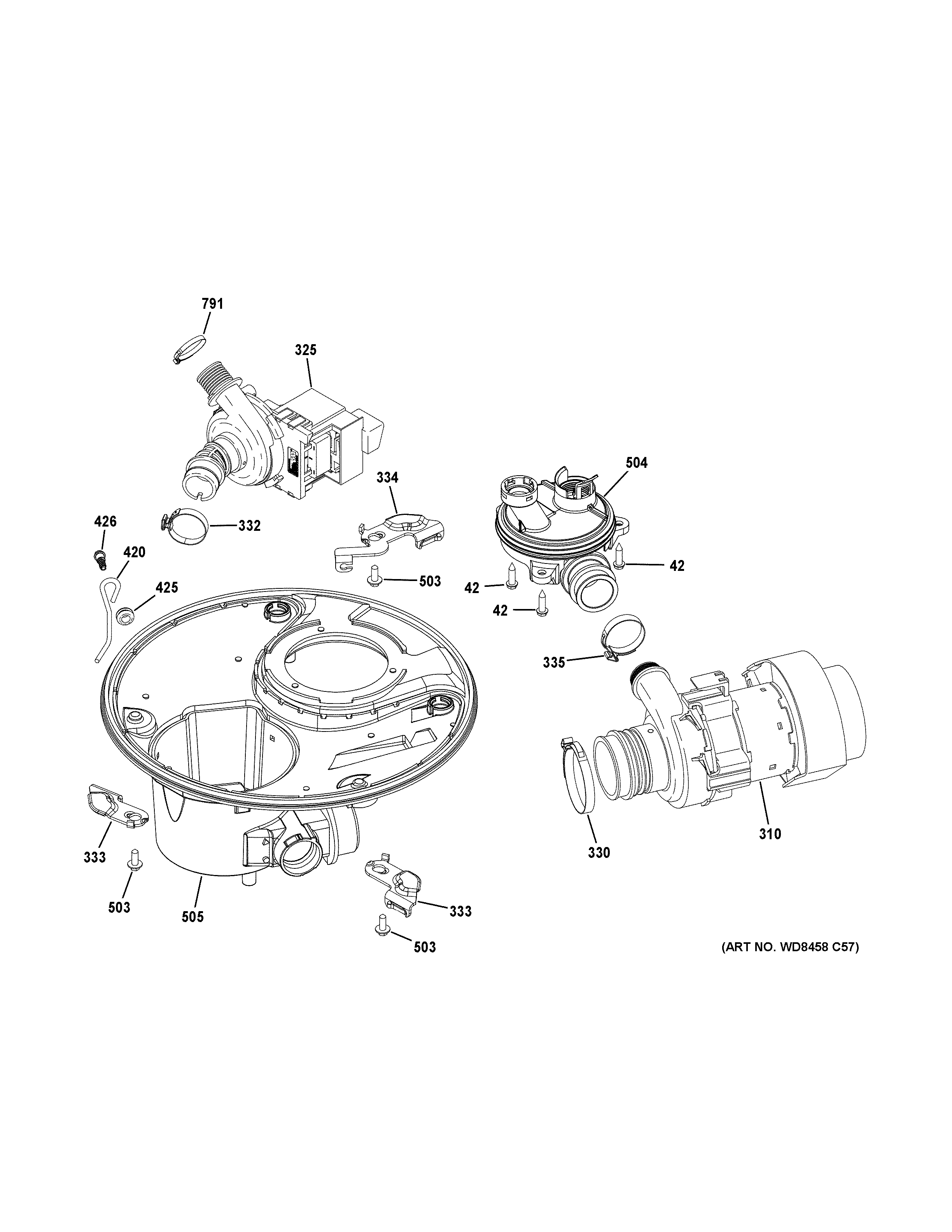

XDF300PGN0BB SUMP & MOTOR MECHANISM

XDF300PGN0BB SUMP & MOTOR MECHANISM

Written by

in

XDF300PGN0BB SUMP & MOTOR MECHANISM

Products

PositionProduct
42SCREW #8-3/4 L HX HD SS
310WD19X24828 GE Dishwasher Wash Pump Kit
325WD19X24829 GE Dishwasher Drain Pump Kit
330WD35X10382 GE Dishwasher Piranha Clamps Kit
333WD01X10632 GE Dishwasher Latch Cam
334WD01X10575 GE Dishwasher Latch Cam
420WD01X25218 GE Dishwasher Drain Pump Hanger
425WD01X10101 GE Dishwasher Pump Grommet
426WD02X22781 GE Dishwasher Screw 10-18 x 5/8
503WB01T10103 GE Oven Screw 10-16 AB HXW .532
504WD19X25278 GE Dishwasher Diverter Assembly Kit
505WD18X21679 GE Dishwasher Sump Manifold
791WD01X24246 GE Dishwasher Clamp
