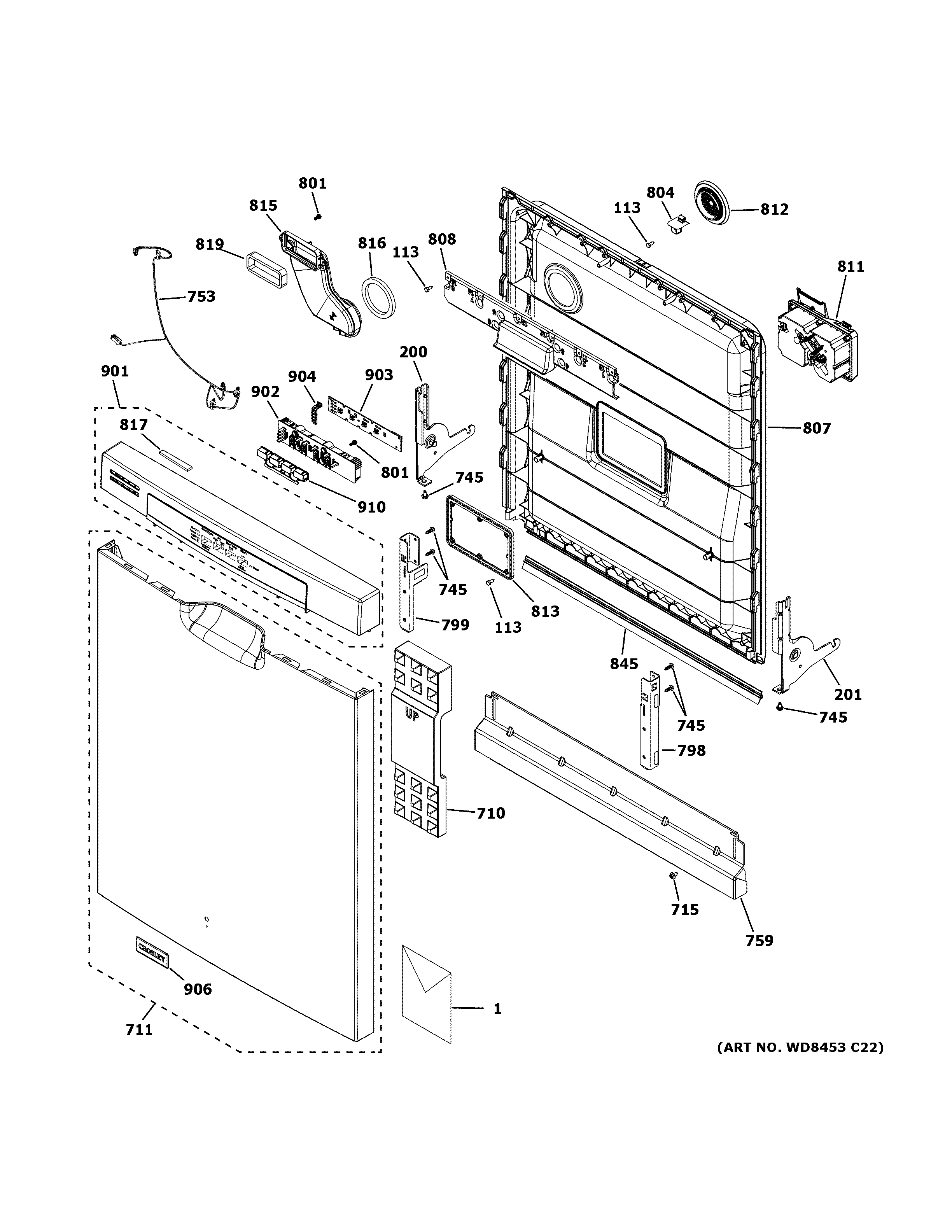

XDF300PGN4WW ESCUTCHEON & DOOR ASSEMBLY

XDF300PGN4WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

XDF300PGN4WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1PM OWNERS MANUAL
1PM QUICK OWNERS MANUAL
1PM MINI MANUAL AND WIRING
1PM INSTALL INSTRUCTIONS
1INSERT MINI MANUAL
113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly
201WD14X20129 GE Dishwasher Left Door Hinge Assembly
710WD01X10578 GE Dishwasher Foam Door Block
711WHITE OUTER DOOR ASM
715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw
745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S
753WD21X26039 GE Dishwasher UI Harness Assembly
759WD27X26120 GE Dishwasher White Toekick Assembly
798WD01X22512 GE Dishwasher Hinge Support Bracket
799WD01X22513 GE Dishwasher Hinge Support Bracket
801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
804WD13X10071 GE Dishwasher Door Strike
807WD31X24834 GE Dishwasher Inner Door Service Assembly
808WD12X22787 GE Dishwasher Pocket Handle
811DETERGENT MODULE
812WD12X10471 GE Dishwasher Grey Hybrid Vent
813WD12X10420 GE Dishwasher Detergent Plate
815WD12X26043 GE Dishwasher Air Diverter Assembly
816DOOR VENT SEAL
817WD08X21954 GE Dishwasher Foam Vent Insert
819GASKET VENT
845WD08X21894 GE Dishwasher Door Gasket
901WD34X24393 GE Dishwasher Control Panel Assembly WW
902WD12X24390 GE Dishwasher Housing
903WD21X26053 GE Dishwasher Configured Service 4 Button
904WD12X24398 GE Dishwasher Light Shield
906CROSLEY BADGE ASM
910WD09X24379 GE Button Tree
