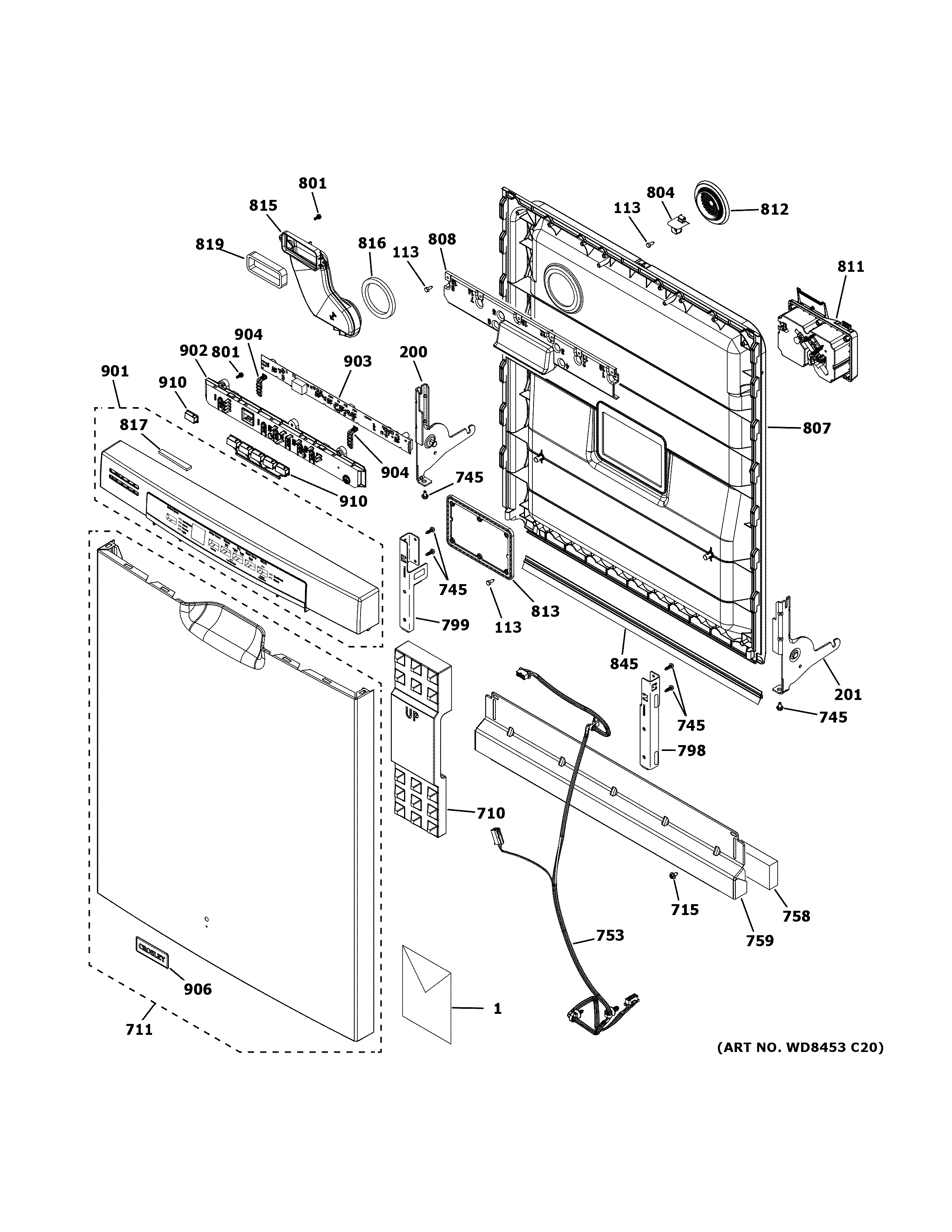

XDF400PGN0BB ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T11:31:47+00:00XDF400PGN0BB ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1PM OWNERS MANUAL1PM QUICK OWNERS MANUAL1PM MINI MANUAL AND WIRING1PM INSTALL INSTRUCTIONS113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly201WD14X20129 GE Dishwasher Left Door Hinge Assembly710WD01X10578 GE Dishwasher Foam Door Block711BLACK OUTER DOOR ASM715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S753DOOR HARNESS ASM UI758WD27X21334 GE Insulation759TOE KICK798WD01X22512 GE Dishwasher Hinge Support Bracket799WD01X22513 GE Dishwasher Hinge Support Bracket801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI804WD13X10071 GE Dishwasher Door Strike807WD31X24834 GE Dishwasher Inner Door Service Assembly808WD12X22787 GE Dishwasher Pocket Handle811DETERGENT MODULE812WD12X10471 GE Dishwasher Grey Hybrid Vent813WD12X10420 GE Dishwasher Detergent Plate815WD12X26044 GE Dishwasher Air Diverter Assembly816DOOR VENT SEAL817WD08X21954 GE Dishwasher Foam Vent Insert819GASKET VENT845WD08X21894 GE Dishwasher Door Gasket901WD34X24417 GE Dishwasher Control Panel Assembly BB902WD12X24415 GE Dishwasher UI Board Housing903CONFIGURED UI BOARD904WD12X24398 GE Dishwasher Light Shield906CROSLEY BADGE ASM910WD09X24403 GE Dishwasher Button Tree
