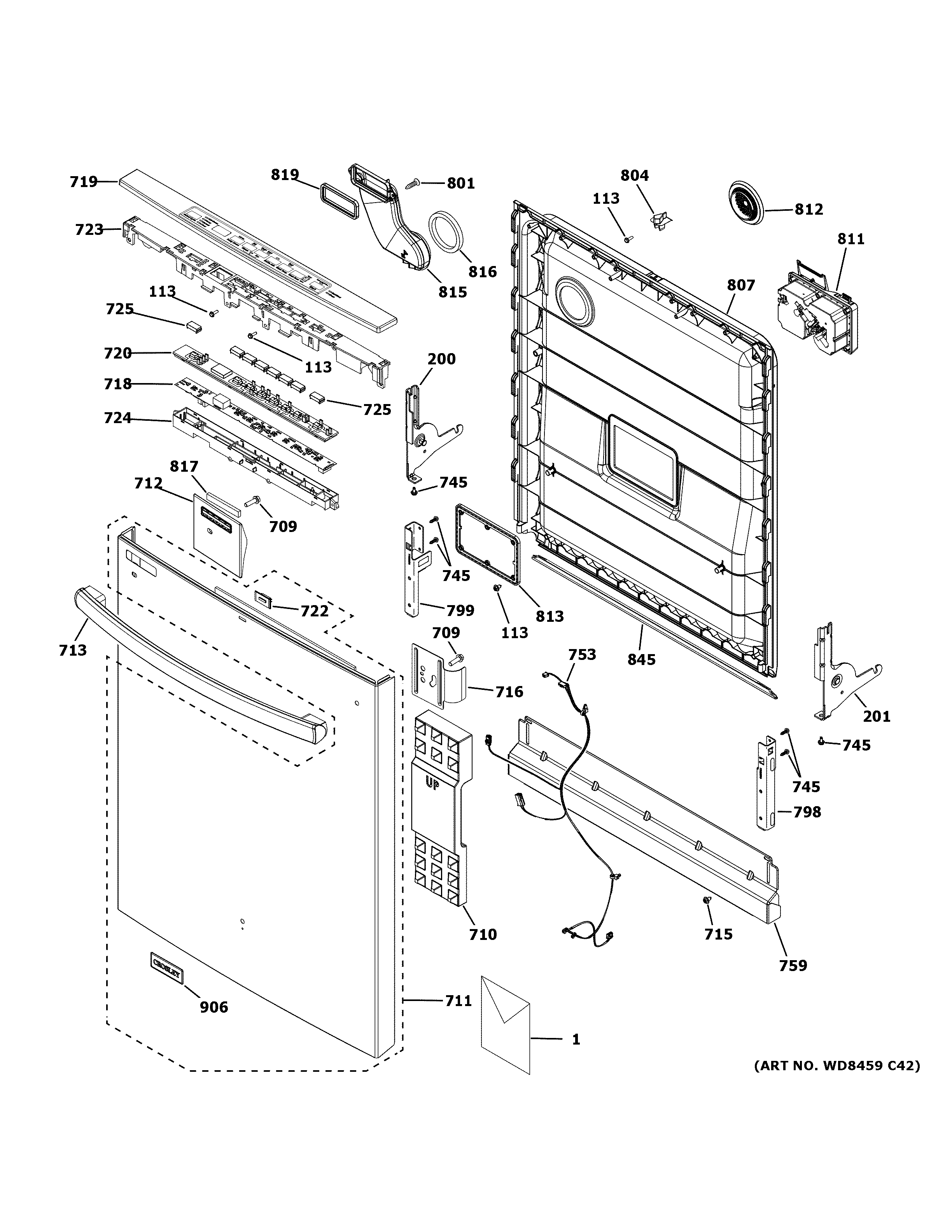

XDT500PSP5SS ESCUTCHEON & DOOR ASSEMBLYadmin2025-04-26T11:27:38+00:00XDT500PSP5SS ESCUTCHEON & DOOR ASSEMBLY ProductsPositionProduct1INSERT MINI MANUAL1PM INSTALL INSTRUCTIONS1PM MINI MANUAL AND WIRING1PM QUICK START GUIDE1PM OWNERS MANUAL113WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW200WD14X20128 GE Dishwasher Right Door Arm Hinge Assembly201WD14X20129 GE Dishwasher Left Door Hinge Assembly709WD01X20934 GE Dishwasher Screw 1/4-28 FL IHXW 15/16710WD01X10578 GE Dishwasher Foam Door Block711STAINLESS OUTER DOOR ASM712WD12X24081 GE Dishwasher Vent Adapter Assembly713WD09X25560 GE Dishwasher Stainless Steel Handle715WD02X10220 GE Dishwasher Hex Head 10-32 3/8" Screw716WD01X20135 GE Dishwasher Handle Bracket718WD21X28002 GE Dishwasher Service Configured 8 Button719CONSOLE COVER AND GRAPICS ASM720WD12X23316 GE Dishwasher Silicone Light Pipe722WD09X20066 GE Dishwasher Lens and Adhesive Assembly723WD12X20184 GE Dishwasher Top Control Console724WD12X10470 GE Dishwasher Bottom Housing725WD09X24425 GE Dishwasher Button745WD01X22514 GE Dishwasher Screw 10-32 GX IHXW 9/16 S753WD21X26060 GE Dishwasher UI Harness Assembly759TOE KICK798WD01X22512 GE Dishwasher Hinge Support Bracket799WD01X22513 GE Dishwasher Hinge Support Bracket801WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI804WD13X10071 GE Dishwasher Door Strike807WD31X24834 GE Dishwasher Inner Door Service Assembly811DETERGENT MODULE812WD12X10471 GE Dishwasher Grey Hybrid Vent813WD12X10420 GE Dishwasher Detergent Plate815WD12X26044 GE Dishwasher Air Diverter Assembly816DOOR VENT SEAL817WD08X10102 GE Foam Blanking Top Control819GASKET VENT845WD08X21894 GE Dishwasher Door Gasket906CROSLEY BADGE ASM
