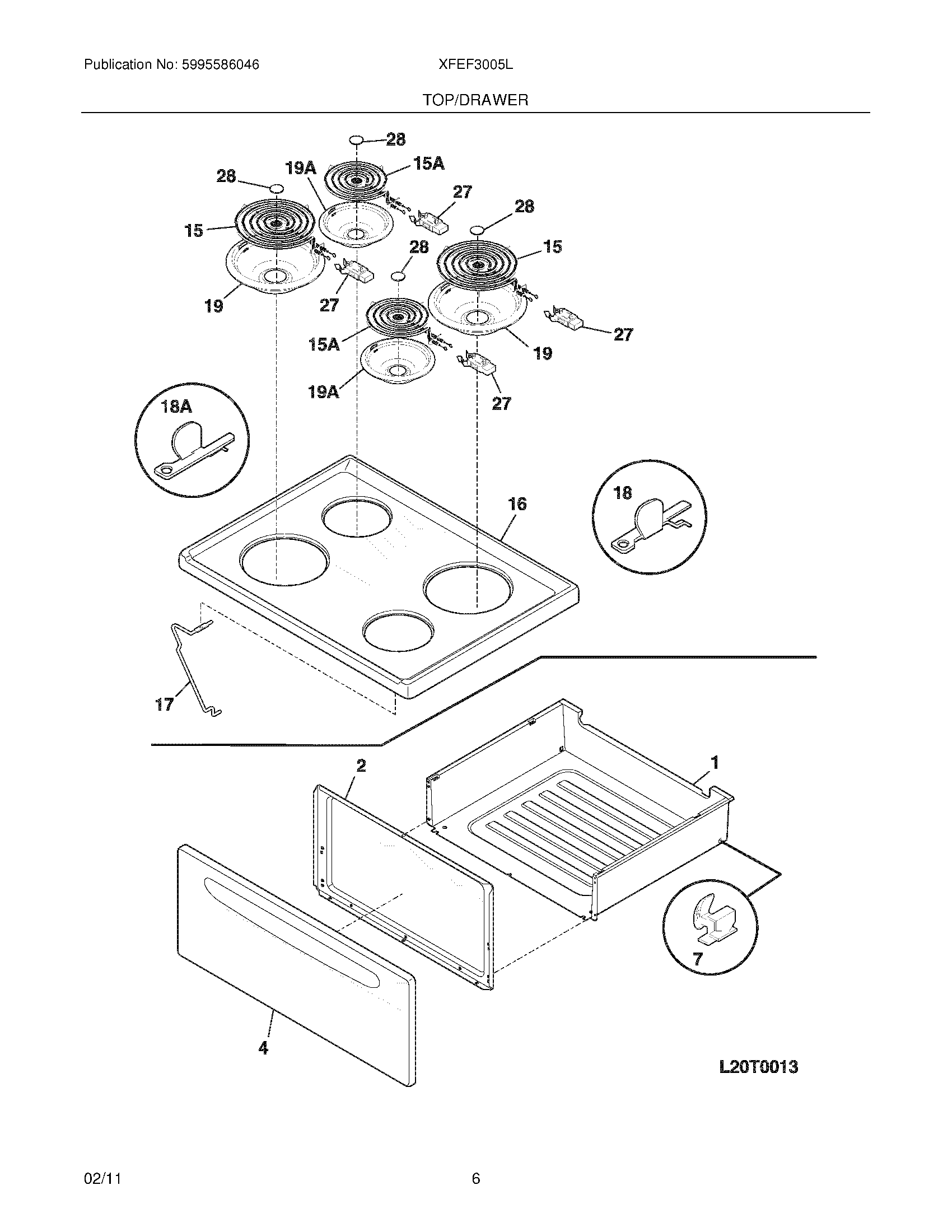

XFEF3005LQD 07 – TOP/DRAWER

Products

Position	Product
NI	316580408 Frigidaire Oven Harness
NI	5308014215 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304511288 Frigidaire Oven Liner
4	WCI 316231309
7	316407402 Frigidaire Range Drawer Glide
15	316442300 Frigidaire Oven 2100W Coil Element 8
15A	318372210 Frigidaire Oven Range 6" 1250W Surface Element
16	WCI 316245405
17	WCI 316066900
18	BRACKET-HINGE,MAIN TOP RH
18A	BRACKET-HINGE,MAIN TOP LH
19A	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
