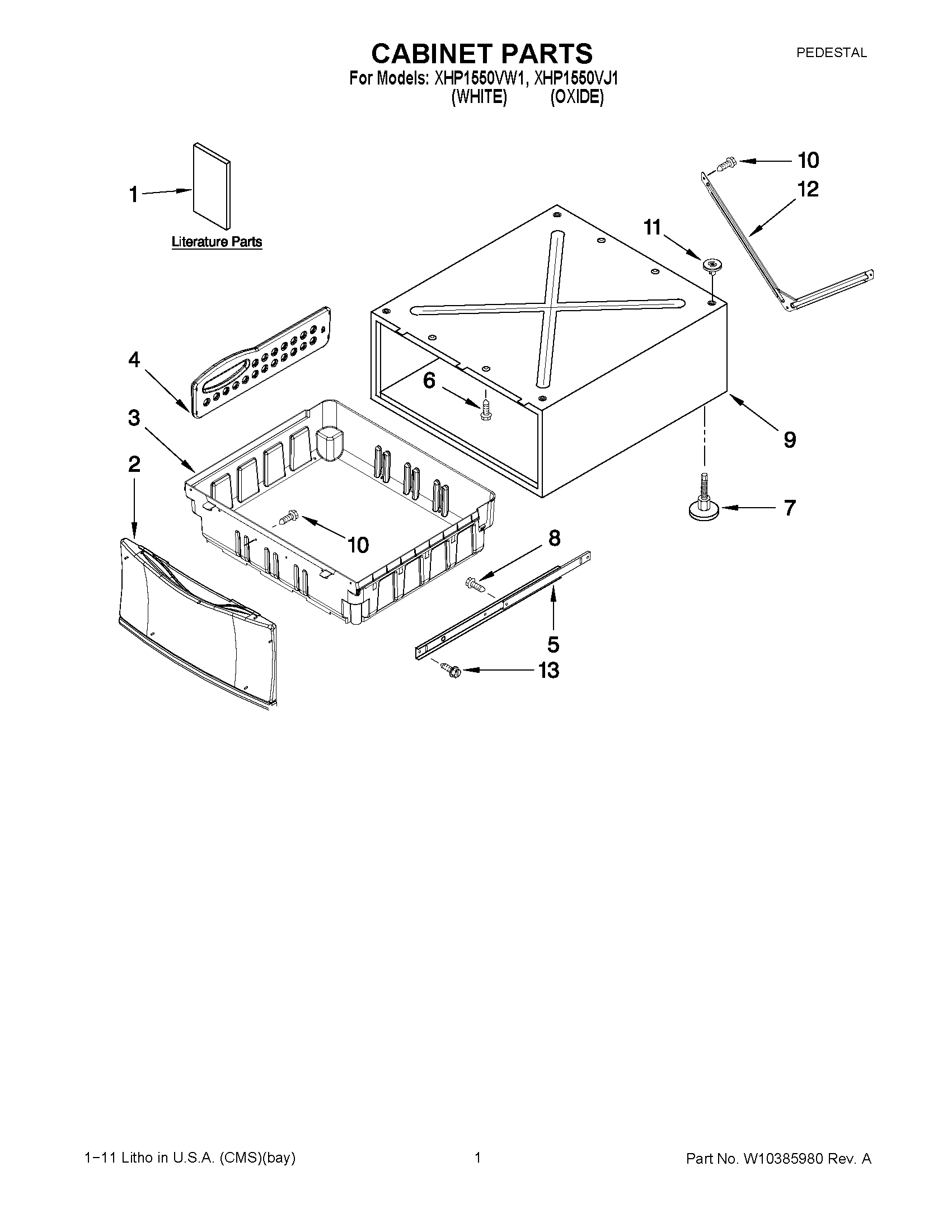

XHP1550VJ1 01 – CABINET PARTS

Products

Position	Product
NI	350930 Whirlpool White Spray Paint
NI	WPL W10162090
NI	WPL W10157756
NI	W10202940 Whirlpool Touch-Up
NI	8212604 Whirlpool Red Merlot Touch-Up Paint
NI	PAINT, TOUCH-UP (1/2oz.) (Emerald Green Metalli
NI	WPL W10218249
NI	W10202939 Whirlpool Touch Up
NI	72032 Whirlpool Touch Up Paint Black
NI	285006 Whirlpool Spray
NI	72017 Whirlpool Appliance Touch-Up Paint White
NI	350938 Whirlpool Spray Gun
NI	WPL 8212605
1	Installation Instructions
2	Drawer Front Assembly (White)
2	Drawer Front Assembly (Oxide)
3	W11047790 Whirlpool Drawer
4	WPW10189999 Whirlpool Divider
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP3388228 Whirlpool Screw
9	CABINET (NOT A SERVICEABLE PART)
10	WPW10213953 Whirlpool Screw
11	WP8537982 Whirlpool Pad
12	WPW10169550 Whirlpool Brace
13	WP9740849 Whirlpool Screw
