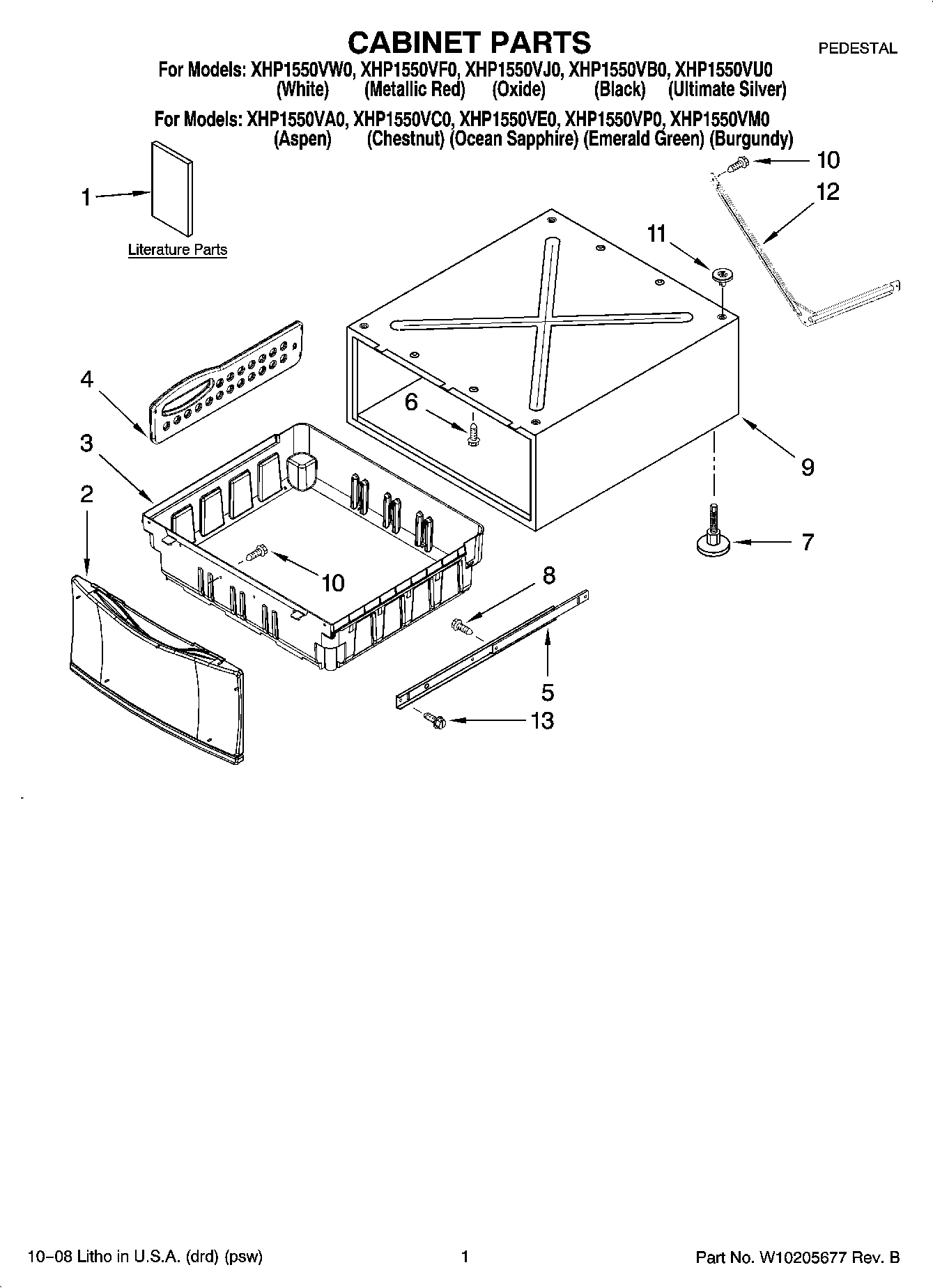

XHP1550VU0 01 – CABINET PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL W10218249
	PAINT, TOUCH-UP (1/2oz.) (Emerald Green Metalli
	8212604 Whirlpool Red Merlot Touch-Up Paint
	Optional Parts Not Included
	W10202940 Whirlpool Touch-Up
	WPL W10157756
	WPL W10162090
	WPL 8212605
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	285006 Whirlpool Spray
	W10202939 Whirlpool Touch Up
	72032 Whirlpool Touch Up Paint Black
1	Installation Instructions
2	Drawer Front Assembly (White)
2	Drawer Front Assembly (Ebony)
2	Drawer Front Assembly (Aspen)
2	Drawer Front Assembly (Ultimate Silver)
2	Drawer Front Assembly (Chestnut)
2	Drawer Front Assembly (Ocean Sapphire)
2	Drawer Front Assembly (Metallic Red)
2	Drawer Front Assembly (Oxide)
2	Drawer Front Assembly (Emerald Green)
2	Drawer Front Assembly (Burgundy)
3	W11047790 Whirlpool Drawer
4	WPW10189999 Whirlpool Divider
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP3388228 Whirlpool Screw
9	Cabinet (Not Serviced)
10	WPW10213953 Whirlpool Screw
11	WP8537982 Whirlpool Pad
12	WPW10169550 Whirlpool Brace
13	WP9740849 Whirlpool Screw
