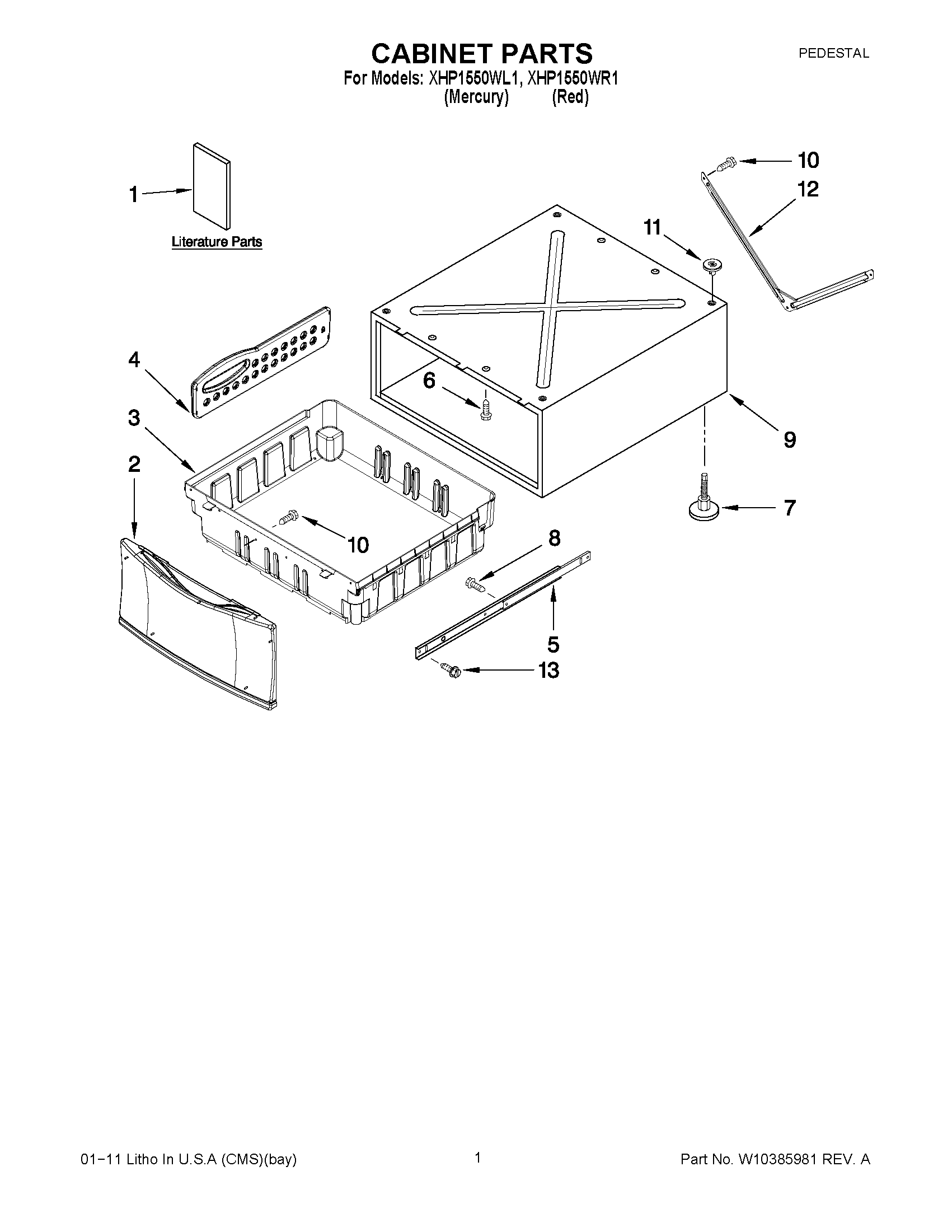

XHP1550WR1 01 – CABINET PARTS

Products

PositionProduct
1Installation Instructions
2Drawer Front Assembly (Red)
2Drawer Front Assembly (Mercury)
3W11047790 Whirlpool Drawer
4WPW10189999 Whirlpool Divider
5WP8578394 Whirlpool Slide Assembly
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
8WP3388228 Whirlpool Screw
9CABINET (NOT A SERVICEABLE PART)
10WPW10213953 Whirlpool Screw
11WP8537982 Whirlpool Pad
12WPW10169550 Whirlpool Brace
13WP9740849 Whirlpool Screw
