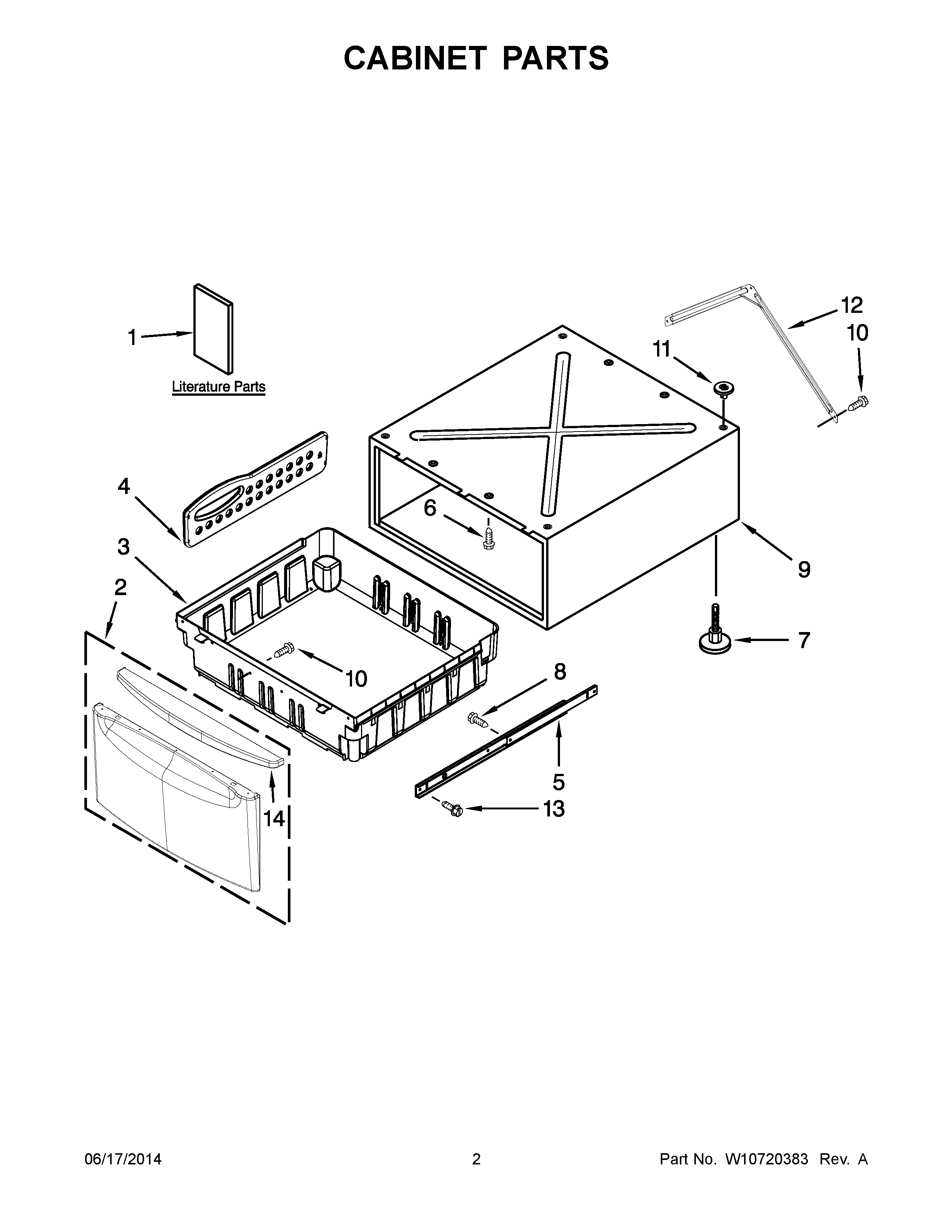

XHPC155YBD0 02 – CABINET PARTS

XHPC155YBD0 02 – CABINET PARTS

Written by

in

XHPC155YBD0 02 – CABINET PARTS

Products

PositionProduct
NI350930 Whirlpool White Spray Paint
NI350938 Whirlpool Spray Gun
NI72017 Whirlpool Appliance Touch-Up Paint White
NICABINET (NOT A SERVICEABLE PART)
NI285006 Whirlpool Spray
NIPAINT, TOUCH-UP (1/2OZ. ANTHRACITE)
NIW10268217 Whirlpool Touch Up
1INSTALLATION INSTRUCTIONS
2DRAWER FRONT ASSEMBLY (BLACK)
3W11047790 Whirlpool Drawer
4WPW10189999 Whirlpool Divider
5WP8578394 Whirlpool Slide Assembly
6WPW10346892 Whirlpool Screw
7WP8563585 Whirlpool Foot Assembly
8WP3388228 Whirlpool Screw
10WPW10213953 Whirlpool Screw
11WP8537982 Whirlpool Pad
12WPW10169550 Whirlpool Brace
13WP9740849 Whirlpool Screw
14WPW10243437 Whirlpool Handle
