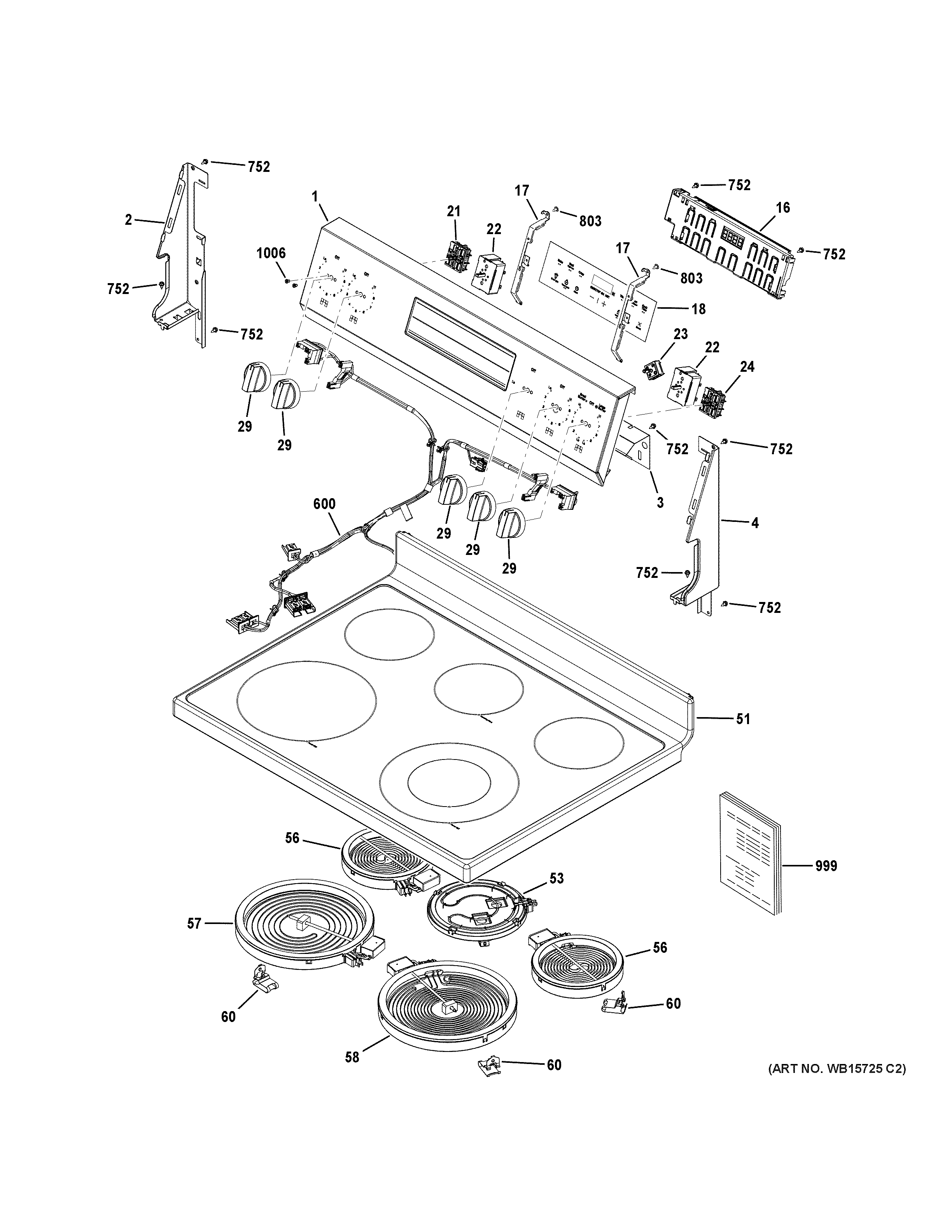

XRF500PV1BB CONTROL PANEL & COOKTOP

Products

Position	Product
1	CONTROL PANEL-BLACK
2	LH END PLATE- BLACK
3	HEAT SHIELD
4	RH END PLATE-BLACK
16	OBC1 CONTROL (FLASHED)
17	CONTROL BRACKET
18	OVERLAY
21	WB24X37345 GE Infinite Control Switch
22	WB24T10022 GE Oven Infinite Switch
23	WB24X40051 GE Rotary Switch
24	WB24X25013 GE Oven Control Infinite Switch
29	KNOB
51	WB62X47097 GE Maintop
53	WARMER ELEMENT
56	WB30X47331 GE 5.5-Inch Radiant Element
57	9 IN RADIANT ELEMENT
58	RADIANT ELEMENT 9 IN DUAL
60	RETAINER CLIP
600	MAINTOP HARNESS
752	WH2X930 GE Screw
803	WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
999	PM MINI MANUAL AND WIRING
999	PM INSTALL INSTRUCTIONS
999	PM OWNERS MANUAL
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
