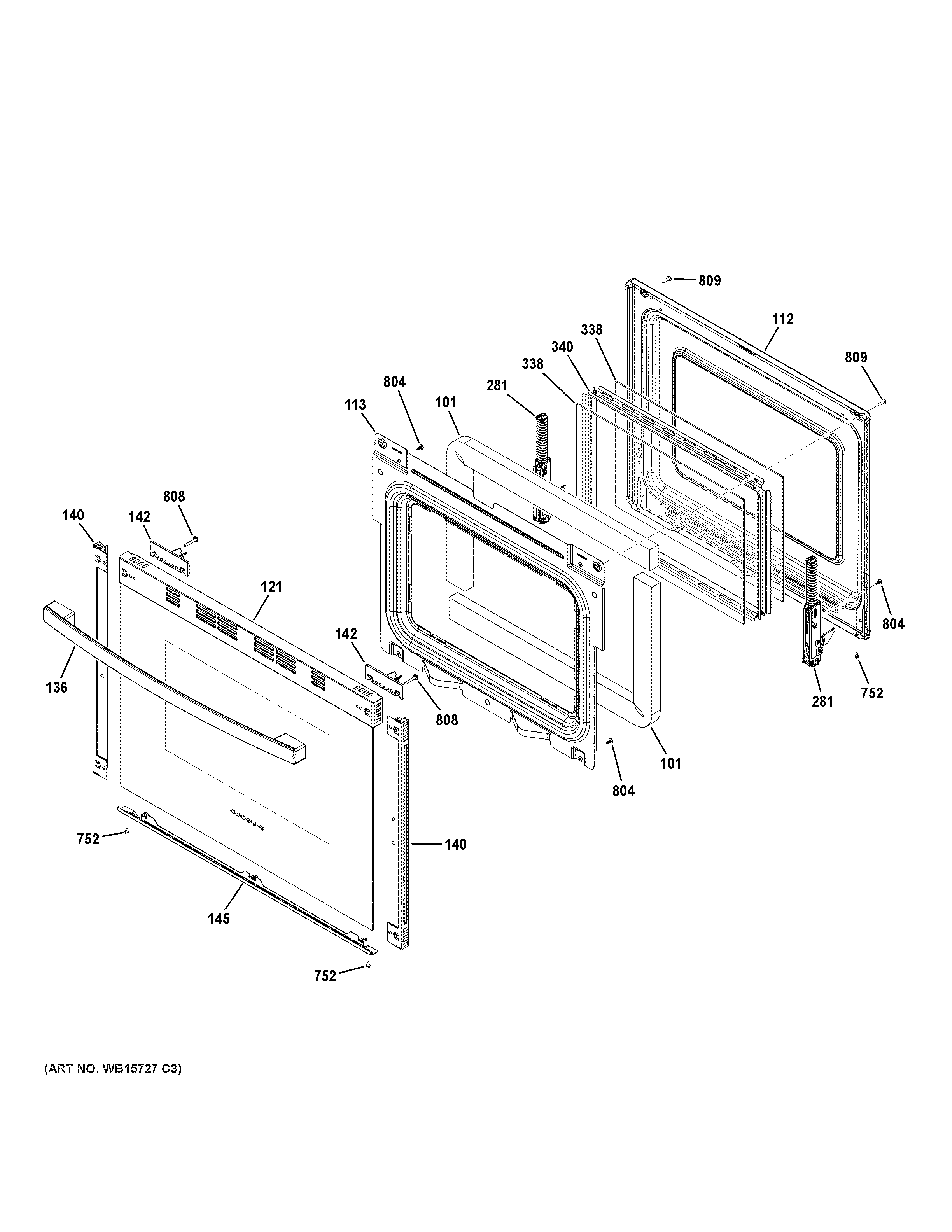

XRF500PV1BB DOOR

Products

Position	Product
101	DOOR INSULATION
112	WB56X47297 GE Oven Door Liner
113	INSULATION RETAINER
121	OUTER DOOR GLASS AND TRIM
136	HANDLE-BLACK
140	OUTER DOOR SIDE TRIM-BLACK
142	WB02X47307 GE Handle Spacer
145	OUTER DOOR BTM TRIM-BLACK
281	HINGE
338	WB56X47992 GE Inner Door Glass
340	WINDOW FRAME
752	WH2X930 GE Screw
804	SCR 10-32 TRWT-20 1/2 S
808	WH02X24116 GE Screw 10-32 GX 1.309 HWX
809	WB01X34649 GE Screw 10-18 Pl Tread 20 3/4 S
