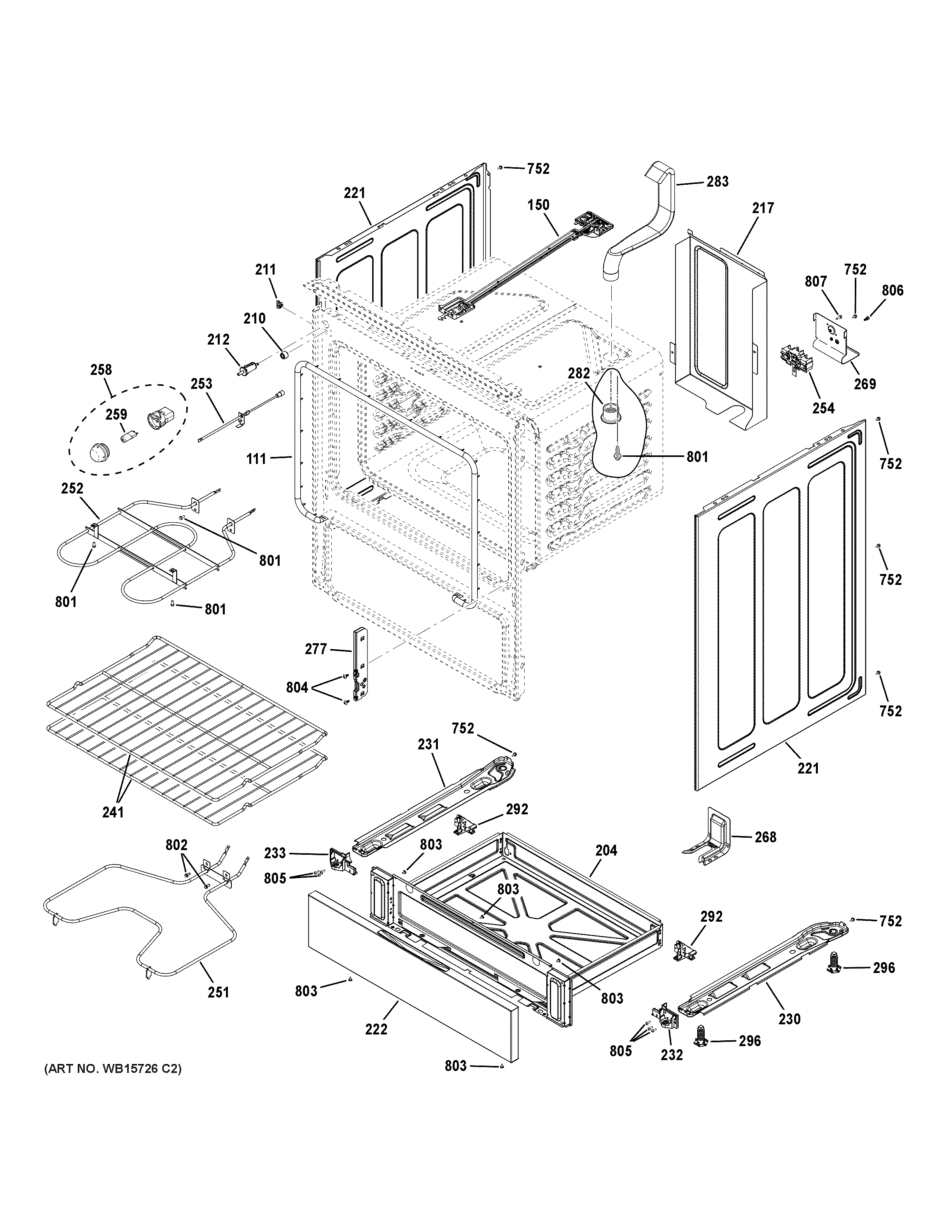

XRF500PV1SS BODY PARTS

XRF500PV1SS BODY PARTS

Written by

in

XRF500PV1SS BODY PARTS

Products

PositionProduct
111DOOR GASKET
150LATCH ASSEMBLY
204WB63X47308 GE Body Drawer
210BUMPER
211GROMMET
212WB24X27550 GE Oven Plunger Switch
217TERMINAL COVER
221SIDE PANEL-BLACK
222WB56X47277 GE Stainless Drawer Panel
230RAIL BASE RH
231RAIL BASE LH
232WB02X47103 GE Drawer Support
233WB02X47107 GE Left Drawer Support
241RACK
251BAKE ELEMENT
252BROIL ELEMENT
253OVEN TEMP SEMSOR
254TERMINAL BLOCK
258WB25X42688 GE Halogen Lamp Assembly
259WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
268ANTI-TIP BRACKET
269TERMINAL BLOCK BRACKET
277HINGE RECEIVER
282WB38X33648 GE Vent Tube
283VENT TUBE
292REAR DRAWER GUIDE
296WB02X10521 GE Oven Leveling Leg
752WH2X930 GE Screw
801SCREW
802WB1X536 GE Oven Screw
803WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
804SCR 10-32 TRWT-20 1/2 S
805WB01X34726 GE Screw 8-18 Ab Pnt-20
806WS02X10087 GE Screws 10-32 GX HXW 7/16 S
807SCR 8-32 TTGX IHXW 5/8 S
