XRF500PV1SS CONTROL PANEL & COOKTOP

XRF500PV1SS CONTROL PANEL & COOKTOP

Written by

in

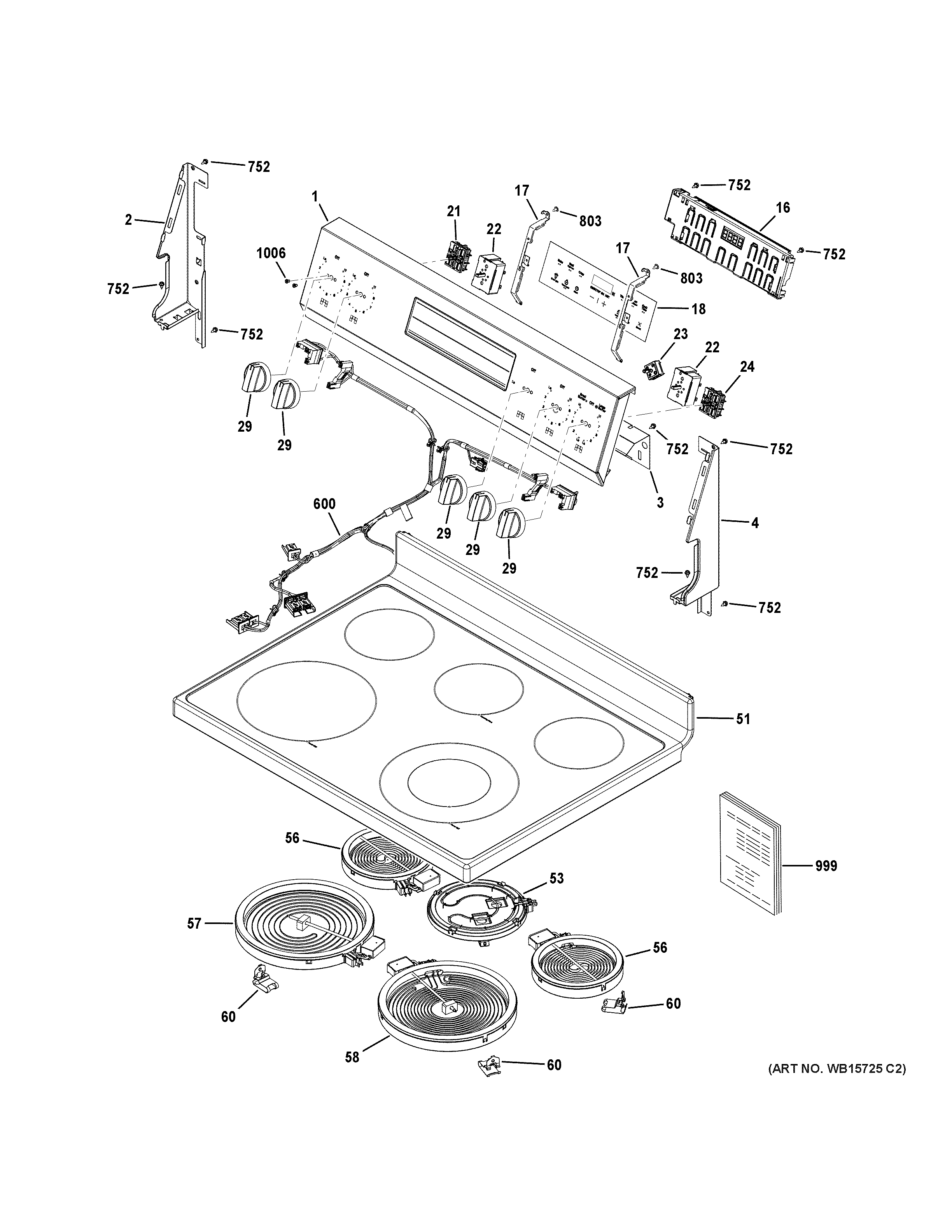

XRF500PV1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
1CONTROL PANEL-STAINLESS
2LH END PLATE- BLACK
3HEAT SHIELD
4RH END PLATE-BLACK
16OBC1 CONTROL (FLASHED)
17CONTROL BRACKET
18OVERLAY
21WB24X37345 GE Infinite Control Switch
22WB24T10022 GE Oven Infinite Switch
23WB24X40051 GE Rotary Switch
24WB24X25013 GE Oven Control Infinite Switch
29WB03X47127 GE Knob
51WB62X47097 GE Maintop
53WARMER ELEMENT
56WB30X47331 GE 5.5-Inch Radiant Element
579 IN RADIANT ELEMENT
58RADIANT ELEMENT 9 IN DUAL
60RETAINER CLIP
600MAINTOP HARNESS
752WH2X930 GE Screw
803WB01X48946 GE Screw 8-18 AB Trt-15 3/8"
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
