XRF500PV1WW DOOR

XRF500PV1WW DOOR

Written by

in

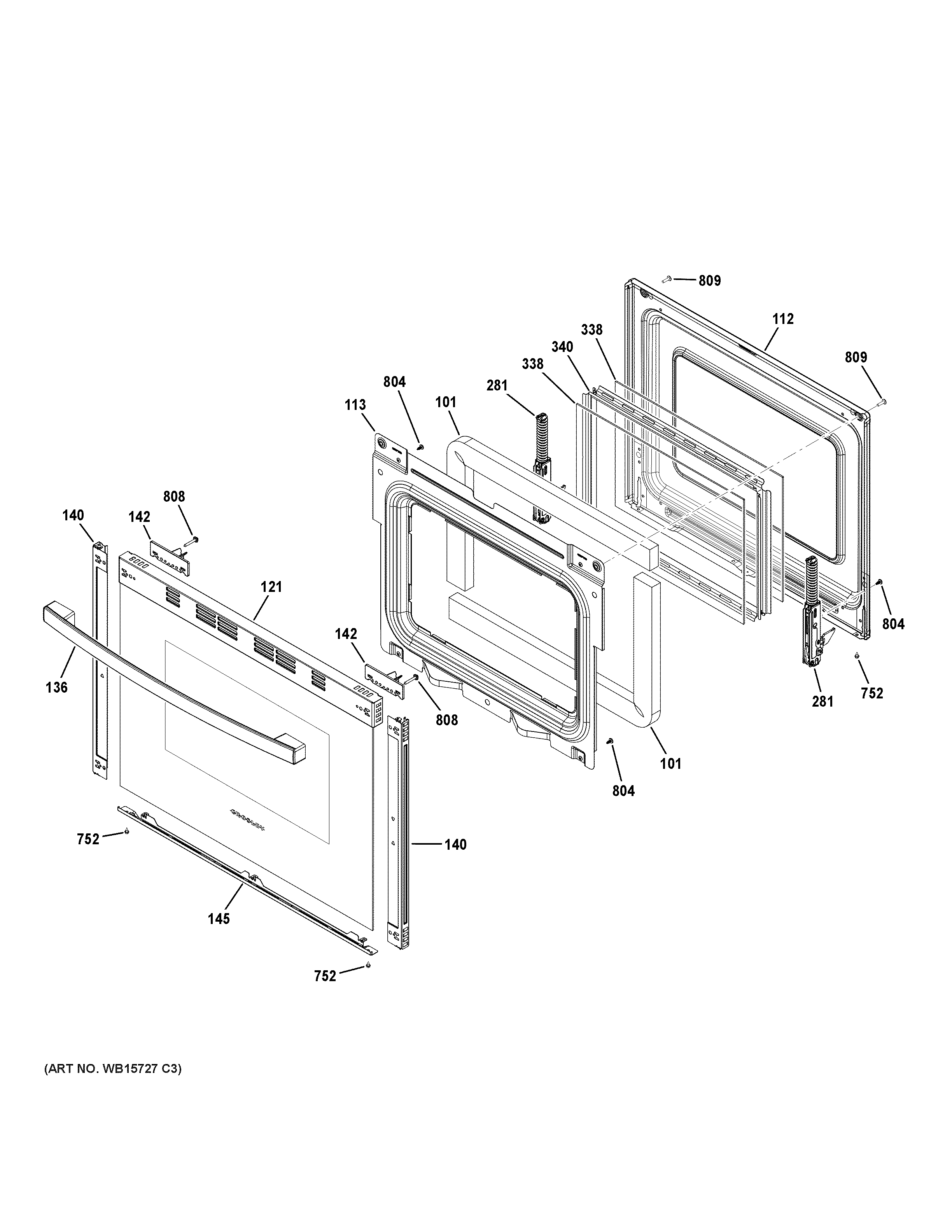

XRF500PV1WW DOOR

Products

Position	Product
101	DOOR INSULATION
112	WB56X47297 GE Oven Door Liner
113	INSULATION RETAINER
121	OUTER DOOR GLASS AND TRIM
136	WB15X47292 GE White Handle
140	OUTER DOOR SIDE TRIM-WHITE
142	WB02X47307 GE Handle Spacer
145	OUTER DOOR BTM TRIM-WHITE
281	HINGE
338	WB56X47992 GE Inner Door Glass
340	WINDOW FRAME
752	WH2X930 GE Screw
804	SCR 10-32 TRWT-20 1/2 S
808	WH02X24116 GE Screw 10-32 GX 1.309 HWX
809	WB01X34649 GE Screw 10-18 Pl Tread 20 3/4 S
