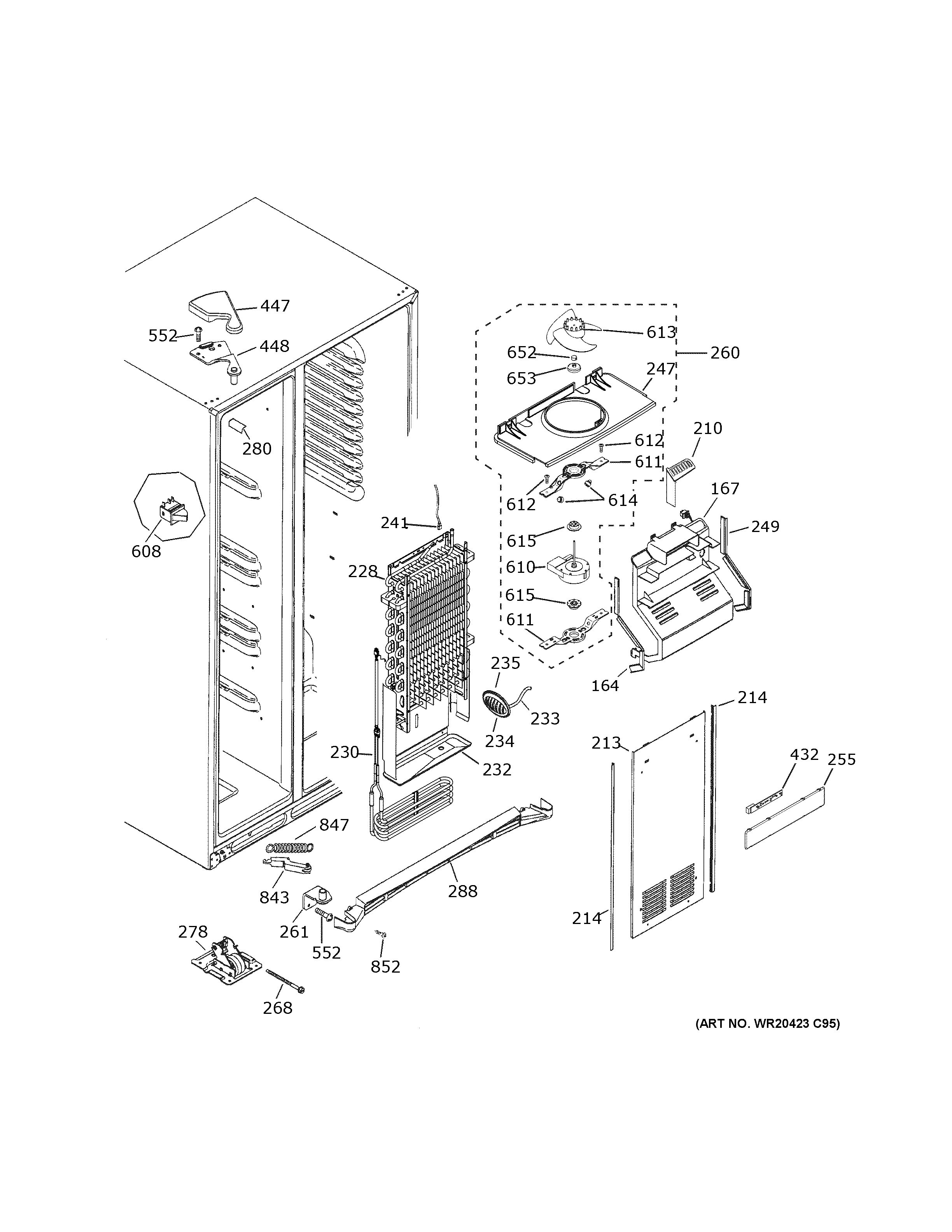

XSS25GGPJCWW FREEZER SECTION

XSS25GGPJCWW FREEZER SECTION

Written by

in

XSS25GGPJCWW FREEZER SECTION

Products

PositionProduct
164WR14X10164 GE Refrigerator Case Gasket
167WR17X39946 GE Refrigerator Evaporator Fan Plenum
210WR74X10216 GE Refrigerator Plenum Extension
213COVER EVAPORATOR FRONT
214WR14X10072 GE Refrigerator Gasket Evaporator CE01
228WR85X39480 GE Evaporator
230WR51X40006 GE Defrost Heater
232WR17X10811 GE Refrigerator Shield Assembly Trough
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
241WR55X10025 GE Refrigerator Temperature Sensor
247WR60X40865 GE Fan Orifice Assembly
249WR14X10165 GE Refrigerator Gasket Plenum
255WR17X30670 GE Refrigerator Insert Plenum
260WR60X40774 GE Refrigerator Orifice & Fan Motor
261WR13X10137 GE Refrigerator Bottom Hinge
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X10640 GE Refrigerator White Cap Corner OC
288WR74X10271 GE Refrigerator Base Grille
432WR55X26671 REFRIGERATOR LED LIGHT BOARD
447WR02X10687 GE Refrigerator Cover Hinge
448WR13X10216 GE Top Hinge and Pin Assembly
552WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
608GEN WR23X10733
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR17X12635 GE Refrigerator Bottom Bracket Evaporator
612WR01X10621 GE Refrigerator Screw 8-18 DG TRT20 5/8 S
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
843WR11X10008 GE Refrigerator Lever Assembly
847WR1X2027 GE Refrigerator Spring Closure
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
