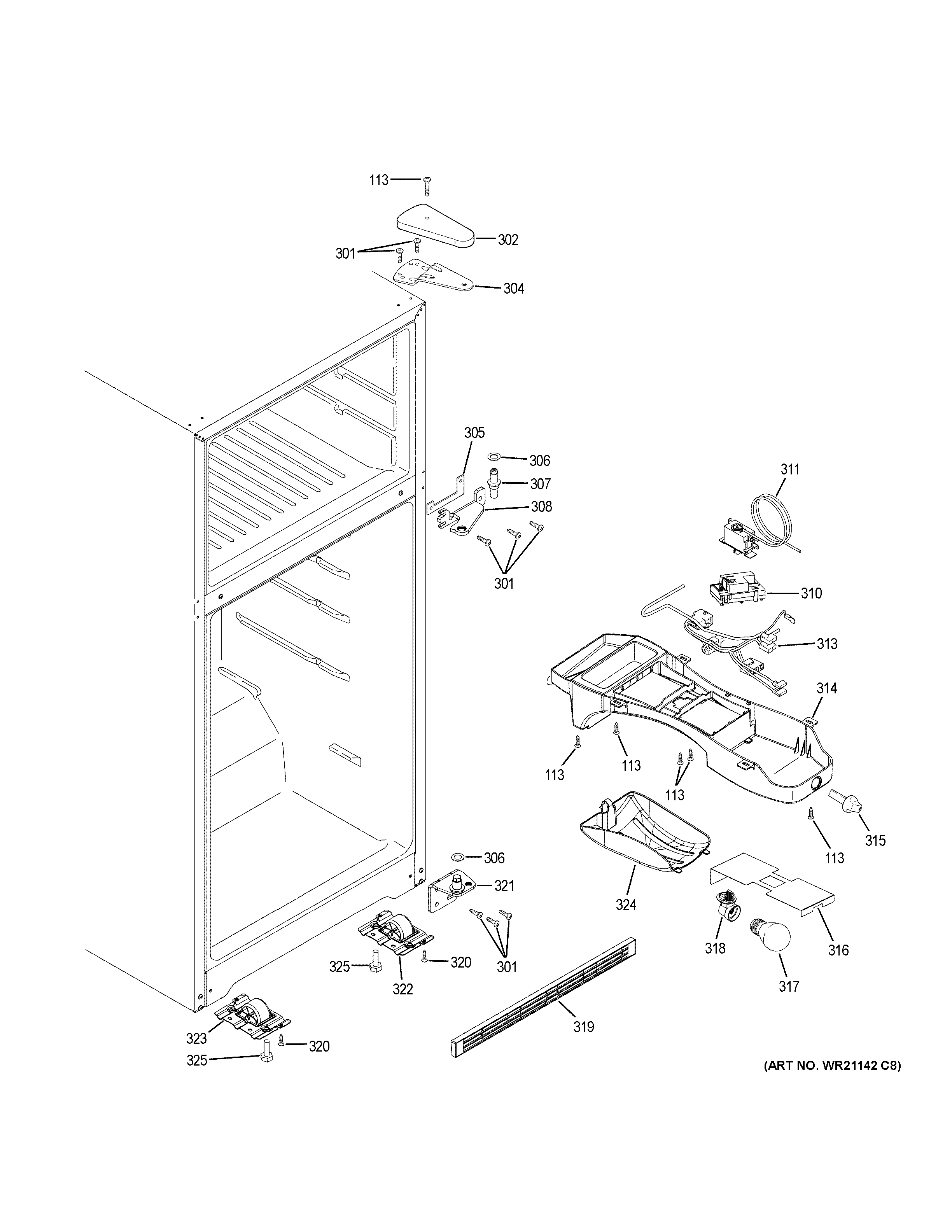

XTS21FGKBBB FRESH FOOD SECTION

XTS21FGKBBB FRESH FOOD SECTION

Written by

in

XTS21FGKBBB FRESH FOOD SECTION

Products

PositionProduct
113WR01X21151 GE 10-16 Ab Trp 3/4 Nbs Refrigerator Screw
301WR01X27335 GE Refrigerator M6 x 16mm Screw
302TOP HINGE COVER BLACK
304WR13X27462 GE Refrigerator Top Hinge
305WR13X27290 GE Refrigerator Center Hinge Shim
306WR01X27360 GE Refrigerator Hinge Pin Washer
307WR13X27432 GE Refrigerator Center Hinge Pin
308WR13X27463 GE Refrigerator Center Hinge UNPAINTED
310WR09X28646 GE Refrigerator Defrost Control Board
311WR09X30047 GE Refrigerator Temperature Control
313WR55X27421 GE Refrigerator Cold Control Harness Socket
314HOUSING COLD CONTROL
315WR02X27312 GE Refrigerator Shelf Pad
316SHIELD DEFLECTOR
317WR01X29190 GE Refrigerator LED Bulb
318SOCKET LAMP
319WR74X27447 GE Refrigerator Kickplate Black 21
320WR01X27331 GE Refrigerator Screw 1/4" x 3/4"
321HINGE BOTTOM
322WHEEL MOBILITY ASM RH
323WR02X27362 GE Refrigerator Left-Hand Wheel Mobility Assembly
324LIGHT COVER
325LEVELING LEG
