XUD27GSSM0WW CONTROLS & BACKSPLASH

XUD27GSSM0WW CONTROLS & BACKSPLASH

Written by

in

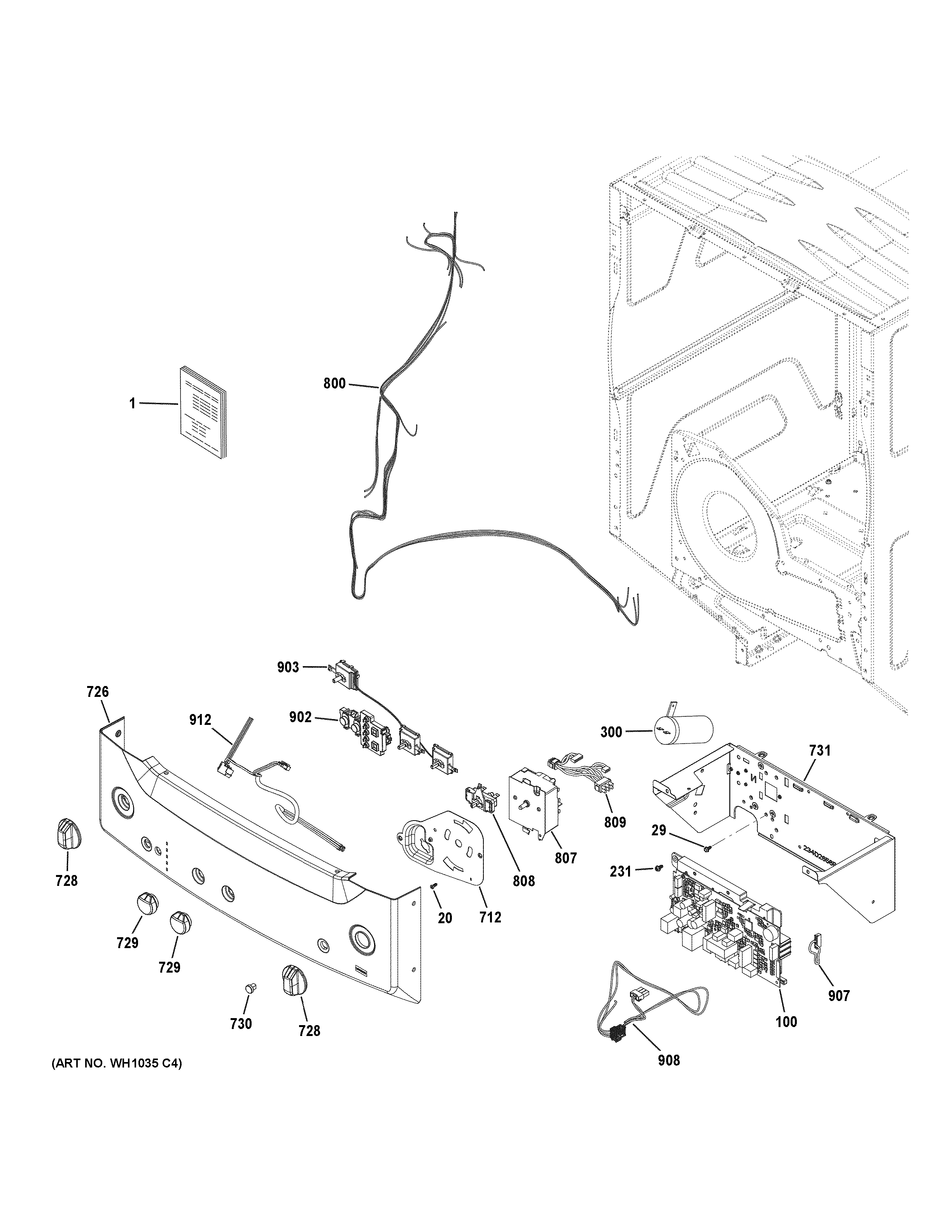

XUD27GSSM0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1PUB NUMBER MANUAL USE & CARE
1PUB NUMBER PM INSTALLATION INSTRUCTION
1PUB NUMBER PM MINI MANUAL
20WE2M302 GE Screw
29WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
100BOARD & SUPPORT ASSEMBLY
231WE01X25535 GE Screw
300WH12X27299 GE Capacitor
712WE19M1696 GE Control Support
726WE20X28560 GE Control Panel and HT Assembly
728WE04X23115 GE Control Knob Assembly
729WE04X23116 GE Rotary Knob Assembly
730WE04X27654 GE Assembly Start Button
731WE04X27287 GE 27" Enclosure Board
800WE08X29056 GE Dryer Main Harness NV Gas 27
807WE04X22654 GE Washer Timer
808PUSH TO START SWITCH
809WE26M362 GE UI Harness Assembly
902UI BOARD GE ASM
903WH18X27241 GE Selector Assembly
907WE15X27302 GE Jumper Harness 27"
908WE15X27306 GE Harness Extension
912WE15X27258 GE Communication Harness RJ45
