XUD27GSSM0WW TUB & BASKET ASSEMBLY

XUD27GSSM0WW TUB & BASKET ASSEMBLY

Written by

in

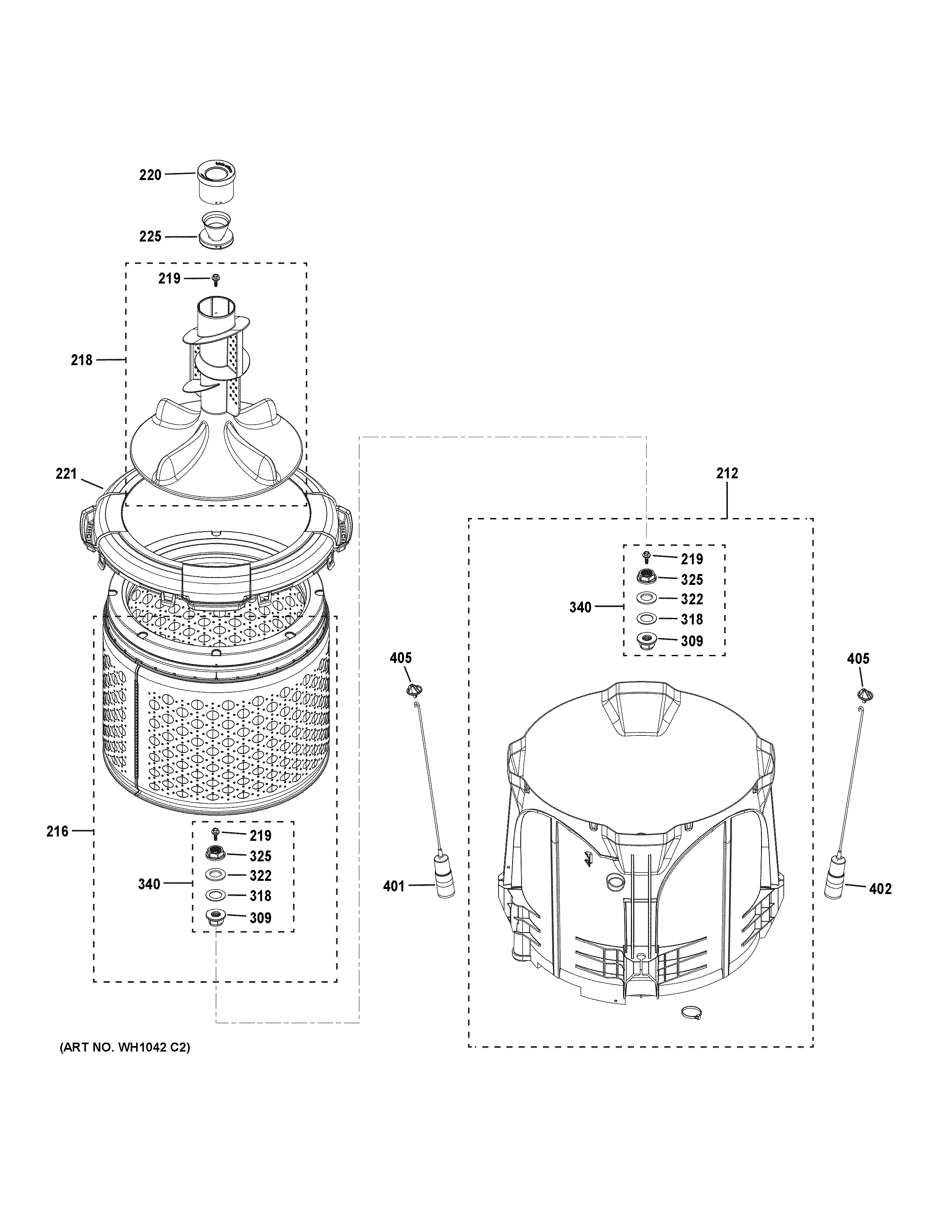

XUD27GSSM0WW TUB & BASKET ASSEMBLY

Products

PositionProduct
212WH49X27329 GE Washer Hub Nut Kit
216WH49X27327 GE Washer Basket Hub Nut Kit
218KIT AGITATOR 27 & BOLT
219WH01X27309 GE Agitator Screw
220WH03X27184 GE Cap Funnel Assembly
221WH44X27188 GE 27" Tub Cover
225WH03X27183 GE FSD Cup Funnel
309WE02X27298 GE Pulley Nut
318WH01X27307 GE Washer Hub
322WH01X27289 GE Washer Conical
325WE01X27288 GE Nut Hub
340WE49X28115 GE Hardware Kit
401WH16X27179 GE Washer Suspension Rod
402ROD ASSEMBLY 27"
405WH16X27178 GE Washer Upper Ball Joint
