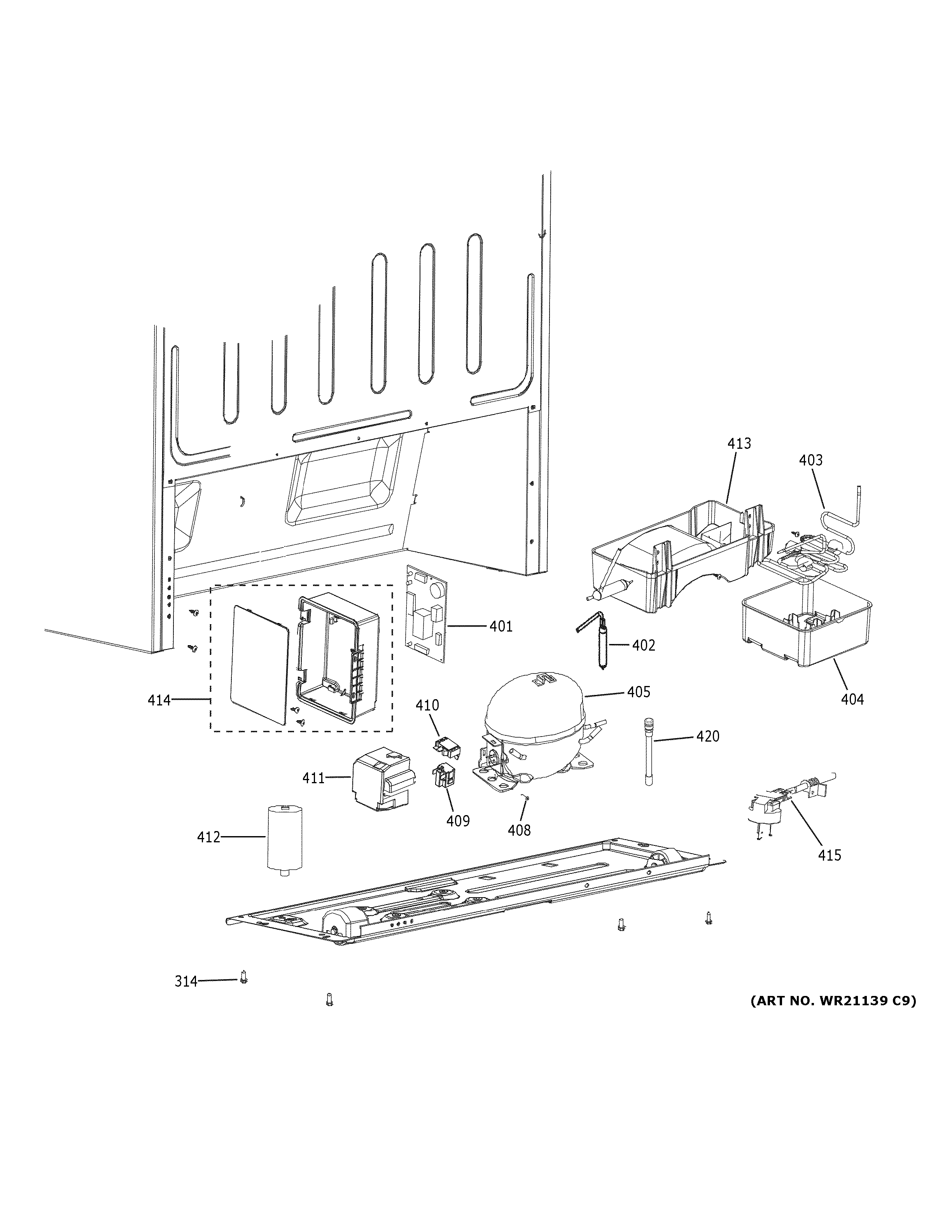

XUF14SMRBWW MACHINE COMPARTMENT

XUF14SMRBWW MACHINE COMPARTMENT

Written by

in

XUF14SMRBWW MACHINE COMPARTMENT

Products

PositionProduct
314SCREW
401WR55X30692 GE Refrigerator Main Control Board
402WR87X30875 GE Refrigerator R600 Dryer with Red Cap
403WR87X27227 GE Condenser Auxiliary Assembly
404COND AUX DRAIN TRAY
405WR87X31025 GE Refrigerator Compressor
408WR01X27222 GE Screw
409WR55X22042 GE Refrigerator PTC Starter
410WR09X27095 GE Refrigerator OLP
411WR01X27243 GE Refrigerator OL Protector Cover
412WR55X31027 GE Refrigerator 8uF Capacitor
413WR02X26260 GE Refrigerator Drain Tray
414WR01X27219 GE Refrigerator Main Cover Board
415WR23X25096 GE Refrigerator Power Cord
420WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
