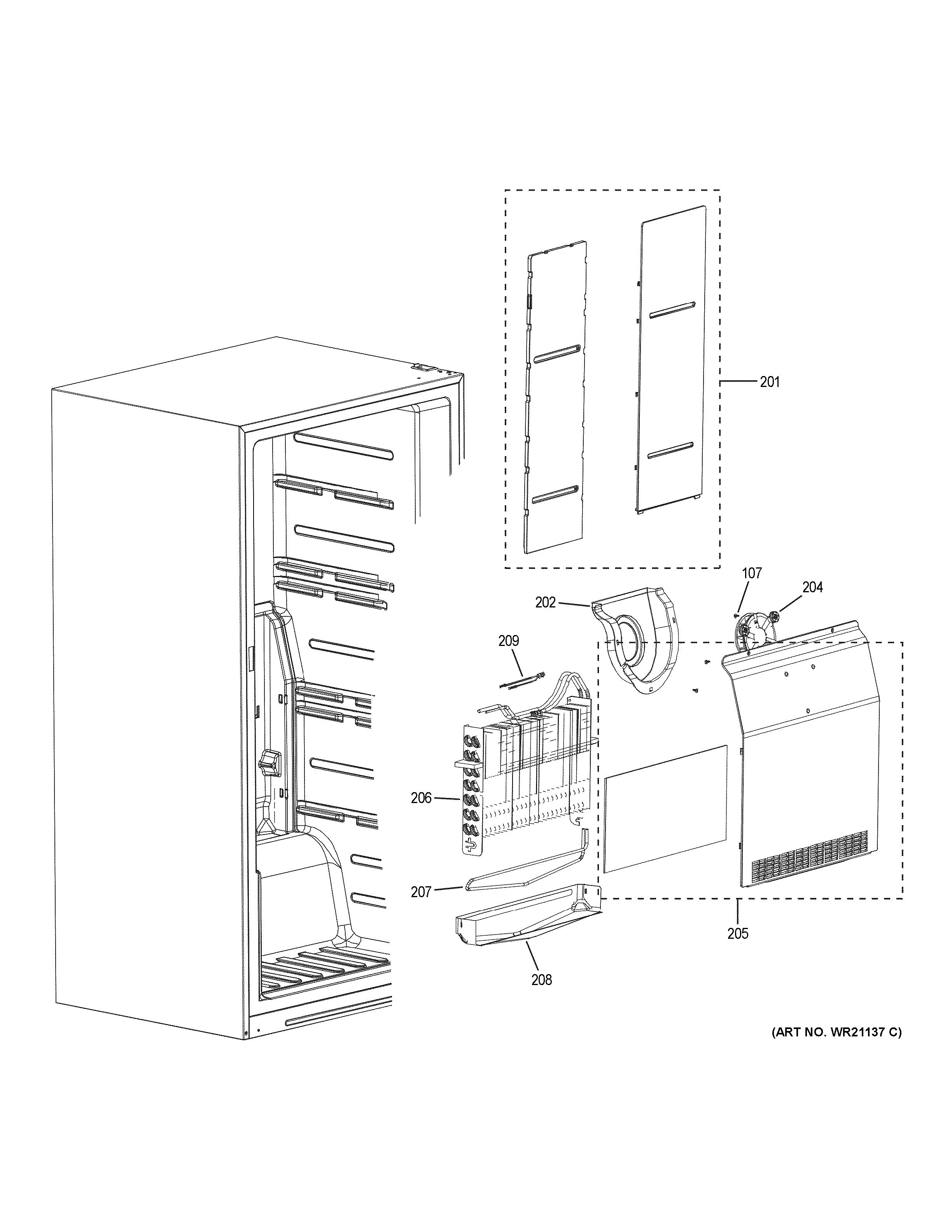

XUF21DMRAWW FREEZER SECTION

XUF21DMRAWW FREEZER SECTION

Written by

in

XUF21DMRAWW FREEZER SECTION

Products

PositionProduct
107SCREW
201WR14X27266 GE Air Tower Assembly
202WR14X27195 GE Refrigerator Shroud Evaporator Fan
204WR60X35365 GE Refrigerator Motor Evaporator Fan
205WR14X27593 GE Refrigerator Evaporator Cover Assembly 17/21"
206WR87X27258 GE Refrigerator Evaporator and Tube Assembly
207WR09X27257 GE Refrigerator Heater Def Asm
208TROUGH DRAIN
209WR09X27221 GE Refrigerator Defrost Thermostat
