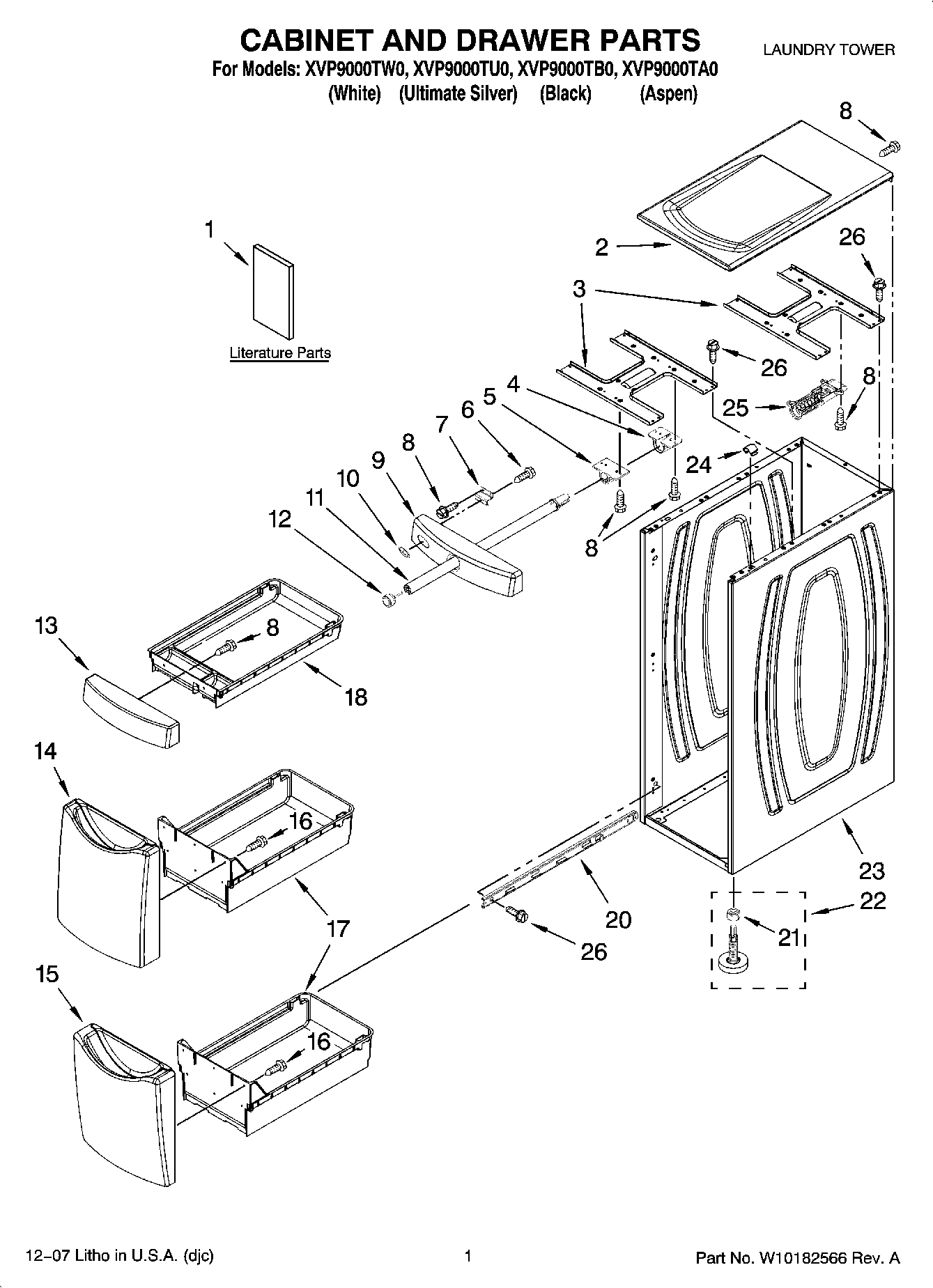

XVP9000TU0 01 – CABINET AND DRAWER PARTSadmin2025-04-26T11:19:13+00:00XVP9000TU0 01 – CABINET AND DRAWER PARTS
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| WPL W10157756 |
| 72032 Whirlpool Touch Up Paint Black |
| 285006 Whirlpool Spray |
| WPL ARI136095A |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 350938 Whirlpool Spray Gun |
| WPL 8212605 |
| 1 | Guide, Use & Care |
| 2 | Top |
| 2 | Top (Ultimate Silver) |
| 2 | Top (Black) |
| 2 | Top (Aspen) |
| 3 | Bracket, Top Support |
| 4 | BUSHING-SLEEVE (STOP) |
| 5 | Bushing, Sleeve Front |
| 6 | SCREW |
| 7 | Bracket, Pogo Front (2) |
| 8 | W11693756 Whirlpool Screw Assembly |
| 9 | Front, Pogo (Includes Illus. 10) (White) |
| 9 | Front, Pogo (Includes Illus. 10) (Aspen) |
| 9 | Front, Pogo (Includes Illus. 10) (Ultimate Silver) |
| 9 | Front, Pogo (Includes Illus. 10) (Black) |
| 10 | Medallion |
| 11 | Pogo Bar Assembly |
| 12 | END CAP |
| 13 | Front, Organizer Drawer (Ultimate Silver) |
| 13 | Front, Organizer Drawer (Black) |
| 13 | Front, Organizer Drawer (White) |
| 13 | Front, Organizer Drawer (Aspen) |
| 14 | Front, Middle Drawer (White) |
| 14 | Front, Middle Drawer (Black) |
| 14 | Front, Middle Drawer (Ultimate Silver) |
| 14 | Front, Middle Drawer (Aspen) |
| 15 | Front, Bottom Drawer (Aspen) |
| 15 | Front, Bottom Drawer (Ultimate Silver) |
| 15 | Front, Bottom Drawer (Black) |
| 15 | Front, Bottom Drawer (White) |
| 16 | WP3400806 Whirlpool Screw |
| 17 | Drawer Bin, Large (2) |
| 18 | Drawer Bin, (Small) |
| 20 | Slide, Assembly |
| 21 | WP3359452 Whirlpool Nut |
| 22 | WP8563585 Whirlpool Foot Assembly |
| 23 | Cabinet (Not Serviceable) |
| 24 | Clip, Top Lock |
| 25 | HOUSING ASSEMBLY |
| 26 | WP1163283 Whirlpool Air Conditioner Screw |
