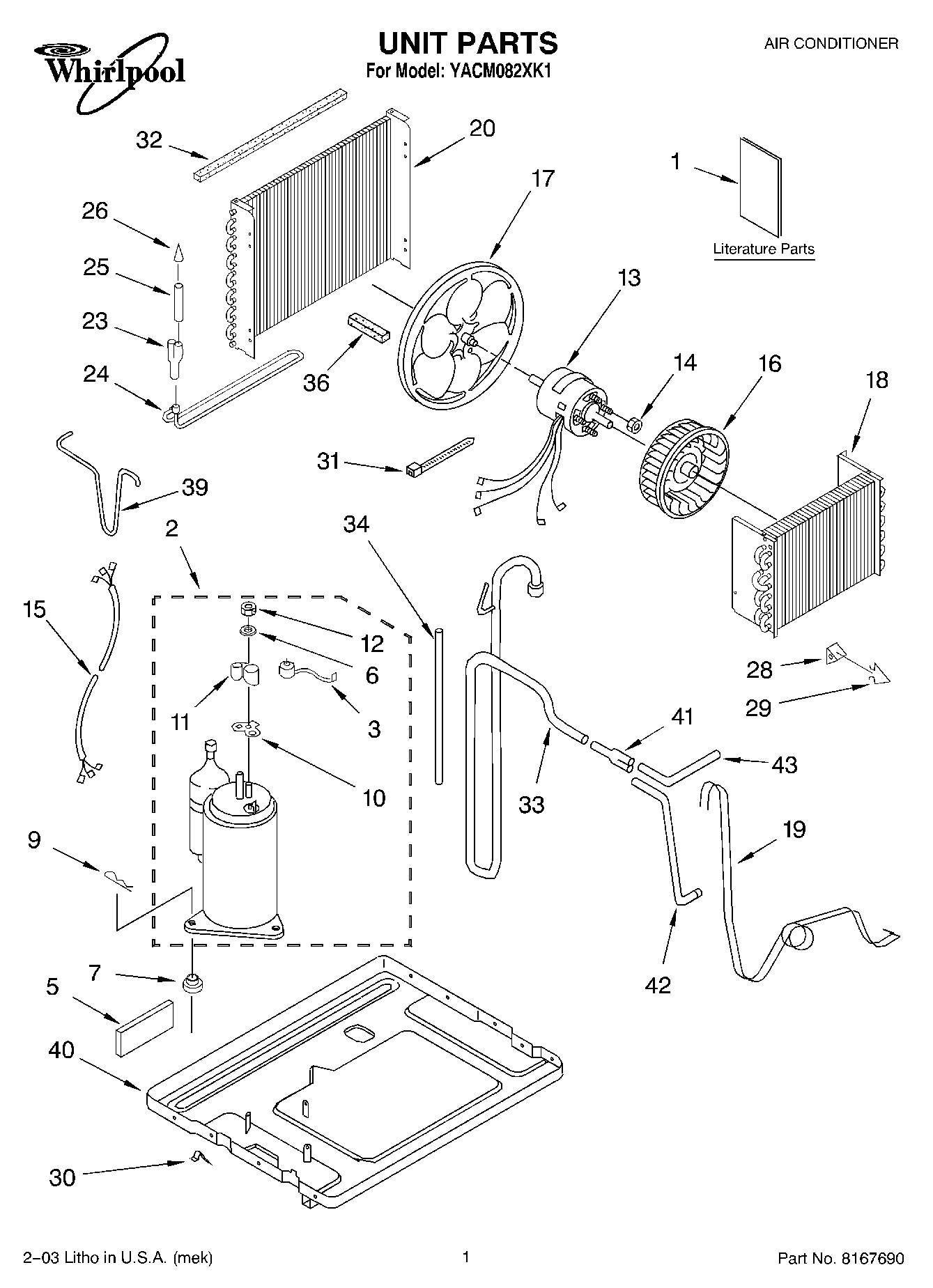

YACM082XK1 01 – UNIT PARTS

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram)
1	Energy Guide
1	Use & Care Guide (French)
1	Use & Care Guide
2	Compressor
3	WP1186661 Whirlpool Air Conditioner Overload Relay
5	Seal
6	Gasket
7	Grommet
9	Clip, Compressor
10	Gasket, Terminal Cover
11	Cover, Terminal
12	W10833054 Whirlpool Air Conditioner Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Wiring Harness, Compressor
16	Wheel, Blower
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
23	Tube, Flow Divider
24	Tube, Wet Loop
25	Tube, Outlet (Includes No. 26)
26	Strainer
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp (2)
31	WPW10339879 Whirlpool Wire Tie
32	Seal
33	Tube, Suction
34	Seal, Suction Tube Suction Tube
36	WP854334 Whirlpool Air Conditioner Sealing Strip
39	Tube, Discharge
40	Base
41	Tube, Flow Divider
42	Tube, Outlet (Bottom)
43	Tube, Outlet (Top)
43	REFRIGERANT CHARGE 10.75 oz.
