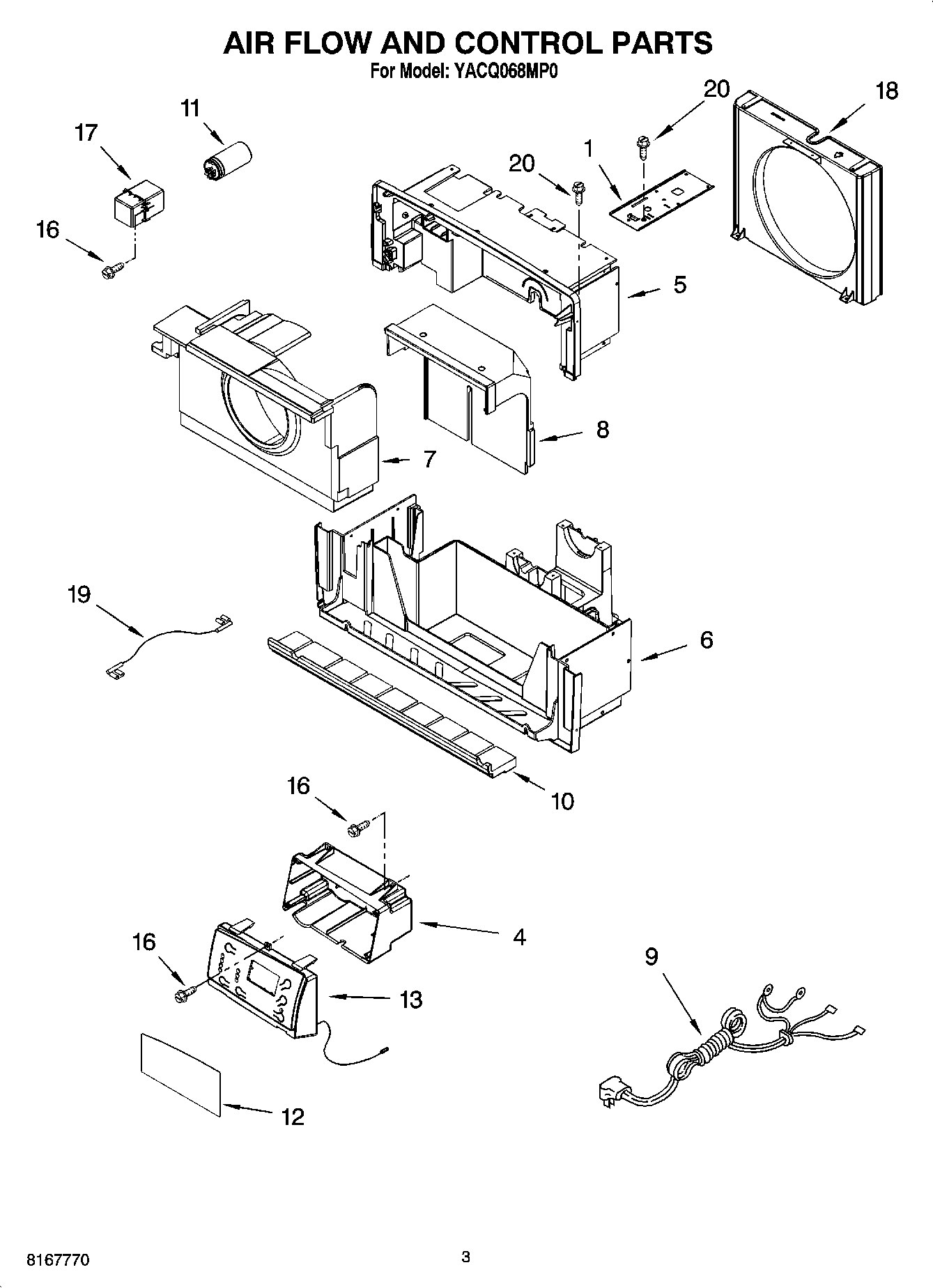

YACQ068MP0 02 – AIR FLOW AND CONTROL PARTS

YACQ068MP0 02 – AIR FLOW AND CONTROL PARTS

Written by

in

YACQ068MP0 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
1Support, Unit
4Control Panel, Rear
5Clamshell, Top
6Clamshell, Bottom
7Air Housing, Bottom
8Air Housing, Top
9Cord, Power
10Insulation, Drain Pan
11Capacitor
12Overlay
13Panel, Control Electronic
16Screw, 8-18 x 3/8
17Cap, Capacitor
18Shroud, Condenser
19Wire, Jumper
20Screw
