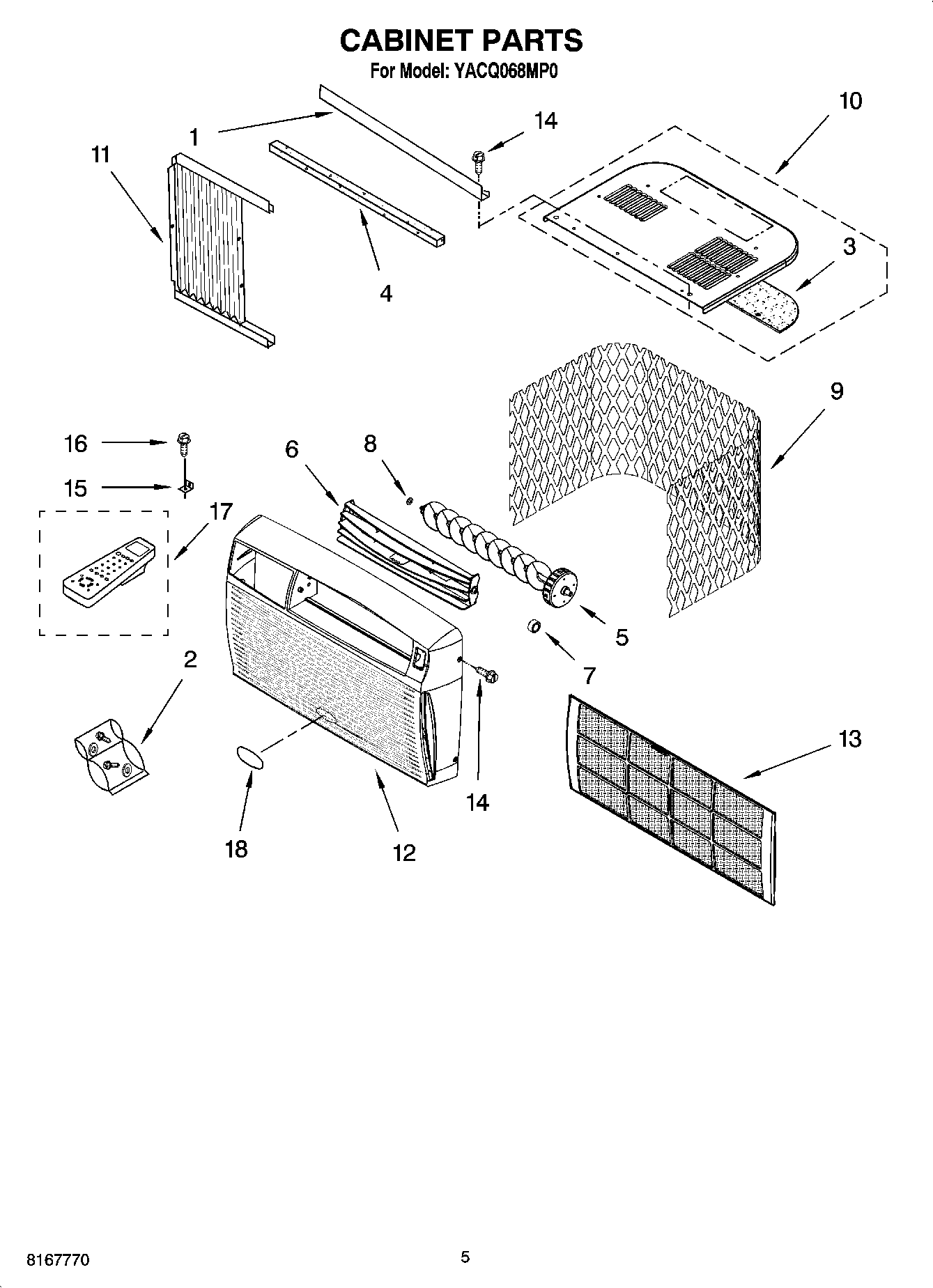

YACQ068MP0 03 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)admin2025-04-26T11:17:29+00:00YACQ068MP0 03 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)
Products
| Position | Product |
|---|
| 1 | Top Channel |
| 1 | WPL 799833 |
| 2 | No Drip Tape (For Sweating Tubes) |
| 2 | Bag, Accessory |
| 3 | Insulation, Top |
| 3 | TAPE, VINYL (3/4 X 108``) |
| 4 | Gasket, Meeting Rail |
| 4 | Oil, Turbine 1 Fl. Oz. |
| 5 | Oil, Turbine 8 Fl. Oz. |
| 5 | Louver Assembly, Vertical |
| 6 | Louver, Horizontal |
| 6 | VALVE, ACCESS (5/8``) |
| 6 | WP978025 Whirlpool Refrigerator Valve |
| 6 | 876764 Whirlpool Refrigerator Primary Valve |
| 6 | 978026 Whirlpool Refrigerator Primary Valve |
| 6 | 978027 Whirlpool Refrigerator Primary Valve |
| 6 | VALVE, ACCESS (1/2``) |
| 6 | 978030 Whirlpool Refrigerator Valve |
| 7 | Seal, Ring (Access Valve) (20 - Pack) |
| 7 | Bushing, Horizontal Louver |
| 8 | WASHER |
| 8 | Wire, 25` Roll (Black 14 Ga.) |
| 8 | Wire, 25`` Roll (White 12 GA.) |
| 8 | Wire, 25`` Roll (Black 12 GA.) |
| 8 | Wire, 25` Roll (Red 12 Ga.) |
| 8 | Wire, 25` Roll (Blue 16 Ga.) |
| 8 | Wire, 25` Roll (Red 14 Ga.) |
| 8 | Wire, 25`` Roll (White 14 GA.) |
| 9 | Grille, Rear |
| 9 | Adhesive, Insulation (24 Oz. Spray) |
| 10 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 10 | Cover, Top |
| 11 | Curtain Assembly (Left Side) |
| 11 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
| 11 | Curtain Assembly (Right Side) |
| 12 | Front, Cabinet |
| 12 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 13 | 4318168 Whirlpool Refrigerator Primary Permagum Sealer |
| 13 | Filter, Woven |
| 14 | Cover, Winter (19``x12``x14``) |
| 14 | Cover, Winter (28 x 19 x 31``) |
| 14 | 484184 Whirlpool Air Conditioner Winter Cover |
| 14 | Cover, Winter (27 x 19 x 6 to 27``) |
| 14 | Screw |
| 15 | Bracket |
| 15 | Retainer, Cord (Winter Cover) |
| 16 | Screw, Wood 8-15 x .750 |
| 17 | Control, Remote |
| 18 | Condensate, Drain Kit |
| 18 | NAMEPLATE |
| 18 | WPL ARI166440A |
| 18 | WPL ARI166441A |
