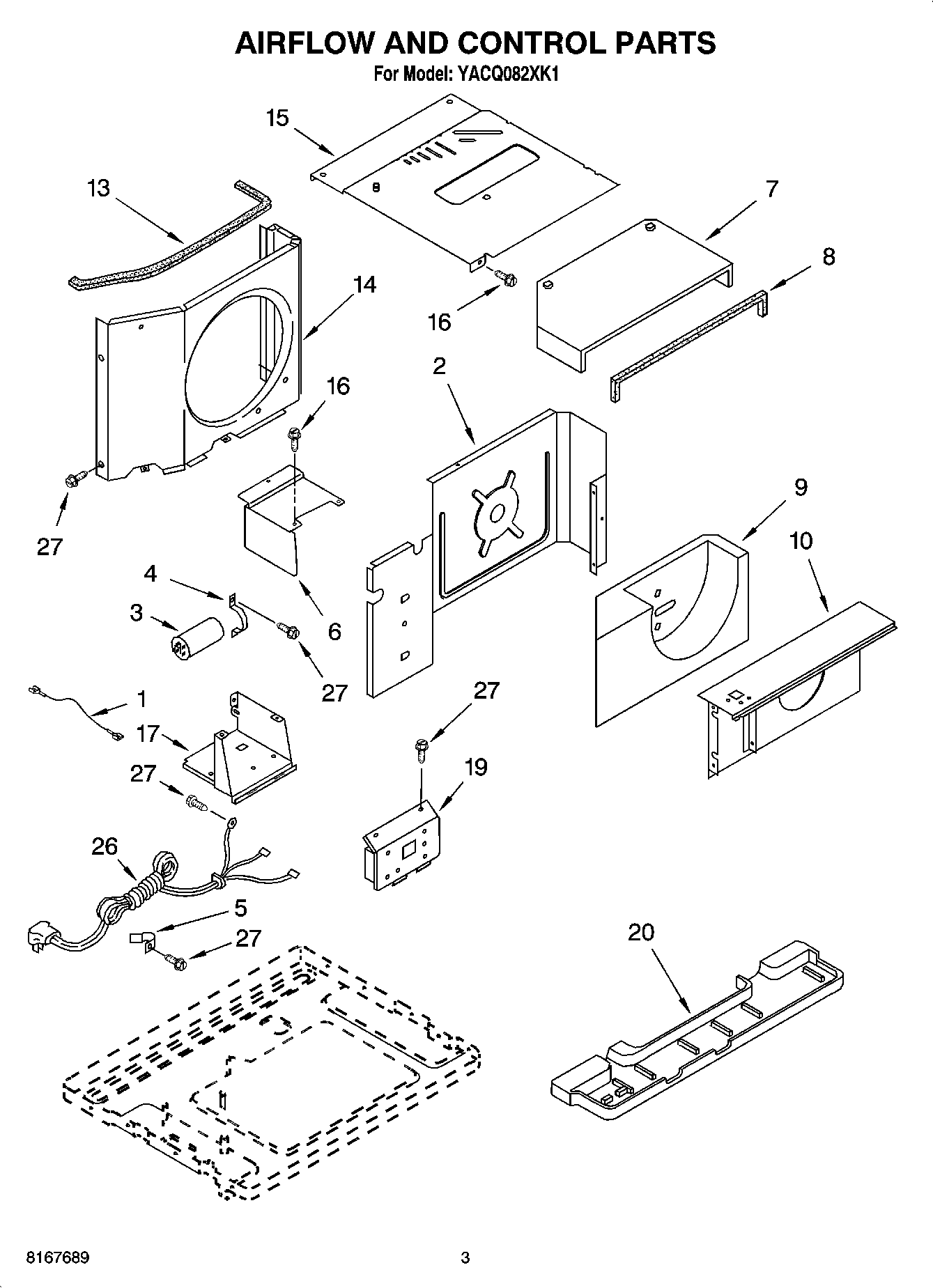

YACQ082XK1 02 – AIR FLOW AND CONTROL PARTS

YACQ082XK1 02 – AIR FLOW AND CONTROL PARTS

Written by

in

YACQ082XK1 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
1Wire, Jumper
2Wall, Dividing
3Capacitor
4Bracket, Capacitor
5549193 Whirlpool Refrigerator Power Clamp
6Cover, Control Box
7Hood, Air Housing
8WP854334 Whirlpool Air Conditioner Sealing Strip
9Housing, Air
10Shroud, Evaporator
13Seal, Condenser Shroud
14Shroud, Condenser
15Cover, Unit
16Screw, 8 x 3/8
17Box, Control
19Control, Electronic
20Pan, Drain
26Cable, Appliance
27Screw 8-18 x .295
